WMGMPU06

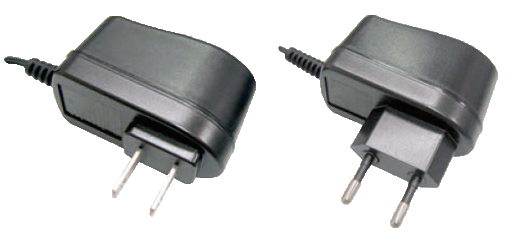

The WMGMPU06 series of medical AC/DC wall mount power supplies provides up to 6 Watts of output power. This series consists of single output models ranging from 5VDC to 24VDC with a universal input voltage range of 100-240VAC. The WMGMPU06 series DoE (V) and EU ErP/CoC (4) compliant and has CE: EN60601-1-2 approvals. United States and Europe AC plug types are available and several output connector options are also available. Please contact the factory for ordering details.

• RoHS Compliant • 6 Watts Output Power • DoE (V) & EU ErP/CoC (4) • 5656VDC Withstand Voltage • Up to 74% High Efficiency • No-Load Power Consumption < 0.3W • 100~240VAC Universal Input Voltage Range • Single Outputs Ranging from 5VDC to 24VDC • United States and Europe AC Plug Types Available • Optional Output Connectors Available • Meets CE: EN60601-1-2
Part Number Setup:
x: "U" for US plug or "E" for EU plug
Example:
WMGMPU06U-1= 5~6VDC Output Model with US plug
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case Size
WMGMPU06X-11 Input Voltage: 100~240 Output Voltage: 5 Output Current: 1A Output Power (W): 5 No. Outputs: S Case: Wall Mount Size: 2.6" x 1.26" x 1.67" Get a Quote
WMGMPU06X-1 Input Voltage: 100~240 Output Voltage: 5~6 Output Current: 1.20A Output Power (W): 6 No. Outputs: S Case: Wall Mount Size: 2.6" x 1.26" x 1.67" Get a Quote
WMGMPU06X-1-1 Input Voltage: 100~240 Output Voltage: 6~8 Output Current: 1.00A Output Power (W): 6 No. Outputs: S Case: Wall Mount Size: 2.6" x 1.26" x 1.67" Get a Quote
WMGMPU06X-2 Input Voltage: 100~240 Output Voltage: 8~11 Output Current: 0.75A Output Power (W): 6 No. Outputs: S Case: Wall Mount Size: 2.6" x 1.26" x 1.67" Get a Quote
WMGMPU06X-3 Input Voltage: 100~240 Output Voltage: 11~13 Output Current: 0.55A Output Power (W): 6 No. Outputs: S Case: Wall Mount Size: 2.6" x 1.26" x 1.67" Get a Quote
WMGMPU06X-4 Input Voltage: 100~240 Output Voltage: 13~16 Output Current: 0.46A Output Power (W): 6 No. Outputs: S Case: Wall Mount Size: 2.6" x 1.26" x 1.67" Get a Quote
WMGMPU06X-5 Input Voltage: 100~240 Output Voltage: 16~21 Output Current: 0.38A Output Power (W): 6 No. Outputs: S Case: Wall Mount Size: 2.6" x 1.26" x 1.67" Get a Quote
WMGMPU06X-6 Input Voltage: 100~240 Output Voltage: 21~24 Output Current: 0.29A Output Power (W): 6 No. Outputs: S Case: Wall Mount Size: 2.6" x 1.26" x 1.67" Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 100~240
Input Frequency: 47 to 63Hz
Output
Output Voltage: 5, 5~6, 6~8, 8~11, 11~13, 13~16, 16~21, 21~24
Output Current: 1.20A, 1.00A, 0.75A, 0.55A, 0.46A, 0.38A, 0.29A, 0.26
Output Power (Watts): 5, 6
General
Efficiency: Up to 74%
Environmental
Operating Temperature: 0 to 40ºC
Physical
Weight: 2.5~3.5oz (70~100g)

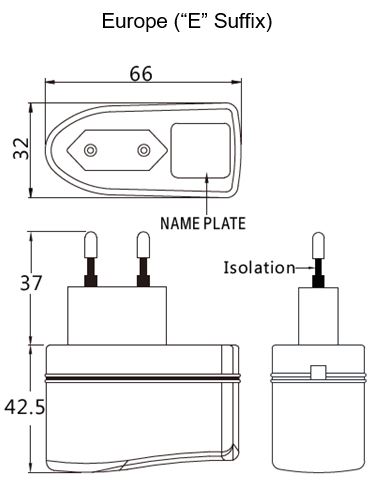

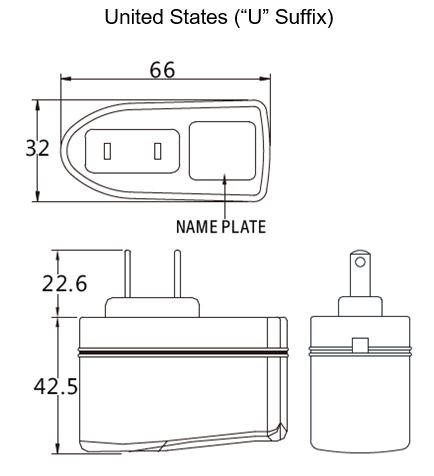

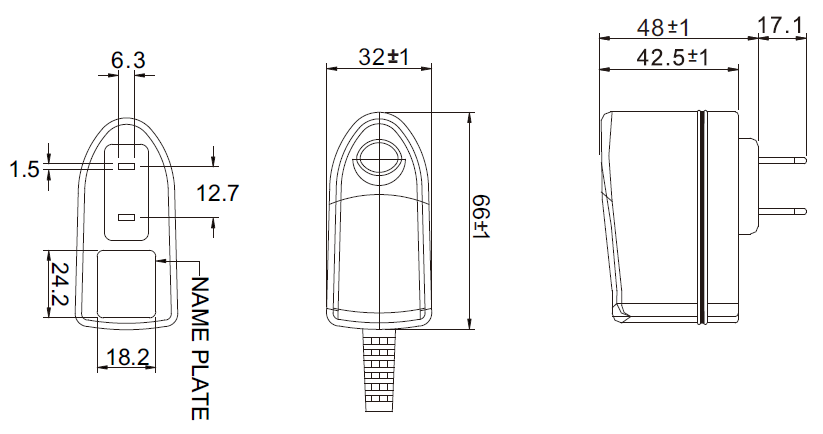

Dimensions: United States plug type: 2.50 x 1.26 x 2.56 inches (66.0 x 32.0 x 65.1 mm)
United Kingdom plug type: 2.50 x 1.26 x 3.13 inches (66.0 x 32.0 x 79.5 mm)
Notes & safety
Notes: 1. The “x” in the model number represents the type of plug: “U” for United States type or “E” for Europe type.
2. Avg. Efficiency: Averages the efficiency at 25, 50, 75, and 100% of max. rated output current.
3. Several different output connectors are available for this series. Please call factory for ordering details.
4. This product is Listed to applicable standards and requirements by UL.
*Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL, TUV/GS, TUV/PSE
TUV Efficiency Level: TUV/GS, TUV/PSE
Energy Star Compliance: V
