WMEM1024

The WMEM1024 series of AC/DC wall mount power supplies provides up to 36 watts of output power in a 2.98” x 1.69” x 1.19” package. This series consists of single output models ranging from 5VDC to 48VDC with an input voltage range of 90~264VAC. This series is RoHS and WEEE compliant and meets CEC Level V, VI requirements. This series also has UL/cUL 60601-1 and TUV/SUD EN/IEC 60601-1: 3rd edition medical approvals. These supplies are protected against over voltage and short circuit conditions. Models are available in United States (U suffix), United Kingdom (K suffix), Europe (E suffix), and Australia (A suffix) types.

• RoHS & WEEE Compliant • 90-264VAC Input Voltage Range • 16~36 Watts Output Power • Over Voltage & Short Circuit Protection • 0 to +40°C Operating Temperature Range • Single Outputs Ranging from 5VDC to 48VDC • Several Output Connector Options Available • CEC Level V, VI Compliant • CB, CE, FCC Approvals • UL/cUL 60601-1: 3rd Edition & TUV/SUD EN/IEC 60601-1: 3rd Edition Medical Approvals • United States, United Kingdom, Europe, and Australia Plug Types Available
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
WMEM1024Ax Input Voltage: 100~240 Output Voltage: 5~8 Output Current: 2.0A Output Power (W): 16 No. Outputs: S Case: Wall Mount Get a Quote
WMEM1024Dx Input Voltage: 100~240 Output Voltage: 9~11 Output Current: 1.5A Output Power (W): 18 No. Outputs: S Case: Wall Mount Get a Quote
WMEM1024Bx Input Voltage: 100~240 Output Voltage: 5~8 Output Current: 3.0A Output Power (W): 20 No. Outputs: S Case: Wall Mount Get a Quote
WMEM1024Gx Input Voltage: 100~240 Output Voltage: 12~17 Output Current: 1.66A Output Power (W): 20 No. Outputs: S Case: Wall Mount Get a Quote
WMEM1024Mx Input Voltage: 100~240 Output Voltage: 36~48 Output Current: 0.55A Output Power (W): 20 No. Outputs: S Case: Wall Mount Get a Quote
WMEM1024Cx Input Voltage: 100~240 Output Voltage: 5~8 Output Current: 4.0A Output Power (W): 24 No. Outputs: S Case: Wall Mount Get a Quote
WMEM1024Ex Input Voltage: 100~240 Output Voltage: 9~11 Output Current: 2.0A Output Power (W): 24 No. Outputs: S Case: Wall Mount Get a Quote
WMEM1024Jx Input Voltage: 100~240 Output Voltage: 18~24 Output Current: 1.33A Output Power (W): 24 No. Outputs: S Case: Wall Mount Get a Quote
WMEM1024Qx Input Voltage: 100~240 Output Voltage: 12 Output Current: 2.0A Output Power (W): 24 No. Outputs: S Case: Wall Mount Get a Quote
WMEM1024Fx Input Voltage: 100~240 Output Voltage: 9~11 Output Current: 3.0A Output Power (W): 27 No. Outputs: S Case: Wall Mount Get a Quote
WMEM1024Hx Input Voltage: 100~240 Output Voltage: 12~17 Output Current: 2.5A Output Power (W): 30 No. Outputs: S Case: Wall Mount Get a Quote
WMEM1024Kx Input Voltage: 100~240 Output Voltage: 18~24 Output Current: 1.66A Output Power (W): 30 No. Outputs: S Case: Wall Mount Get a Quote
WMEM1024Nx Input Voltage: 100~240 Output Voltage: 36~48 Output Current: 0.83A Output Power (W): 30 No. Outputs: S Case: Wall Mount Get a Quote
WMEM1024Px Input Voltage: 100~240 Output Voltage: 12 Output Current: 3.0A Output Power (W): 36 No. Outputs: S Case: Wall Mount Get a Quote
WMEM1024Rx Input Voltage: 100~240 Output Voltage: 24 Output Current: 1.5A Output Power (W): 36 No. Outputs: S Case: Wall Mount Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 100~240
Input Frequency: 47-63Hz
Output
Output Voltage: 5~8, 9~11, 12, 12~17, 18~24, 24, 36~48
Output Current: 2.0A, 2.5A, 3.0A, 4.0A, 1.5A, 1.66A, 1.33A, 0.55A, 0.83A
Output Power (Watts): 16, 18, 20, 24, 27, 30, 36
Short Circuit Protection: Automatic Recovery
Over Voltage Protection: Automatic Recovery
General
Isolation: 4000VAC for 2 seconds (primary to secondary)
Environmental
Operating Temperature: 0 to 40°C
Storage Temperature: -20 to 85°C
Physical
Weight: 7.05oz (200g)

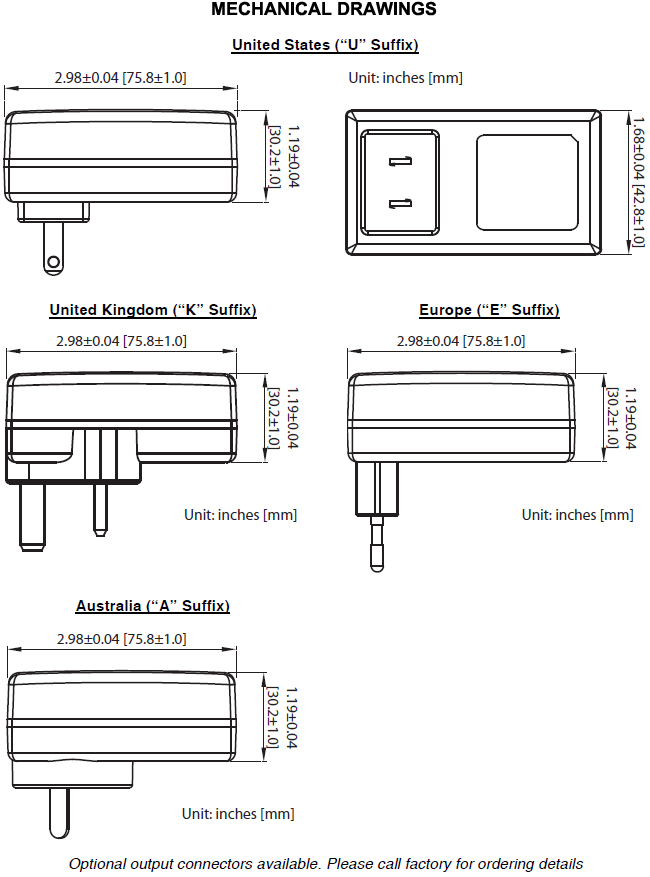

Dimensions: 2.98" x 1.69" x 1.19" (75.8 x 42.8 x 30.2 mm)
Notes & safety
Notes: 1. The “x” in the model number represents the type of plug: “x” can be “U” for United States type, “K” for United Kingdom type, “E” for Europe type, or “A” for Australia type.
2. The output voltage is specified as a range (Ex: 36~48 VDC); the customer must specify what they want the voltage set at.
3. Ripple and Noise is measured at nominal line and full load with 20MHz bandwidth and a 0.1µF ceramic capacitor and 47µF aluminum capacitors in parallel across the output.
4. Optional output connectors are available. Please call factory for ordering details.
Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL/cUL 60601-1: 3rd Edition, TUV/SUD EN/IEC 60601-1: 3rd Edition, CB, CE, FCC
RoHS Compliance: Yes
TUV Efficiency Level: TUV/SUD EN/IEC 60601-1: 3rd edition
Energy Star Compliance: Level V, VI
