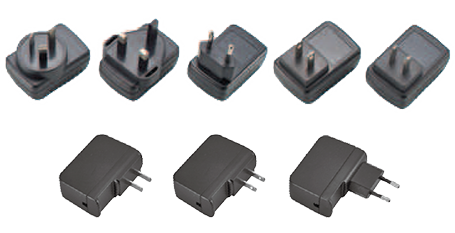

WMEM1019
The WMEM1019 series of AC/DC wall mount power supplies offers up to 24 watts of output power in a 2.36” x 1.54” x 1.02” case size. This series consists of single output and an input voltage range of 100-240VAC. Each model in this series is RoHS and DOE level VI compliant and has over voltage, over current, and short circuit protection. This series also has UL/cUL, UL60601, CB 60601, CE, and FCC safety approvals. Please call factory for order details.
• Input Voltage Range of 100-240VAC
• RoHS Compliant
• DoE Level VI Compliant
• USA, EU, UK, SAA, and China Plugs Available
• Strain Relief Output Type
• Over Voltage, Over Current, and Short Circuit Protection
• UL/cUL, UL60601, CB 60601, CE, and FCC Safety Approvals
Part Number Setup:
X: “V” for Vertical or “H” for Horizontal.
Y: “U” for USA Plug, “E” for EU Plug, “K” for UK Plug, “A” for SAA Plug, or “C” for China Plug. Please note that UK and SAA plugs are not available for Horizontal case.
X: “V” for Vertical or “H” for Horizontal.
Y: “U” for USA Plug, “E” for EU Plug, “K” for UK Plug, “A” for SAA Plug, or “C” for China Plug. Please note that UK and SAA plugs are not available for Horizontal case.
Example:
WMEM1019AVU = 5~8VDC Model with Vertical Case and USA Plug
WMEM1019AVU = 5~8VDC Model with Vertical Case and USA Plug
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| WMEM1019Axy | Input Voltage: 100~240 | Output Voltage: 5~8 | Output Current: 3.0A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount | Size: See Series Page | Get a Quote |
| WMEM1019Gxy | Input Voltage: 100~240 | Output Voltage: 5~8 | Output Current: 3.0A | Output Power (W): 18 | No. Outputs: S | Case: Wall Mount | Size: See Series Page | Get a Quote |
| WMEM1019Bxy | Input Voltage: 100~240 | Output Voltage: 9~13 | Output Current: 2.0A | Output Power (W): 20 | No. Outputs: S | Case: Wall Mount | Size: See Series Page | Get a Quote |
| WMEM1019Cxy | Input Voltage: 100~240 | Output Voltage: 14~19 | Output Current: 1.42A | Output Power (W): 20 | No. Outputs: S | Case: Wall Mount | Size: See Series Page | Get a Quote |
| WMEM1019Dxy | Input Voltage: 100~240 | Output Voltage: 20~27 | Output Current: 1.0A | Output Power (W): 20 | No. Outputs: S | Case: Wall Mount | Size: See Series Page | Get a Quote |
| WMEM1019Exy | Input Voltage: 100~240 | Output Voltage: 28~35 | Output Current: 0.71A | Output Power (W): 20 | No. Outputs: S | Case: Wall Mount | Size: See Series Page | Get a Quote |
| WMEM1019Fxy | Input Voltage: 100~240 | Output Voltage: 36~48 | Output Current: 0.55A | Output Power (W): 20 | No. Outputs: S | Case: Wall Mount | Size: See Series Page | Get a Quote |
| WMEM1019Hxy | Input Voltage: 100~240 | Output Voltage: 9~13 | Output Current: 2.0A | Output Power (W): 24 | No. Outputs: S | Case: Wall Mount | Size: See Series Page | Get a Quote |
| WMEM1019Jxy | Input Voltage: 100~240 | Output Voltage: 14~19 | Output Current: 1.71A | Output Power (W): 24 | No. Outputs: S | Case: Wall Mount | Size: See Series Page | Get a Quote |
| WMEM1019Kxy | Input Voltage: 100~240 | Output Voltage: 20~27 | Output Current: 1.2A | Output Power (W): 24 | No. Outputs: S | Case: Wall Mount | Size: See Series Page | Get a Quote |
| WMEM1019Mxy | Input Voltage: 100~240 | Output Voltage: 28~35 | Output Current: 0.85A | Output Power (W): 24 | No. Outputs: S | Case: Wall Mount | Size: See Series Page | Get a Quote |
| WMEM1019Nxy | Input Voltage: 100~240 | Output Voltage: 36~48 | Output Current: 0.66A | Output Power (W): 24 | No. Outputs: S | Case: Wall Mount | Size: See Series Page | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 100~240 |
| Output | |
| Output Voltage: | 5~8, 9~13, 14~19, 20~27, 28~35, 36~48 |
| Output Current: | 0.55A, 0.71A, 1A. 1.42A, 2A, 3A |
| Output Power (Watts): | 15, 18, 20, 24 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | Automatic Recovery |
| General | |
| Environmental | |
| Operating Temperature: | 0 to 40ºC |
| Storage Temperature: | -20 to 85ºC |
| Physical | |
| Weight: | 4.23oz (120g) |

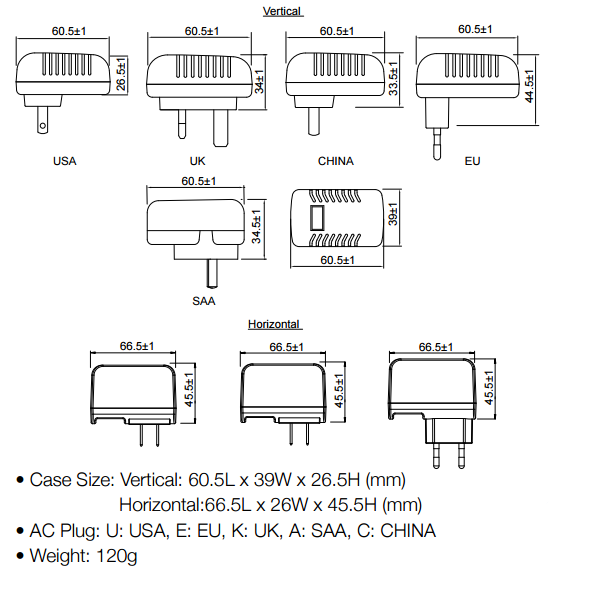

| Dimensions: | Vertical Case: 2.36in x 1.54in x 1.02in (60.5mm x 39mm x 26.5mm) Horizontal Case: 2.62in x 1.02in x 1.79in (66.5mm x 26mm x 45.5mm) |
| Notes & safety | |
| Notes: | 1. “X” in model number indicates case direction. “X” can either be “V” for Vertical or “H” for Horizontal. “Y” in model number indicates plug type. “Y” can either be “U” for USA plug, “E” for EU plug, “K” for UK plug, “A” for SAA plug, or “C” for China plug. Please note that UK and SAA plugs are not available for Horizontal case. 2. Line regulation is defined by changing ±10% of input voltage from nominal line at rated load. 3. Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.1uF ceramic capacitor & parallel with 47uF aluminum capacitor at full load and nominal line. 4. Please note there is a 500pc min. production order required. 5. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/cUL, UL60601, CB 60601, CE, FCC |
