WMEA1045
The WMEA1045 series of AC/DC wall mount power supplies offers up to 45 watts of output power in a 3.94in x 1.57in x 1.22in package. This series consists of single output models with a wide input voltage range of 100 to 240VAC. Each model in this series is Level VI compliant, has LED indication, and over voltage, over current, over temperature, and short circuit protection. Four plug types are available for this series: US plug, EU plug, UK plug, and SAA plug and the series has UL/cUL 60950-1, TUV EN 60950-1/EN 62368-1, CB IEC 60950-1, FCC Part 15B safety approvals.
• Wide Input Range of 100~240VAC
• USB Type C
• USB Power Delivery Function
• LED Indication
• Energy Efficiency Level VI
• No Load Power Consumption ≤0.1W
• 500pc MOQ for Production
• Over Voltage, Over Current, Short Circuit and (Optional) Over Temperature Protection
• UL/cUL 60950-1, TUV EN 60950-1/EN 62368-1, CB IEC 60950-1, FCC Part 15B Safety Approvals
• Complies with CE EMC (EN 55032+EN 55035)
Part Number Setup:
X: “U” for USA Plug, “E” for EU Plug, “K” for UK Plug, or “A” for SAA Plug
X: “U” for USA Plug, “E” for EU Plug, “K” for UK Plug, or “A” for SAA Plug
Example:
WMEA1045-3015K = 15VDC Model with UK Plug
WMEA1045-3015K = 15VDC Model with UK Plug
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| WMEA1045-305x | Input Voltage: 100~240 | Output Voltage: 5 | Output Current: 3A | Output Power (W): 30 | No. Outputs: S | Case: Wall Mount | Size: 3.94" x 1.57" x 1.22" | Get a Quote |
| WMEA1045-309x | Input Voltage: 100~240 | Output Voltage: 9 | Output Current: 3A | Output Power (W): 30 | No. Outputs: S | Case: Wall Mount | Size: 3.94" x 1.57" x 1.22" | Get a Quote |
| WMEA1045-3015x | Input Voltage: 100~240 | Output Voltage: 15 | Output Current: 2A | Output Power (W): 30 | No. Outputs: S | Case: Wall Mount | Size: 3.94" x 1.57" x 1.22" | Get a Quote |
| WMEA1045-3020x | Input Voltage: 100~240 | Output Voltage: 20 | Output Current: 1.5A | Output Power (W): 30 | No. Outputs: S | Case: Wall Mount | Size: 3.94" x 1.57" x 1.22" | Get a Quote |
| WMEA1045-365x | Input Voltage: 100~240 | Output Voltage: 5 | Output Current: 3A | Output Power (W): 36 | No. Outputs: S | Case: Wall Mount | Size: 3.94" x 1.57" x 1.22" | Get a Quote |
| WMEA1045-369x | Input Voltage: 100~240 | Output Voltage: 9 | Output Current: 3A | Output Power (W): 36 | No. Outputs: S | Case: Wall Mount | Size: 3.94" x 1.57" x 1.22" | Get a Quote |
| WMEA1045-3615x | Input Voltage: 100~240 | Output Voltage: 15 | Output Current: 2.4A | Output Power (W): 36 | No. Outputs: S | Case: Wall Mount | Size: 3.94" x 1.57" x 1.22" | Get a Quote |
| WMEA1045-3620x | Input Voltage: 100~240 | Output Voltage: 20 | Output Current: 1.8A | Output Power (W): 36 | No. Outputs: S | Case: Wall Mount | Size: 3.94" x 1.57" x 1.22" | Get a Quote |
| WMEA1045-455x | Input Voltage: 100~240 | Output Voltage: 5 | Output Current: 3A | Output Power (W): 45 | No. Outputs: S | Case: Wall Mount | Size: 3.94" x 1.57" x 1.22" | Get a Quote |
| WMEA1045-459x | Input Voltage: 100~240 | Output Voltage: 9 | Output Current: 3A | Output Power (W): 45 | No. Outputs: S | Case: Wall Mount | Size: 3.94" x 1.57" x 1.22" | Get a Quote |
| WMEA1045-4515x | Input Voltage: 100~240 | Output Voltage: 15 | Output Current: 3A | Output Power (W): 45 | No. Outputs: S | Case: Wall Mount | Size: 3.94" x 1.57" x 1.22" | Get a Quote |
| WMEA1045-4520x | Input Voltage: 100~240 | Output Voltage: 20 | Output Current: 2.25A | Output Power (W): 45 | No. Outputs: S | Case: Wall Mount | Size: 3.94" x 1.57" x 1.22" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 100~240 |
| Input Frequency: | 50 to 60Hz |
| Output | |
| Output Voltage: | 5, 9, 12, 15, 20 |
| Output Current: | 1.5A, 1.8A, 2A, 2.25A, 2.4A, 3A |
| Output Power (Watts): | 30, 36, 45 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | Automatic Recovery |
| Thermal Protection: | Optional |
| General | |
| Environmental | |
| Operating Temperature: | -20 to 40ºC |
| Storage Temperature: | -20 to 85ºC |
| Physical | |
| Weight: | 7.76oz (220g) |

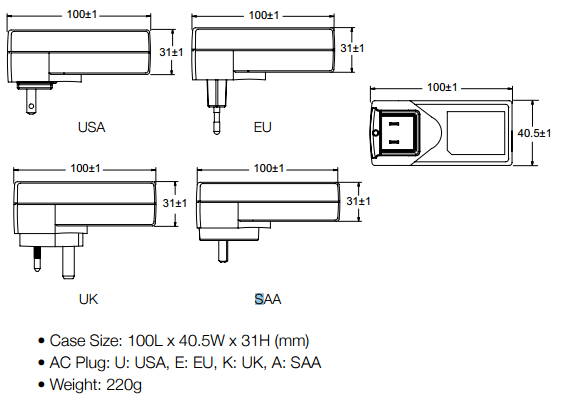

| Dimensions: | 3.94in x 1.57in x 1.22in (100mm x 40.5mm x 31mm) |
| Notes & safety | |
| Notes: | 1. “X” in model number indicates plug type. “X” can either “U” for USA plug, “E” for EU plug, “K” for UK plug, or “A” for SAA plug. 2. Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.1uf ceramic capacitor & parallel with 47uF aluminum capacitor at full load and nominal line. 3. Line regulation is defined by changing ±10% of input voltage from nominal line at rated load. 4. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/cUL 60950-1, TUV EN 60950-1/EN 62368-1, CB IEC 60950-1, FCC Part 15B |
| RoHS Compliance: | Yes |
| TUV Efficiency Level: | TUV EN 60950-1/EN 62368-1 |
| Energy Star Compliance: | Level VI |
