WMEA1030
The WMEA1030 series of AC/DC wall mount power supplies provides up to 30 watts of output power. All models have a single output and an input voltage range of 90~264VAC. This series is CEC compliant (optional), RoHS compliant, and has over voltage and short circuit protection. Models are available in United States (US), United Kingdom (UK), Europe (EU), and Australia (AUS) types.
● Single Output
● RoHS Compliance
● MTBF: 50,000 Hours
● CEC Compliance (Optional)
● Models come in US, UK, EU, AUS, and C Types
● Over Voltage and Short Circuit Protective Installation
● Class II UL60950 (LPS) Equivalent to UL1030 Class II
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| WMEA1030AU | Input Voltage: 90~264 | Output Voltage: 5~8 | Output Current: 3.13 A | Output Power (W): 25 | No. Outputs: S | Case: Wall Mount | Size: 3.94" × 1.59" × 1.22" | Get a Quote |
| WMEA1030AE | Input Voltage: 90~264 | Output Voltage: 5~8 | Output Current: 3.5A | Output Power (W): 25 | No. Outputs: S | Case: Wall Mount | Size: 3.94" × 1.59" × 1.22" | Get a Quote |
| WMEA1030AK | Input Voltage: 90~264 | Output Voltage: 5~8 | Output Current: 3.5A | Output Power (W): 25 | No. Outputs: S | Case: Wall Mount | Size: 3.94" × 1.59" × 1.22" | Get a Quote |
| WMEA1030AC | Input Voltage: 90~264 | Output Voltage: 5~8 | Output Current: 3.5A | Output Power (W): 25 | No. Outputs: S | Case: Wall Mount | Size: 3.94" × 1.59" × 1.22" | Get a Quote |
| WMEA1030AA | Input Voltage: 90~264 | Output Voltage: 5~8 | Output Current: 3.5A | Output Power (W): 25 | No. Outputs: S | Case: Wall Mount | Size: 3.94" × 1.59" × 1.22" | Get a Quote |
| WMEA1030CU | Input Voltage: 90~264 | Output Voltage: 13~20 | Output Current: 1.5 A | Output Power (W): 30 | No. Outputs: S | Case: Wall Mount | Size: 3.94" × 1.59" × 1.22" | Get a Quote |
| WMEA1030DU | Input Voltage: 90~264 | Output Voltage: 21~35 | Output Current: 1.42A | Output Power (W): 30 | No. Outputs: S | Case: Wall Mount | Size: 3.94" × 1.59" × 1.22" | Get a Quote |
| WMEA1030U | Input Voltage: 90~264 | Output Voltage: 9~12 | Output Current: 2.5 A | Output Power (W): 30 | No. Outputs: S | Case: Wall Mount | Size: 3.94" × 1.59" × 1.22" | Get a Quote |
| WMEA1030K | Input Voltage: 90~264 | Output Voltage: 9~12 | Output Current: 3A | Output Power (W): 30 | No. Outputs: S | Case: Wall Mount | Size: 3.94" × 1.59" × 1.22" | Get a Quote |
| WMEA1030A | Input Voltage: 90~264 | Output Voltage: 9~12 | Output Current: 3A | Output Power (W): 30 | No. Outputs: S | Case: Wall Mount | Size: 3.94" × 1.59" × 1.22" | Get a Quote |
| WMEA1030C | Input Voltage: 90~264 | Output Voltage: 9~12 | Output Current: 3A | Output Power (W): 30 | No. Outputs: S | Case: Wall Mount | Size: 3.94" × 1.59" × 1.22" | Get a Quote |
| WMEA1030E | Input Voltage: 90~264 | Output Voltage: 9~12 | Output Current: 3A | Output Power (W): 30 | No. Outputs: S | Case: Wall Mount | Size: 3.94" × 1.59" × 1.22" | Get a Quote |
| WMEA1030CE | Input Voltage: 90~264 | Output Voltage: 13~20 | Output Current: 2.3A | Output Power (W): 30 | No. Outputs: S | Case: Wall Mount | Size: 3.94" × 1.59" × 1.22" | Get a Quote |
| WMEA1030CK | Input Voltage: 90~264 | Output Voltage: 13~20 | Output Current: 2.3A | Output Power (W): 30 | No. Outputs: S | Case: Wall Mount | Size: 3.94" × 1.59" × 1.22" | Get a Quote |
| WMEA1030CC | Input Voltage: 90~264 | Output Voltage: 13~20 | Output Current: 2.3A | Output Power (W): 30 | No. Outputs: S | Case: Wall Mount | Size: 3.94" × 1.59" × 1.22" | Get a Quote |
| WMEA1030CA | Input Voltage: 90~264 | Output Voltage: 13~20 | Output Current: 2.3A | Output Power (W): 30 | No. Outputs: S | Case: Wall Mount | Size: 3.94" × 1.59" × 1.22" | Get a Quote |
| WMEA1030DK | Input Voltage: 90~264 | Output Voltage: 21~35 | Output Current: 1.42A | Output Power (W): 30 | No. Outputs: S | Case: Wall Mount | Size: 3.94" × 1.59" × 1.22" | Get a Quote |
| WMEA1030DA | Input Voltage: 90~264 | Output Voltage: 21~35 | Output Current: 1.42A | Output Power (W): 30 | No. Outputs: S | Case: Wall Mount | Size: 3.94" × 1.59" × 1.22" | Get a Quote |
| WMEA1030DC | Input Voltage: 90~264 | Output Voltage: 21~35 | Output Current: 1.42A | Output Power (W): 30 | No. Outputs: S | Case: Wall Mount | Size: 3.94" × 1.59" × 1.22" | Get a Quote |
| WMEA1030DE | Input Voltage: 90~264 | Output Voltage: 21~35 | Output Current: 1.42A | Output Power (W): 30 | No. Outputs: S | Case: Wall Mount | Size: 3.94" × 1.59" × 1.22" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47-63 Hz |
| Output | |
| Output Voltage: | 5~8, 9~12, 13~20, 21~35 |
| Output Current: | 1.42A, 2.3A, 3A, 3.5A |
| Output Power (Watts): | 25, 30 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | Automatic Recovery |
| General | |
| Efficiency: | 80% |
| Environmental | |
| Operating Temperature: | 0 to 40°C |
| Storage Temperature: | -25 to 85°C |
| Physical | |
| Weight: | 7.76 oz. |

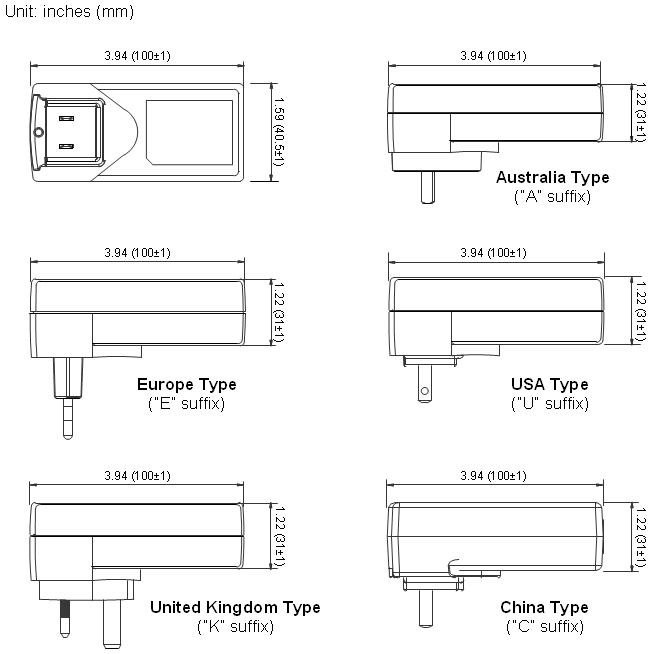

| Dimensions: | 3.94in. × 1.59in. × 1.22in. (100 x 40.5 x 31 mm) |
| Notes & safety | |
| Notes: | 1. The “x” suffix can be U (USA Type), E (Europe Type), K (United Kingdom Type), A (Australia Type), or C (China Type). 2. The output voltage is specified as a range (Ex: 21~35 VDC); the customer must specify what they want the voltage set at. Please contact factory for ordering details. 3. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/cUL UL 60065, UL60950 (LPS) equiv. to Class 2 (UL1310), EN/IEC 60950, CCC, FCC, CE, CB, DolR+C-Tick, PSE |
| RoHS Compliance: | Yes |
