WMEA1024
The WMEA1024 series of AC DC wall mount power supplies provides up to 36 watts of continuous output power in a 2.99” x 1.69” 1.18” package. This series consists of single output models with output voltages ranging from 5V to 48V and a wide input voltage range of 100~240VAC. This series is RoHS compliant and meets CEC Level VI, CoC Tier 2 requirements. This series also has UL/cUL, CB, CE, and CCC safety approvals. All models are protected against short circuit and over voltage conditions. Multiple case types are available for this series: US, EU, UK and SAA. Please call factory for ordering details.
• RoHS Compliant
• CEC Level VI (DoE), CoC Tier 2 Compliant

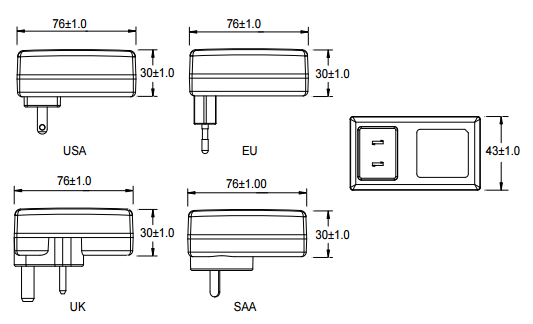

• Multiple Case Types Available: US, EU, UK, SAA
• Output Voltage up to 48V
• Over Voltage and Short Circuit Protection
• UL/cUL, CB, CE, & CCC Safety Approvals
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| WMEA1024AY | Input Voltage: 100~240 | Output Voltage: 5~8 | Output Current: 2A | Output Power (W): 16 | No. Outputs: S | Case: Wall Mount | Size: 2.99" x 1.69" x 1.18" | Get a Quote |
| WMEA1024DY | Input Voltage: 100~240 | Output Voltage: 9~11 | Output Current: 1.5A | Output Power (W): 18 | No. Outputs: S | Case: Wall Mount | Size: 2.99" x 1.69" x 1.18" | Get a Quote |
| WMEA1024BY | Input Voltage: 100~240 | Output Voltage: 5~8 | Output Current: 3A | Output Power (W): 20 | No. Outputs: S | Case: Wall Mount | Size: 2.99" x 1.69" x 1.18" | Get a Quote |
| WMEA1024GY | Input Voltage: 100~240 | Output Voltage: 12~17 | Output Current: 1.66A | Output Power (W): 20 | No. Outputs: S | Case: Wall Mount | Size: 2.99" x 1.69" x 1.18" | Get a Quote |
| WMEA1024MY | Input Voltage: 100~240 | Output Voltage: 36~48 | Output Current: 0.55A | Output Power (W): 20 | No. Outputs: S | Case: Wall Mount | Size: 2.99" x 1.69" x 1.18" | Get a Quote |
| WMEA1024CY | Input Voltage: 100~240 | Output Voltage: 5~8 | Output Current: 4A | Output Power (W): 24 | No. Outputs: S | Case: Wall Mount | Size: 2.99" x 1.69" x 1.18" | Get a Quote |
| WMEA1024EY | Input Voltage: 100~240 | Output Voltage: 9~11 | Output Current: 2A | Output Power (W): 24 | No. Outputs: S | Case: Wall Mount | Size: 2.99" x 1.69" x 1.18" | Get a Quote |
| WMEA1024JY | Input Voltage: 100~240 | Output Voltage: 18~24 | Output Current: 1.33A | Output Power (W): 24 | No. Outputs: S | Case: Wall Mount | Size: 2.99" x 1.69" x 1.18" | Get a Quote |
| WMEA1024QY | Input Voltage: 100~240 | Output Voltage: 12 | Output Current: 2A | Output Power (W): 24 | No. Outputs: S | Case: Wall Mount | Size: 2.99" x 1.69" x 1.18" | Get a Quote |
| WMEA1024FY | Input Voltage: 100~240 | Output Voltage: 9~11 | Output Current: 3A | Output Power (W): 27 | No. Outputs: S | Case: Wall Mount | Size: 2.99" x 1.69" x 1.18" | Get a Quote |
| WMEA1024HY | Input Voltage: 100~240 | Output Voltage: 12~17 | Output Current: 2.5A | Output Power (W): 30 | No. Outputs: S | Case: Wall Mount | Size: 2.99" x 1.69" x 1.18" | Get a Quote |
| WMEA1024KY | Input Voltage: 100~240 | Output Voltage: 18~24 | Output Current: 1.66A | Output Power (W): 30 | No. Outputs: S | Case: Wall Mount | Size: 2.99" x 1.69" x 1.18" | Get a Quote |
| WMEA1024NY | Input Voltage: 100~240 | Output Voltage: 36~48 | Output Current: 0.83A | Output Power (W): 30 | No. Outputs: S | Case: Wall Mount | Size: 2.99" x 1.69" x 1.18" | Get a Quote |
| WMEA1024PY | Input Voltage: 100~240 | Output Voltage: 12 | Output Current: 3A | Output Power (W): 36 | No. Outputs: S | Case: Wall Mount | Size: 2.99" x 1.69" x 1.18" | Get a Quote |
| WMEA1024RY | Input Voltage: 100~240 | Output Voltage: 24 | Output Current: 1.5A | Output Power (W): 36 | No. Outputs: S | Case: Wall Mount | Size: 2.99" x 1.69" x 1.18" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 100~240 |
| Input Frequency: | 50~60Hz |
| Output | |
| Output Voltage: | 5~8, 9~11, 12, 12~17, 18~24, 24, 36~48 |
| Output Current: | 0.83A, 0.55A, 1.5A, 1.66A, 1.33A, 2.5A, 2A, 3A, 4A |
| Output Power (Watts): | 16, 18, 20, 24, 27, 30, 36 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | Automatic Recovery |
| General | |
| Environmental | |
| Operating Temperature: | 0 to 40°C |
| Storage Temperature: | -20 to 85°C |
| Physical | |
| Weight: | 7.05oz (200g) |
| Dimensions: | 2.99" x 1.69" x 1.18" |
| Notes & safety | |
| Notes: | (1) The “Y” in model name represents AC plug option. This can either be: “U” for USA plug type, “E” for EU plug type, “K” for UK plug type, “A” for SAA plug type. Please call factory for ordering details. (2) Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.1uF ceramic capacitor & parallel with 47uF aluminum capacitor at full load and nominal line. (3) Line regulation is defined by changing ±10% of input voltage from nominal line at rated load. (4) This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications are subject to change without notice. |
| Safety Approvals: | UL/cUL, CB, CE, & CCC |
| RoHS Compliance: | Yes |
| Energy Star Compliance: | Level VI |
