WMEA1019
The WMEA1019 series of wall mount power supplies offers up to 24 watts of output power in a compact package. This series consists of single output models with output voltages ranging from 5~48V and wide input voltage range of 100VAC to 240VDC. This series offers short circuit, over voltage, over current, and over temperature protection and is RoHS and Efficiency Level VI compliant. Two case types are available, horizontal or vertical, and 5 different AC plug types are available: USA plug, EU plug, UK plug, SAA plug, and China plug. This series meets UL/cUL, CB, CE, FCC, and CCC safety approvals. Please call factory for order details.
• Wide Input Range of 100VAC to 240VAC
• Output Voltage Ranging from 5V to 48V
• RoHS Compliant
• Maximum Output Power of 24 Watts
• MTBF >100,000 Hours
• Vertical or Horizontal Package Available
• Short Circuit, Over Voltage, and Over Current Protection
• Meets Efficiency Level VI
• 5 AC Plug Types Available: USA, EU, UK, SAA, and China
• Meets UL/cUL, CB, CE, FCC, and CCC Safety Approvals
Part Number Setup:
X: “U” for US Plug, “E” for EU Plug, “K” for UK Plug, “A” for SAA Plug, or “C” for China Plug
X: “U” for US Plug, “E” for EU Plug, “K” for UK Plug, “A” for SAA Plug, or “C” for China Plug
Example:
WMEA1019CVE = 14~19VDC Output Model with EU Plug
WMEA1019CVE = 14~19VDC Output Model with EU Plug
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| WMEA1019AVx | Input Voltage: 100~240 | Output Voltage: 5~8 | Output Current: 3A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount | Size: 2.36" x 1.5" x 1.04" | Get a Quote |
| WMEA1019AHx | Input Voltage: 100~240 | Output Voltage: 5~8 | Output Current: 3A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount | Size: 2.62" x 1.02" x 1.79" | Get a Quote |
| WMEA1019GVx | Input Voltage: 100~240 | Output Voltage: 5~8 | Output Current: 3A | Output Power (W): 18 | No. Outputs: S | Case: Wall Mount | Size: 2.36" x 1.5" x 1.04" | Get a Quote |
| WMEA1019GHx | Input Voltage: 100~240 | Output Voltage: 5~8 | Output Current: 3A | Output Power (W): 18 | No. Outputs: S | Case: Wall Mount | Size: 2.62" x 1.02" x 1.79" | Get a Quote |
| WMEA1019BVx | Input Voltage: 100~240 | Output Voltage: 9~13 | Output Current: 2A | Output Power (W): 20 | No. Outputs: S | Case: Wall Mount | Size: 2.36" x 1.5" x 1.04" | Get a Quote |
| WMEA1019CVx | Input Voltage: 100~240 | Output Voltage: 14~19 | Output Current: 1.42A | Output Power (W): 20 | No. Outputs: S | Case: Wall Mount | Size: 2.36" x 1.5" x 1.04" | Get a Quote |
| WMEA1019BHx | Input Voltage: 100~240 | Output Voltage: 9~13 | Output Current: 2A | Output Power (W): 20 | No. Outputs: S | Case: Wall Mount | Size: 2.62" x 1.02" x 1.79" | Get a Quote |
| WMEA1019CHx | Input Voltage: 100~240 | Output Voltage: 14~19 | Output Current: 1.42A | Output Power (W): 20 | No. Outputs: S | Case: Wall Mount | Size: 2.62" x 1.02" x 1.79" | Get a Quote |
| WMEA1019DHx | Input Voltage: 100~240 | Output Voltage: 20~27 | Output Current: 1A | Output Power (W): 20 | No. Outputs: S | Case: Wall Mount | Size: 2.62" x 1.02" x 1.79" | Get a Quote |
| WMEA1019EHx | Input Voltage: 100~240 | Output Voltage: 28~35 | Output Current: 0.71A | Output Power (W): 20 | No. Outputs: S | Case: Wall Mount | Size: 2.62" x 1.02" x 1.79" | Get a Quote |
| WMEA1019FHx | Input Voltage: 100~240 | Output Voltage: 36~48 | Output Current: 0.55A | Output Power (W): 20 | No. Outputs: S | Case: Wall Mount | Size: 2.62" x 1.02" x 1.79" | Get a Quote |
| WMEA1019HVx | Input Voltage: 100~240 | Output Voltage: 9~13 | Output Current: 2A | Output Power (W): 24 | No. Outputs: S | Case: Wall Mount | Size: 2.36" x 1.5" x 1.04" | Get a Quote |
| WMEA1019JVx | Input Voltage: 100~240 | Output Voltage: 14~19 | Output Current: 1.71A | Output Power (W): 24 | No. Outputs: S | Case: Wall Mount | Size: 2.36" x 1.5" x 1.04" | Get a Quote |
| WMEA1019KVx | Input Voltage: 100~240 | Output Voltage: 20~27 | Output Current: 1.2A | Output Power (W): 24 | No. Outputs: S | Case: Wall Mount | Size: 2.36" x 1.5" x 1.04" | Get a Quote |
| WMEA1019MVx | Input Voltage: 100~240 | Output Voltage: 28~35 | Output Current: 0.85A | Output Power (W): 24 | No. Outputs: S | Case: Wall Mount | Size: 2.36" x 1.5" x 1.04" | Get a Quote |
| WMEA1019HHx | Input Voltage: 100~240 | Output Voltage: 9~13 | Output Current: 2A | Output Power (W): 24 | No. Outputs: S | Case: Wall Mount | Size: 2.62" x 1.02" x 1.79" | Get a Quote |
| WMEA1019JHx | Input Voltage: 100~240 | Output Voltage: 14~19 | Output Current: 1.71A | Output Power (W): 24 | No. Outputs: S | Case: Wall Mount | Size: 2.62" x 1.02" x 1.79" | Get a Quote |
| WMEA1019KHx | Input Voltage: 100~240 | Output Voltage: 20~27 | Output Current: 1.2A | Output Power (W): 24 | No. Outputs: S | Case: Wall Mount | Size: 2.62" x 1.02" x 1.79" | Get a Quote |
| WMEA1019MHx | Input Voltage: 100~240 | Output Voltage: 28~35 | Output Current: 0.85A | Output Power (W): 24 | No. Outputs: S | Case: Wall Mount | Size: 2.62" x 1.02" x 1.79" | Get a Quote |
| WMEA1019NHx | Input Voltage: 100~240 | Output Voltage: 36~48 | Output Current: 0.66A | Output Power (W): 24 | No. Outputs: S | Case: Wall Mount | Size: 2.62" x 1.02" x 1.79" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 100~240 |
| Input Frequency: | 50-60Hz |
| Output | |
| Output Voltage: | 5~8, 9~13, 14~19, 20~27, 28~35, 36~48 |
| Output Current: | 3A, 2A, 1.42A, 1A, 0.71A, 0.55A |
| Output Power (Watts): | 15, 18, 20, 24 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | Automatic Recovery |
| Thermal Protection: | Latch Mode |
| General | |
| Environmental | |
| Operating Temperature: | 0 to 40°C |
| Storage Temperature: | -20 to 85°C |
| Physical | |
| Weight: | 4.23oz. |

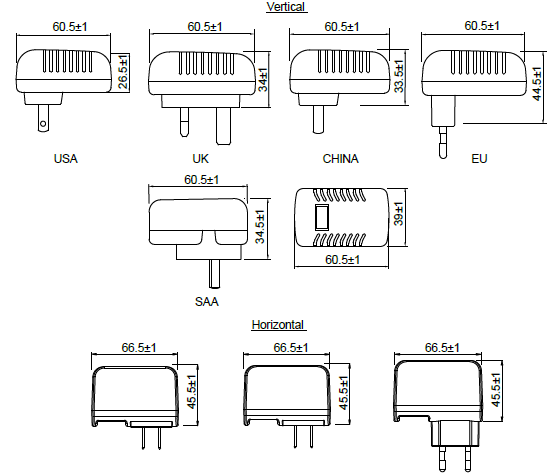

| Dimensions: | Vertical Models: 2.36in x 1.5in x 1.04in Horizontal Models: 2.62in x 1.02in x 1.79in |
| Notes & safety | |
| Notes: | (1) “x” in model name represents plug type. “x” can be “U” for US Plug, “E” for EU plug, “K” for UK plug, “A” for SAA plug, or “C” for China plug. (2) Ripple and noise is measured using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.1µF ceramic capacitor & parallel with 47µF aluminum capacitor at full load and nominal line. (3) Line regulation is defined by changing ±10% of input voltage from nominal line at rated load. (4) Certificates listed are for reference only. Please contact factory for details. (5) This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/cUL, CB, CE, FCC, CCC |
| RoHS Compliance: | Yes |
| Energy Star Compliance: | Level VI |
Get a Quote
Request information for from Wall Industries.
"*" indicates required fields
