WMEA1015
The WMEA1015 series of Class II wall mount AC/DC power supplies offers up to 15 Watts of output power in a slim compact package. All models have a single output and a universal input voltage range of 90-264VAC. These supplies are protected against over voltage and short circuit conditions and have been 100% burn-in and Hi-pot tested. This series is CEC, RoHS, and WEE compliant and has UL/cUL 60950-1, CE, CB, FCC, and PSE safety approvals. Models are available in United States (“U” suffix), United Kingdom (“K” suffix), and European (“E” suffix) types. Optional output connectors are also available. Please call factory for more details.
• Class II
• 90-264VAC Input Voltage Range
• 10~15 Watts Output Power
• Single Outputs
• Slim Compact Size
• Low Ripple & Noise
• Short Circuit and Over Voltage Protection
• MTBF: > 30,000 Hours
• 100% Burn-in and Hi-Pot Tested
• Optional Output Connectors
• RoHS and WEEE Compliant
• CEC Efficiency Regulations Compliance
• UL/cUL 60950-1, CE, CB, FCC, and PSE Safety Approvals
• US, EU, and UK Types Available
• Two Case Types Available: Straight and Right Angle
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| WMEA1015A1U | Input Voltage: 90~264 | Output Voltage: 3~5 | Output Current: 2.5A | Output Power (W): 10 | No. Outputs: S | Case: Wall Mount | Size: 2.35" x 1.73" x 1.12" | Get a Quote |
| WMEA1015A1E | Input Voltage: 90~264 | Output Voltage: 3~5 | Output Current: 2.5A | Output Power (W): 10 | No. Outputs: S | Case: Wall Mount | Size: 3.06" x 1.72" x 1.17" | Get a Quote |
| WMEA1015A2U | Input Voltage: 90~264 | Output Voltage: 3~5 | Output Current: 2.5A | Output Power (W): 10 | No. Outputs: S | Case: Wall Mount | Size: 2.8" x 1.87" x 1.32" | Get a Quote |
| WMEA1015A2E | Input Voltage: 90~264 | Output Voltage: 3~5 | Output Current: 2.5A | Output Power (W): 10 | No. Outputs: S | Case: Wall Mount | Size: 2.8" x 1.87" x 1.25" | Get a Quote |
| WMEA1015A2K | Input Voltage: 90~264 | Output Voltage: 3~5 | Output Current: 2.5A | Output Power (W): 10 | No. Outputs: S | Case: Wall Mount | Size: 2.75" x 1.89" x 1.46" | Get a Quote |
| WMEA1015B1U | Input Voltage: 90~264 | Output Voltage: 6~9 | Output Current: 2.0A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.35" x 1.73" x 1.12" | Get a Quote |
| WMEA1015B1E | Input Voltage: 90~264 | Output Voltage: 6~9 | Output Current: 2.0A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 3.06" x 1.72" x 1.17" | Get a Quote |
| WMEA1015B2U | Input Voltage: 90~264 | Output Voltage: 6~9 | Output Current: 2.0A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.8" x 1.87" x 1.32" | Get a Quote |
| WMEA1015B2E | Input Voltage: 90~264 | Output Voltage: 6~9 | Output Current: 2.0A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.8" x 1.87" x 1.25" | Get a Quote |
| WMEA1015B2K | Input Voltage: 90~264 | Output Voltage: 6~9 | Output Current: 2.0A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.75" x 1.89" x 1.46" | Get a Quote |
| WMEA1015C1U | Input Voltage: 90~264 | Output Voltage: 10~15 | Output Current: 1.5A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount | Size: 2.35" x 1.73" x 1.12" | Get a Quote |
| WMEA1015D1U | Input Voltage: 90~264 | Output Voltage: 16~24 | Output Current: 0.9A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount | Size: 2.35" x 1.73" x 1.12" | Get a Quote |
| WMEA1015C1E | Input Voltage: 90~264 | Output Voltage: 10~15 | Output Current: 1.5A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount | Size: 3.06" x 1.72" x 1.17" | Get a Quote |
| WMEA1015D1E | Input Voltage: 90~264 | Output Voltage: 16~24 | Output Current: 0.9A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount | Size: 3.06" x 1.72" x 1.17" | Get a Quote |
| WMEA1015C2U | Input Voltage: 90~264 | Output Voltage: 10~15 | Output Current: 1.5A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount | Size: 2.8" x 1.87" x 1.32" | Get a Quote |
| WMEA1015D2U | Input Voltage: 90~264 | Output Voltage: 16~24 | Output Current: 0.9A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount | Size: 2.8" x 1.87" x 1.32" | Get a Quote |
| WMEA1015C2E | Input Voltage: 90~264 | Output Voltage: 10~15 | Output Current: 1.5A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount | Size: 2.8" x 1.87" x 1.25" | Get a Quote |
| WMEA1015D2E | Input Voltage: 90~264 | Output Voltage: 16~24 | Output Current: 0.9A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount | Size: 2.8" x 1.87" x 1.25" | Get a Quote |
| WMEA1015C2K | Input Voltage: 90~264 | Output Voltage: 10~15 | Output Current: 1.5A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount | Size: 2.75" x 1.89" x 1.46" | Get a Quote |
| WMEA1015D2K | Input Voltage: 90~264 | Output Voltage: 16~24 | Output Current: 0.9A | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount | Size: 2.75" x 1.89" x 1.46" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47-63Hz |
| Output | |
| Output Voltage: | 3~5, 6~9, 10~15, 16~24 |
| Output Current: | 2.5A, 2A, 1.5A, 0.9A |
| Output Power (Watts): | 10, 12, 15 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | Automatic Recovery |
| General | |
| Efficiency: | Up to 75% |
| Environmental | |
| Operating Temperature: | 0 to 40°C |
| Storage Temperature: | -20 to 85°C |
| Physical | |
| Weight: | 4.9oz (140g) |

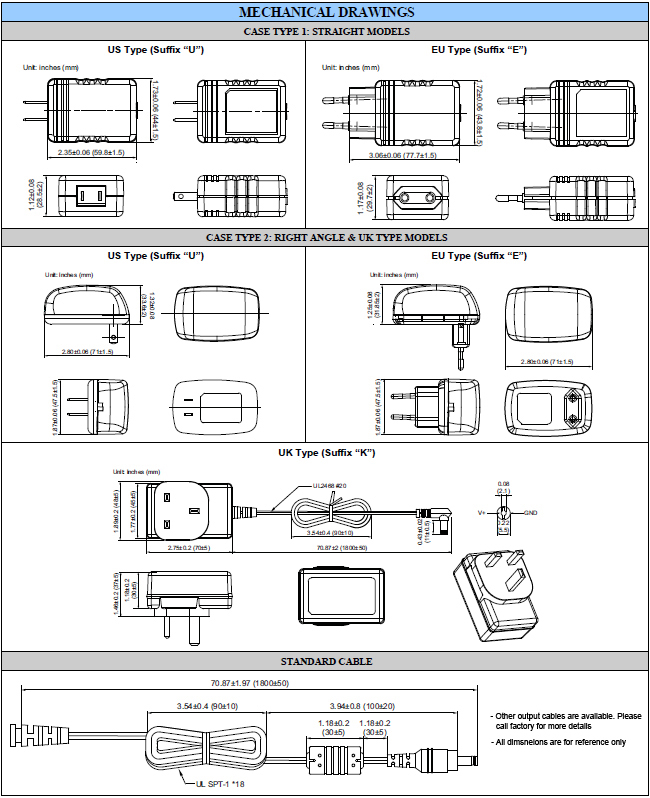

| Dimensions: | CASE TYPE 1: US Type: 2.35" x 1.73" x 1.12" (59.8 x 44 x 28.5 mm) EU Type: 3.06" x 1.72" x 1.17" (77.7 x 43.8 x 29.7 mm) CASE TYPE 2: US Type: 2.80" x 1.87" x 1.32" (71 x 47.5 x 33.6 mm) EU Type: 2.80" x 1.87" x 1.25" (71 x 47.5 x 31.85 mm) UK Type: 2.75" x 1.89" x 1.46" (70 x 48 x 37 mm) |
| Notes & safety | |
| Notes: | 1. The output voltage is specified as a range (ex: 16~24VDC). The customer must specify what they would like the output voltage set at. 2. Ripple and noise is measured at 20MHz BW with 0.1µF ceramic and 47µF aluminum capacitors in parallel with the output at full load and nominal line. 3. Optional output connectors are available. Please call factory for more details. 4. All safety regulations are listed for reference only. Please call factory for more details. 5. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/cUL 60950-1, CB, CE, FCC, PSE |
| RoHS Compliance: | Yes |
