WMEA1005
The WMEA1005 series of AC DC wall mount power supplies provides 6 watts of output power in a compact package. This series consists of single output models that have an input range of 100 to 240VAC and output voltages ranging from 5V to 12V. Several different options are available for this series; AC plug type can either be USA, EU, or a UK plug, case type can either be horizontal or vertical, and output type can either be USB or SR type. This series is both RoHS and Level VI compliant, and has UL/cUL, UL60950, UL60065, CB, CE, and FCC Safety Approvals. Please call factory for order details.
• 6 Watts of Output Power
• Input Range of 100 to 240VAC
• Output Voltages Ranging from 5V~12V
• Over Voltage, Over Current, and Short Circuit Protection
• MTBF > 30,000 Hours
• RoHS Compliant
• Level VI Compliant
• US, EU, and UK Plugs Available
• Horizontal or Vertical Case Available
• USB or SR Output Available
• UL/cUL UL60950, UL60065, CB, CE, and FCC Safety Approvals
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| WMEA1005AVUS | Input Voltage: 100~240 | Output Voltage: 5~8 | Output Current: 1.2A | Output Power (W): 6 | No. Outputs: S | Case: Wall Mount | Size: 2.8" x 1.79" x 1.11" | Get a Quote |
| WMEA1005AVES | Input Voltage: 100~240 | Output Voltage: 5~8 | Output Current: 1.2A | Output Power (W): 6 | No. Outputs: S | Case: Wall Mount | Size: 2.8" x 1.79" x 1.11" | Get a Quote |
| WMEA1005AVKS | Input Voltage: 100~240 | Output Voltage: 5~8 | Output Current: 1.2A | Output Power (W): 6 | No. Outputs: S | Case: Wall Mount | Size: 2.8" x 1.79" x 1.37" | Get a Quote |
| WMEA1005AVUU | Input Voltage: 100~240 | Output Voltage: 5~8 | Output Current: 1.2A | Output Power (W): 6 | No. Outputs: S | Case: Wall Mount | Size: 2.8" x 1.79" x 1.11" | Get a Quote |
| WMEA1005AVEU | Input Voltage: 100~240 | Output Voltage: 5~8 | Output Current: 1.2A | Output Power (W): 6 | No. Outputs: S | Case: Wall Mount | Size: 2.8" x 1.79" x 1.11" | Get a Quote |
| WMEA1005AVKU | Input Voltage: 100~240 | Output Voltage: 5~8 | Output Current: 1.2A | Output Power (W): 6 | No. Outputs: S | Case: Wall Mount | Size: 2.8" x 1.79" x 1.37" | Get a Quote |
| WMEA1005BVUS | Input Voltage: 100~240 | Output Voltage: 9~12 | Output Current: 0.66A | Output Power (W): 6 | No. Outputs: S | Case: Wall Mount | Size: 2.8" x 1.79" x 1.11" | Get a Quote |
| WMEA1005BVES | Input Voltage: 100~240 | Output Voltage: 9~12 | Output Current: 0.66A | Output Power (W): 6 | No. Outputs: S | Case: Wall Mount | Size: 2.8" x 1.79" x 1.11" | Get a Quote |
| WMEA1005BVKS | Input Voltage: 100~240 | Output Voltage: 9~12 | Output Current: 0.66A | Output Power (W): 6 | No. Outputs: S | Case: Wall Mount | Size: 2.8" x 1.79" x 1.37" | Get a Quote |
| WMEA1005BVUU | Input Voltage: 100~240 | Output Voltage: 9~12 | Output Current: 0.66A | Output Power (W): 6 | No. Outputs: S | Case: Wall Mount | Size: 2.8" x 1.79" x 1.11" | Get a Quote |
| WMEA1005BVEU | Input Voltage: 100~240 | Output Voltage: 9~12 | Output Current: 0.66A | Output Power (W): 6 | No. Outputs: S | Case: Wall Mount | Size: 2.8" x 1.79" x 1.11" | Get a Quote |
| WMEA1005BVKU | Input Voltage: 100~240 | Output Voltage: 9~12 | Output Current: 0.66A | Output Power (W): 6 | No. Outputs: S | Case: Wall Mount | Size: 2.8" x 1.79" x 1.37" | Get a Quote |
| WMEA1005AHUS | Input Voltage: 100~240 | Output Voltage: 5~8 | Output Current: 1.2A | Output Power (W): 6 | No. Outputs: S | Case: Wall Mount | Size: 2.8" x 1.79" x 1.46" | Get a Quote |
| WMEA1005AHES | Input Voltage: 100~240 | Output Voltage: 5~8 | Output Current: 1.2A | Output Power (W): 6 | No. Outputs: S | Case: Wall Mount | Size: 2.8" x 1.79" x 1.46" | Get a Quote |
| WMEA1005AHUU | Input Voltage: 100~240 | Output Voltage: 5~8 | Output Current: 1.2A | Output Power (W): 6 | No. Outputs: S | Case: Wall Mount | Size: 2.8" x 1.79" x 1.46" | Get a Quote |
| WMEA1005AHEU | Input Voltage: 100~240 | Output Voltage: 5~8 | Output Current: 1.2A | Output Power (W): 6 | No. Outputs: S | Case: Wall Mount | Size: 2.8" x 1.79" x 1.46" | Get a Quote |
| WMEA1005BHUS | Input Voltage: 100~240 | Output Voltage: 9~12 | Output Current: 0.66A | Output Power (W): 6 | No. Outputs: S | Case: Wall Mount | Size: 2.8" x 1.79" x 1.46" | Get a Quote |
| WMEA1005BHES | Input Voltage: 100~240 | Output Voltage: 9~12 | Output Current: 0.66A | Output Power (W): 6 | No. Outputs: S | Case: Wall Mount | Size: 2.8" x 1.79" x 1.46" | Get a Quote |
| WMEA1005BHUU | Input Voltage: 100~240 | Output Voltage: 9~12 | Output Current: 0.66A | Output Power (W): 6 | No. Outputs: S | Case: Wall Mount | Size: 2.8" x 1.79" x 1.46" | Get a Quote |
| WMEA1005BHEU | Input Voltage: 100~240 | Output Voltage: 9~12 | Output Current: 0.66A | Output Power (W): 6 | No. Outputs: S | Case: Wall Mount | Size: 2.8" x 1.79" x 1.46" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 100~240 |
| Input Frequency: | 50~60Hz |
| Output | |
| Output Voltage: | 5~8, 9~12 |
| Output Current: | 0.66A, 1.2A |
| Output Power (Watts): | 6 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | Automatic Recovery |
| General | |
| Environmental | |
| Operating Temperature: | 0 to 40°C |
| Storage Temperature: | -20 to 85°C |
| Physical | |
| Weight: | 4.94oz (140g) |

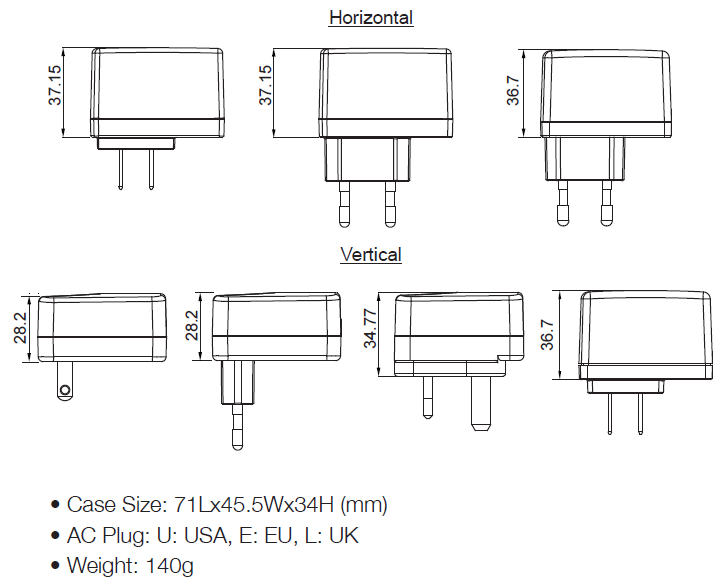

| Dimensions: | Vertical US and EU Models: 2.8" x 1.79" x 1.11" Vertical UK Models: 2.8" x 1.79" x 1.37" Horizontal US and EU Models: 2.8" x 1.79" x 1.46" |
| Notes & safety | |
| Notes: | (1) “x” in model number indicates the AC Plug type. “x” can either be “U” for US Plug, “E” for EU Plug, or “K” for UK Plug. Please note that UK plug is only available in vertical case form. (2) Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.1µF ceramic capacitor & parallel with 47µF aluminum capacitor at dull load and nominal line. (3) Line regulation is defined by changing ±10% of input voltage from nominal line at rated load. (4) Certificates listed are for reference only. Please call factory for details. (5) This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications are subject to change without notice. |
| Safety Approvals: | UL/cUL UL60950, UL60065, CB, CE, FCC |
| RoHS Compliance: | Yes |
| Energy Star Compliance: | Level VI |
