WMCUB6

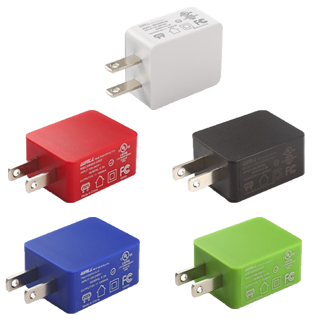

The WMCUB6 series of wall mount AC/DC power supplies delivers up to 6 Watts of output power in a 1.39” x 1.63” x 0.75” package. This series has single output models with an input voltage range of 90-264VAC. These supplies are protected against over current and short circuit conditions. The WMCUB6 series is RoHS, REACH, and Level VI compliant and has UL and FCC safety approvals. These supplies are also available in a variety of case colors.
X: “W” for white case, “B” for black case, “LB” for blue case, “R” for red case, or “G” for green case.
WMCUB1005-UR = 10 Watt Model with Red Case
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| WMCUB505-Ux | Input Voltage: 90~264 | Output Voltage: 5 | Output Current: 1000mA | Output Power (W): 5 | No. Outputs: S | Case: Wall Mount | Size: 1.39" x 1.63" x 0.91" | Get a Quote |
| WMCUB1005-Ux | Input Voltage: 90~264 | Output Voltage: 5 | Output Current: 2000mA | Output Power (W): 10 | No. Outputs: S | Case: Wall Mount | Size: 1.39" x 1.63" x 0.91" | Get a Quote |
| WMCUB10505-Ux | Input Voltage: 90~264 | Output Voltage: 5 | Output Current: 2100mA | Output Power (W): 10.5 | No. Outputs: S | Case: Wall Mount | Size: 1.39" x 1.63" x 0.91" | Get a Quote |
| WMCUB1205-Ux | Input Voltage: 90~264 | Output Voltage: 5 | Output Current: 2400mA | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 1.39" x 1.63" x 0.91" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47-63Hz |
| Output | |
| Output Voltage: | 5 |
| Output Current: | 1000mA, 2000mA, 2100mA, 2400mA |
| Output Power (Watts): | 5, 10, 10.5, 12 |
| Short Circuit Protection: | Automatic Recovery |
| General | |
| Environmental | |
| Operating Temperature: | 0 to 40°C |
| Storage Temperature: | -10 to 70°C |
| Physical | |
| Weight: | 1.32oz (37.5g) |
| Dimensions: | 1.39" x 1.63" x 0.91" (35.4 x 41.5 x 23 mm) |
| Notes & safety | |
| Notes: | 1. The “x” in the model number represents the case color. “x” can be “W” for white case, “B” for black case, “LB” for blue case, “R” for red case, or “G” for green case. 2. This product is Listed to applicable standards and requirement by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL 60950, FCC |
| RoHS Compliance: | Yes |
| Energy Star Compliance: | Level VI |
