WMCTN65

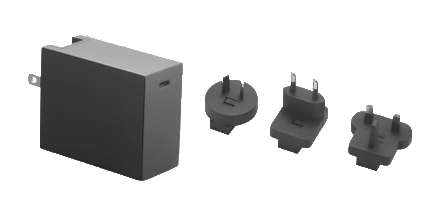

The WMCTN65 series of AC/DC wall mount power supplies offers 45-65 watts of output power in a 2.11” x 1.24” x 2.28” package. This series consists of single output models with an input range of 100-240VAC. Six types of AC plugs are available for this series: USA, EU, UK, China, Korea, and AU. Each model in this series has over voltage, short circuit, and over current protection.
“x” in model number indicates plug type. “x” can either be “U” for US/changeable plug or “V” for changeable plug.
Models with “P” suffix indicate PPS models.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| WMCTN45-200x | Input Voltage: 100/240 | Output Voltage: 5~20 | Output Current: 2.25~3A | Output Power (W): 15~45 | No. Outputs: S | Case: Wall Mount | Size: 2.11" x 1.24" x 2.28" | Get a Quote |
| WMCTN65-200x | Input Voltage: 100/240 | Output Voltage: 5~20 | Output Current: 3~3.25A | Output Power (W): 15~65 | No. Outputs: S | Case: Wall Mount | Size: 2.11" x 1.24" x 2.28" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 100/240 |
| Input Voltage Range: | 100~240 |
| Output | |
| Output Voltage: | 5, 9, 12, 15, 20 |
| Output Current: | 2.25A, 3A, 3.25A |
| Output Power (Watts): | 15, 27, 36, 45, 65 |
| Short Circuit Protection: | Yes |
| Over Voltage Protection: | Yes |
| General | |
| Environmental | |
| Operating Temperature: | -20 to 40°C |
| Storage Temperature: | -20 to 80°C |
| Physical | |
| Weight: | 45W: 4.41oz (125g) 65W: 4.59oz (130g) |

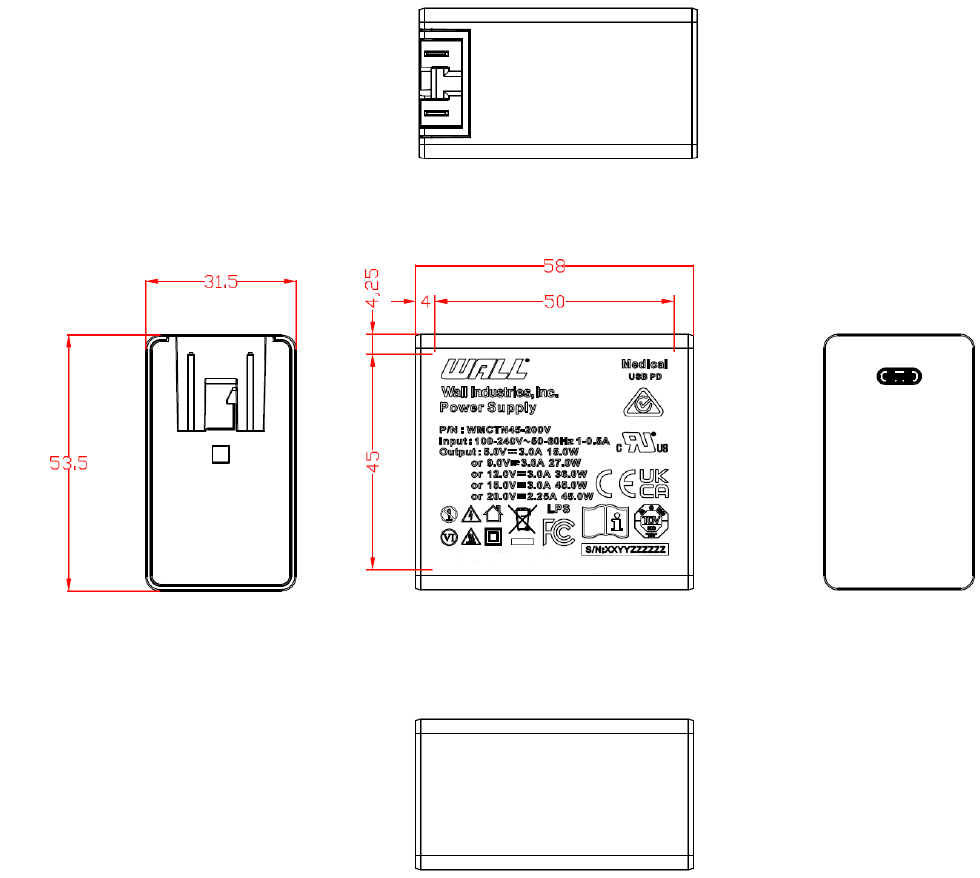

| Dimensions: | 2.11in x 1.24in x 2.28in (53.5mm x 31.5mm x 58mm) |
| Notes & safety | |
| Notes: | 1. “x” in model number indicates plug type. “x” can either be “U” for US/changeable plug or “V” for changeable plug. 2. Built in USB-PD chip dynamically negotiates the optimal voltage and current to deliver safe and efficient energy transfer. All five output voltages can be served by one model. 3. This product is Listed to applicable standards and requirements by UL *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/cUL/T-Mark/RCM/ UKCA (WMCTN45 Only) |
| Energy Star Compliance: | Level VI |
