PSTAD30

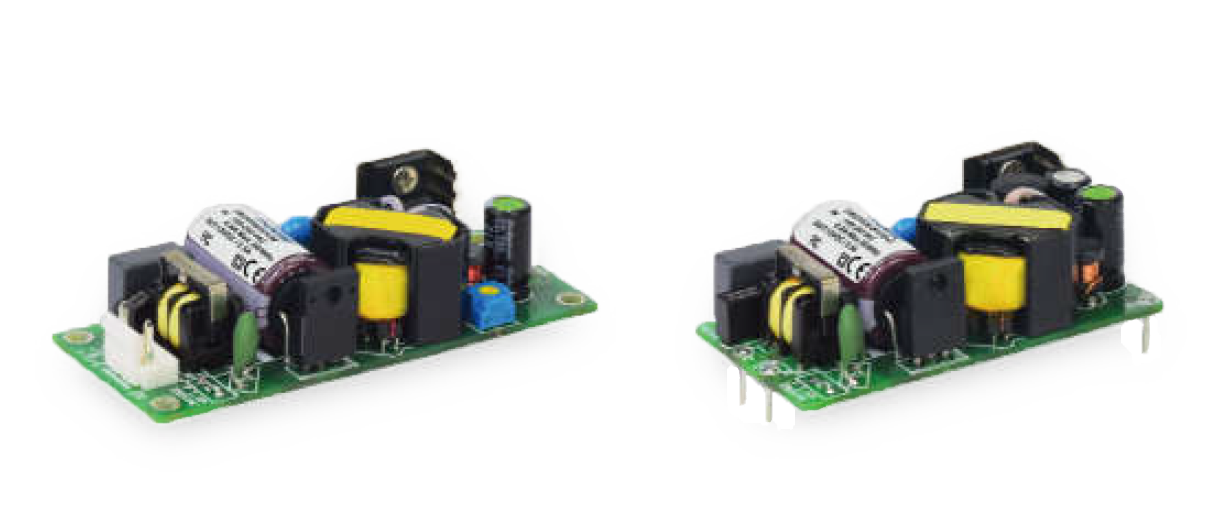

The PSTAD30 series of AC/DC open frame power supplies offers up to 30 watts of output power in a compact 3.34” x 1.36” x 0.77” connector type or 2.88” x 1.36” x 0.95” pin type package. This series consists of single output models with a wide input voltage range of 85~264VAC (120~370VDC). Each model in this series features low standby power, low leakage current, and several connector options. The series is protected against short circuit, over load, and over voltage conditions, is RoHS and REACH compliant, and has IEC/EN/UL 609509-1, 62368-1 safety approvals.
• 85~264VAC (120~370VDC) Input Range
• Adjustable Output Voltage
• Low Standby Power
• Low Leakage Current
• Multiple Connector Options Available
• Optional Conformal Coating
• Short Circuit, Over Load, and Over Voltage Protection
• Protection Class I or Class II
• RoHS and REACH Compliant
• Internal EN55032 Class B Filter
• IEC/EN/UL 60950-1, 62368-1 Safety Approvals
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSTAD30-S33B | Input Voltage: 85~264 | Output Voltage: 3.3 | Output Current: 6A | Output Power (W): 20 | No. Outputs: S | Case: Open Frame | Size: 3.34" x 1.36" x 0.77" | Get a Quote |
| PSTAD30-S33B-D | Input Voltage: 85~264 | Output Voltage: 3.3 | Output Current: 6A | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2.88" x 1.36" x 0.95" | Get a Quote |
| PSTAD30-S05B | Input Voltage: 85~264 | Output Voltage: 5 | Output Current: 6A | Output Power (W): 30 | No. Outputs: S | Case: Open Frame | Size: 3.34" x 1.36" x 0.77" | Get a Quote |
| PSTAD30-S75B | Input Voltage: 85~264 | Output Voltage: 7.5 | Output Current: 4A | Output Power (W): 30 | No. Outputs: S | Case: Open Frame | Size: 3.34" x 1.36" x 0.77" | Get a Quote |
| PSTAD30-S09B | Input Voltage: 85~264 | Output Voltage: 9 | Output Current: 3.34A | Output Power (W): 30 | No. Outputs: S | Case: Open Frame | Size: 3.34" x 1.36" x 0.77" | Get a Quote |
| PSTAD30-S12B | Input Voltage: 85~264 | Output Voltage: 12 | Output Current: 2.5A | Output Power (W): 30 | No. Outputs: S | Case: Open Frame | Size: 3.34" x 1.36" x 0.77" | Get a Quote |
| PSTAD30-S121B | Input Voltage: 85~264 | Output Voltage: 12 | Output Current: 2.5A | Output Power (W): 30 | No. Outputs: S | Case: Open Frame | Size: 3.34" x 1.36" x 0.77" | Get a Quote |
| PSTAD30-S15B | Input Voltage: 85~264 | Output Voltage: 15 | Output Current: 2A | Output Power (W): 30 | No. Outputs: S | Case: Open Frame | Size: 3.34" x 1.36" x 0.77" | Get a Quote |
| PSTAD30-S151B | Input Voltage: 85~264 | Output Voltage: 15 | Output Current: 2A | Output Power (W): 30 | No. Outputs: S | Case: Open Frame | Size: 3.34" x 1.36" x 0.77" | Get a Quote |
| PSTAD30-S18B | Input Voltage: 85~264 | Output Voltage: 18 | Output Current: 1.67A | Output Power (W): 30 | No. Outputs: S | Case: Open Frame | Size: 3.34" x 1.36" x 0.77" | Get a Quote |
| PSTAD30-S24B | Input Voltage: 85~264 | Output Voltage: 24 | Output Current: 1.25A | Output Power (W): 30 | No. Outputs: S | Case: Open Frame | Size: 3.34" x 1.36" x 0.77" | Get a Quote |
| PSTAD30-S28B | Input Voltage: 85~264 | Output Voltage: 28 | Output Current: 1.08A | Output Power (W): 30 | No. Outputs: S | Case: Open Frame | Size: 3.34" x 1.36" x 0.77" | Get a Quote |
| PSTAD30-S36B | Input Voltage: 85~264 | Output Voltage: 36 | Output Current: 0.84A | Output Power (W): 30 | No. Outputs: S | Case: Open Frame | Size: 3.34" x 1.36" x 0.77" | Get a Quote |
| PSTAD30-S48B | Input Voltage: 85~264 | Output Voltage: 48 | Output Current: 0.63A | Output Power (W): 30 | No. Outputs: S | Case: Open Frame | Size: 3.34" x 1.36" x 0.77" | Get a Quote |
| PSTAD30-S53B | Input Voltage: 85~264 | Output Voltage: 53 | Output Current: 0.58A | Output Power (W): 30 | No. Outputs: S | Case: Open Frame | Size: 3.34" x 1.36" x 0.77" | Get a Quote |
| PSTAD30-S05B-D | Input Voltage: 85~264 | Output Voltage: 5 | Output Current: 6A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2.88" x 1.36" x 0.95" | Get a Quote |
| PSTAD30-S75B-D | Input Voltage: 85~264 | Output Voltage: 7.5 | Output Current: 4A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2.88" x 1.36" x 0.95" | Get a Quote |
| PSTAD30-S09B-D | Input Voltage: 85~264 | Output Voltage: 9 | Output Current: 3.34A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2.88" x 1.36" x 0.95" | Get a Quote |
| PSTAD30-S12B-D | Input Voltage: 85~264 | Output Voltage: 12 | Output Current: 2.5A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2.88" x 1.36" x 0.95" | Get a Quote |
| PSTAD30-S121B-D | Input Voltage: 85~264 | Output Voltage: 12 | Output Current: 2.5A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2.88" x 1.36" x 0.95" | Get a Quote |
| PSTAD30-S15B-D | Input Voltage: 85~264 | Output Voltage: 15 | Output Current: 2.5A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2.88" x 1.36" x 0.95" | Get a Quote |
| PSTAD30-S151B-D | Input Voltage: 85~264 | Output Voltage: 15 | Output Current: 2A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2.88" x 1.36" x 0.95" | Get a Quote |
| PSTAD30-S18B-D | Input Voltage: 85~264 | Output Voltage: 18 | Output Current: 1.67A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2.88" x 1.36" x 0.95" | Get a Quote |
| PSTAD30-S24B-D | Input Voltage: 85~264 | Output Voltage: 24 | Output Current: 1.25A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2.88" x 1.36" x 0.95" | Get a Quote |
| PSTAD30-S28B-D | Input Voltage: 85~264 | Output Voltage: 28 | Output Current: 1.08A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2.88" x 1.36" x 0.95" | Get a Quote |
| PSTAD30-S36B-D | Input Voltage: 85~264 | Output Voltage: 36 | Output Current: 0.84A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2.88" x 1.36" x 0.95" | Get a Quote |
| PSTAD30-S48B-D | Input Voltage: 85~264 | Output Voltage: 48 | Output Current: 0.63A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2.88" x 1.36" x 0.95" | Get a Quote |
| PSTAD30-S53B-D | Input Voltage: 85~264 | Output Voltage: 53 | Output Current: 0.58A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2.88" x 1.36" x 0.95" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 85~264 |
| Input Frequency: | 47 to 63Hz |
| Output | |
| Output Voltage: | 3.3, 5, 7.5, 9, 12, 15, 18, 24, 28, 36, 48, 53 |
| Voltage Accuracy: | ±1.0% |
| Output Current: | 0.58A, 0.63A, 0.84A, 1.08A, 1.25A, 1.67A, 2A, 2.5A, 3.34A, 4A, 6A |
| Output Power (Watts): | 20, 30 |
| Short Circuit Protection: | Continuous, Automatic Recovery |
| Over Voltage Protection: | 125-140% |
| General | |
| Efficiency: | Up to 91.5% |
| Isolation: | 3000VAC |
| Environmental | |
| Operating Temperature: | -40 to +85°C |
| Storage Temperature: | -40 to +85°C |
| Physical | |
| Weight: | Connector Type: 2.13oz (60.5g) Pin Type: 2.05oz (58.0g) |

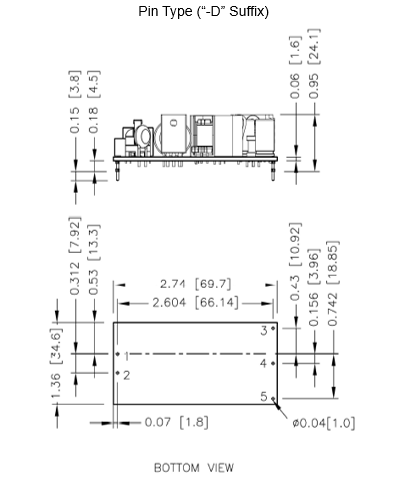

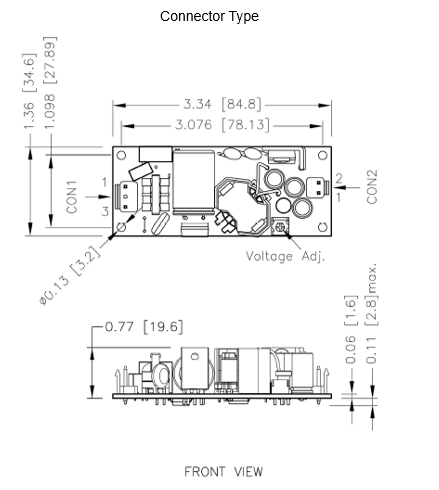

| Dimensions: | Connector Type: 3.34in x 1.36in x 0.77in (84.8mm x 34.6mm x 19.6mm) Pin Type: 2.88in x 1.36in x 0.95in (73.3mm x 34.6mm x 24.1mm) |
| Notes & safety | |
| Notes: | 1. Several options are available for this series. See data sheet for all available options. 2. This product is listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | IEC/EN/UL 60950-1, 62368-1 |
| RoHS Compliance: | Yes |
