PSSUU150
The PSSUU150 series of AC/DC switching mode power supplies provides 150 Watts of continuous output power in a compact, U frame constructed design. This series has single output supplies with a universal input range of 90~264VAC. These units are ideally suited for use in disc drive systems, microprocessor based systems, portable equipment, and many other applications. All models meet FCC Part-15 class B and CISPR-22 class B emission limits. These supplies also comply with UL/cUL (UL 60950-1), TUV/Bauart (EN 60950-1), and new CE requirements. All units are 100% burn-in tested.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSSUU150-104 | Input Voltage: 90~264 | Output Voltage: 9 | Output Current: 16 A | Output Power (W): 144 | No. Outputs: S | Case: U-Chassis | Size: 5" x 3.21" x 1.62" | Get a Quote |
| PSSUU150-105 | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 12.5 A | Output Power (W): 150 | No. Outputs: S | Case: U-Chassis | Size: 5" x 3.21" x 1.62" | Get a Quote |
| PSSUU150-106 | Input Voltage: 90~264 | Output Voltage: 15 | Output Current: 10A | Output Power (W): 150 | No. Outputs: S | Case: U-Chassis | Size: 5" x 3.21" x 1.62" | Get a Quote |
| PSSUU150-107 | Input Voltage: 90~264 | Output Voltage: 18 | Output Current: 8.33 A | Output Power (W): 150 | No. Outputs: S | Case: U-Chassis | Size: 5" x 3.21" x 1.62" | Get a Quote |
| PSSUU150-108 | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 6.25 A | Output Power (W): 150 | No. Outputs: S | Case: U-Chassis | Size: 5" x 3.21" x 1.62" | Get a Quote |
| PSSUU150-108-27V | Input Voltage: 90~264 | Output Voltage: 27 | Output Current: 5.5 A | Output Power (W): 150 | No. Outputs: S | Case: U-Chassis | Size: 5" x 3.21" x 1.62" | Get a Quote |
| PSSUU150-109 | Input Voltage: 90~264 | Output Voltage: 30 | Output Current: 5A | Output Power (W): 150 | No. Outputs: S | Case: U-Chassis | Size: 5" x 3.21" x 1.62" | Get a Quote |
| PSSUU150-110 | Input Voltage: 90~264 | Output Voltage: 36 | Output Current: 4.17 A | Output Power (W): 150 | No. Outputs: S | Case: U-Chassis | Size: 5" x 3.21" x 1.62" | Get a Quote |
| PSSUU150-111 | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 3.13 A | Output Power (W): 150 | No. Outputs: S | Case: U-Chassis | Size: 5" x 3.21" x 1.62" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| PFC: | Yes |
| Input Frequency: | 47-63 Hz |
| Output | |
| Output Voltage: | 9, 12, 15, 18, 24, 27, 30, 36, 48 |
| Output Current: | 3.13A, 4.17A, 5A, 6.25A, 8.33A, 10A, 12.5A, 16A |
| Output Power (Watts): | 144, 150 |
| Over Voltage Protection: | 112%-132% |
| General | |
| Efficiency: | 88% |
| Isolation: | 4242VDC |
| Environmental | |
| Operating Temperature: | 0 to 70°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | 1.23 lb. |

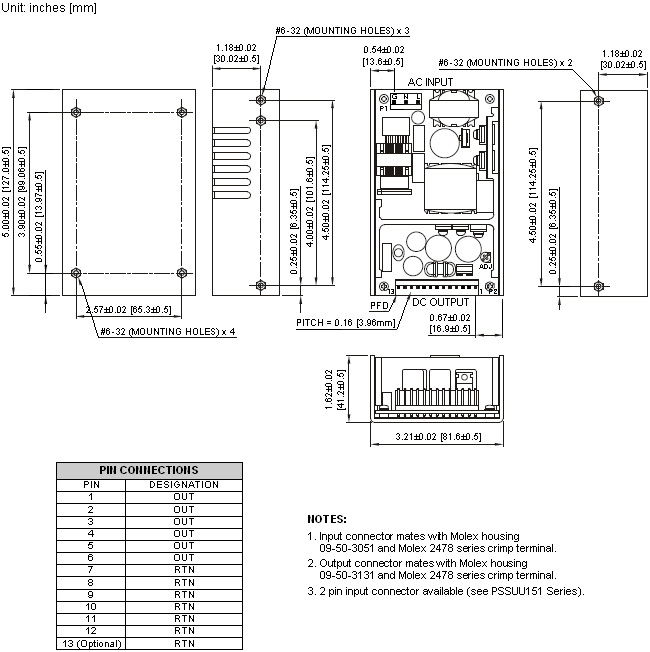

| Dimensions: | 5" x 3.21" x 1.62" (127 x 81.6 x 41.16 mm) |
| Notes & safety | |
| Notes: | 1. Input connector mates with Molex housing 09-50-3051 and Molex 2478 series crimp terminal. 2. Output connector mates with Molex housing 09-50-3131 and Molex 2478 series crimp terminal. 3. 2 pin input connector available: See PSSUU151 Series. 4. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| RoHS Compliance: | Yes |
| TUV Efficiency Level: | TUV/Bauart EN60950-1 |
