PSSUU100
The PSSUU100 series of AC/DC switching mode power supplies provides 100 Watts of continuous output power in a compact, U-frame constructed design. This series has single output supplies with a universal input range of 90~264VAC. These units are ideally suited for use in disc drive systems, microprocessor based systems, portable equipment, and many other applications. All models meet FCC Part-15 class B and CISPR-22 class B emission limits. These supplies also comply with UL/cUL (UL 60950-1), TUV/Bauart (EN 60950-1), and new CE requirements. All units are 100% burn-in tested.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSSUU100-101 | Input Voltage: 90~264 | Output Voltage: 3 | Output Current: 18 A | Output Power (W): 54 | No. Outputs: S | Case: U-Chassis | Size: 5" x 3.2" x 1.19" | Get a Quote |
| PSSUU100-102 | Input Voltage: 90~264 | Output Voltage: 5 | Output Current: 14 A | Output Power (W): 70 | No. Outputs: S | Case: U-Chassis | Size: 5" x 3.2" x 1.19" | Get a Quote |
| PSSUU100-103 | Input Voltage: 90~264 | Output Voltage: 6 | Output Current: 13.33 A | Output Power (W): 80 | No. Outputs: S | Case: U-Chassis | Size: 5" x 3.2" x 1.19" | Get a Quote |
| PSSUU100-104 | Input Voltage: 90~264 | Output Voltage: 9 | Output Current: 11.11 A | Output Power (W): 100 | No. Outputs: S | Case: U-Chassis | Size: 5" x 3.2" x 1.19" | Get a Quote |
| PSSUU100-105 | Input Voltage: 90~264 | Output Voltage: 11 | Output Current: 9.09 A | Output Power (W): 100 | No. Outputs: S | Case: U-Chassis | Size: 5" x 3.2" x 1.19" | Get a Quote |
| PSSUU100-106 | Input Voltage: 90~264 | Output Voltage: 13 | Output Current: 7.69 A | Output Power (W): 100 | No. Outputs: S | Case: U-Chassis | Size: 5" x 3.2" x 1.19" | Get a Quote |
| PSSUU100-107 | Input Voltage: 90~264 | Output Voltage: 16 | Output Current: 6.25 A | Output Power (W): 100 | No. Outputs: S | Case: U-Chassis | Size: 5" x 3.2" x 1.19" | Get a Quote |
| PSSUU100-108 | Input Voltage: 90~264 | Output Voltage: 21 | Output Current: 4.76 A | Output Power (W): 100 | No. Outputs: S | Case: U-Chassis | Size: 5" x 3.2" x 1.19" | Get a Quote |
| PSSUU100-109 | Input Voltage: 90~264 | Output Voltage: 27 | Output Current: 3.7 A | Output Power (W): 100 | No. Outputs: S | Case: U-Chassis | Size: 5" x 3.2" x 1.19" | Get a Quote |
| PSSUU100-110 | Input Voltage: 90~264 | Output Voltage: 33 | Output Current: 3.03 A | Output Power (W): 100 | No. Outputs: S | Case: U-Chassis | Size: 5" x 3.2" x 1.19" | Get a Quote |
| PSSUU100-111 | Input Voltage: 90~264 | Output Voltage: 40 | Output Current: 2.5 A | Output Power (W): 100 | No. Outputs: S | Case: U-Chassis | Size: 5" x 3.2" x 1.19" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47-63 Hz |
| Output | |
| Output Voltage: | 3, 5, 6, 9, 11, 13, 16, 21, 27, 33, 40 |
| Output Current: | 2.5A, 3.03A, 3.7A, 4.76A, 6.25A, 7.69A, 9.09A, 11.11A, 13.33A, 14A, 18A |
| Output Power (Watts): | 54, 70, 80, 100 |
| Over Voltage Protection: | 112%-132% |
| General | |
| Efficiency: | 80% |
| Isolation: | 4242VDC |
| Environmental | |
| Operating Temperature: | 0 to 70°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | 1.05 lb. |

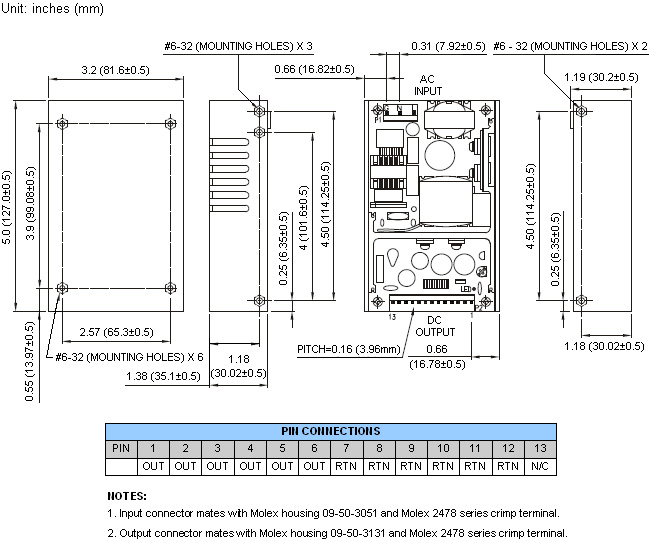

| Dimensions: | 5" x 3.2" x 1.19" (127 x 81.6 x 30.2 mm) |
| Notes & safety | |
| Notes: | 1. Input connector mates with Molex housing 09-50-3051 and Molex 2478 series crimp terminal. 2. Output connector mates with Molex housing 09-50-3131 and Molex 2478 series crimp terminal. 3. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| RoHS Compliance: | Yes |
| TUV Efficiency Level: | TUV/Bauart EN60950-1 |
