PSSNP-Z08
The PSSNP-Z08 series of AC/DC open frame power supplies offers rated output power of 85 watts and a a peak output power of 135 watts in a 4.5” x 2.5” x 1.18” package. This series consists of singe, dual, and triple output models with a wide input voltage range of 90-264VAC. Each model in this series has high efficiency as well as short circuit, over load and over voltage protection. This series also has UL 60950-1, UL 60601-1, CSA C22.2 No. 60950-1, 601.1, EN 60950-1, and EN 60601-1 safety approvals.
• Input Voltage Range of 90-264VAC
• High Efficiency
• Peak Output Power of 135 Watts
• ITE & Medical Safety
• Short Circuit, Over Load, and Over Voltage Protection
• UL 60950-1, UL 60601-1, CSA C22.2 No. 60950-1, 601.1, EN 60950-1, and EN 60601-1 Safety Approvals
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSSNP-Z086 | Input Voltage: 90~264 | Output Voltage: 5 | Output Current: 15A | Output Power (W): 85 | No. Outputs: S | Case: Open Frame | Size: 4.5" x 2.5" x 1.18" | Get a Quote |
| PSSNP-Z087-1 | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 7A | Output Power (W): 85 | No. Outputs: S | Case: Open Frame | Size: 4.5" x 2.5" x 1.18" | Get a Quote |
| PSSNP-Z089-1 | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 3.75A | Output Power (W): 85 | No. Outputs: S | Case: Open Frame | Size: 4.5" x 2.5" x 1.18" | Get a Quote |
| PSSNP-Z08T | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 1.88A | Output Power (W): 85 | No. Outputs: S | Case: Open Frame | Size: 4.5" x 2.5" x 1.18" | Get a Quote |
| PSSNP-Z083 | Input Voltage: 90~264 | Output Voltage: 5, 12 | Output Current: 6A, 4A | Output Power (W): 85 | No. Outputs: D | Case: Open Frame | Size: 4.5" x 2.5" x 1.18" | Get a Quote |
| PSSNP-Z087 | Input Voltage: 90~264 | Output Voltage: 12, 5 | Output Current: 6.5A, 0.5A | Output Power (W): 85 | No. Outputs: D | Case: Open Frame | Size: 4.5" x 2.5" x 1.18" | Get a Quote |
| PSSNP-Z089 | Input Voltage: 90~264 | Output Voltage: 24, 5 | Output Current: 3.6A, 0.5A | Output Power (W): 85 | No. Outputs: D | Case: Open Frame | Size: 4.5" x 2.5" x 1.18" | Get a Quote |
| PSSNP-Z081 | Input Voltage: 90~264 | Output Voltage: 5, 12, -12 | Output Current: 6A, 4A, 0.5A | Output Power (W): 85 | No. Outputs: T | Case: Open Frame | Size: 4.5" x 2.5" x 1.18" | Get a Quote |
| PSSNP-Z08F | Input Voltage: 90~264 | Output Voltage: 5, 24, 12 | Output Current: 6A, 2A, 0.5A | Output Power (W): 85 | No. Outputs: T | Case: Open Frame | Size: 4.5" x 2.5" x 1.18" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47 to 63Hz |
| Output | |
| Output Voltage: | -12, 5, 12, 24, 48 |
| Voltage Accuracy: | See Datasheet |
| Output Current: | 0.5A, 1.88A, 2A, 3.6A, 3.75A, 4A, 6A, 6.5A7A, 15A |
| Output Power (Watts): | 85 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | Latch Off |
| General | |
| Efficiency: | 81 - 87% |
| Environmental | |
| Operating Temperature: | 0 to 70ºC |
| Storage Temperature: | -40 to 85ºC |
| Physical | |
| Weight: | 8.29oz (235g) |

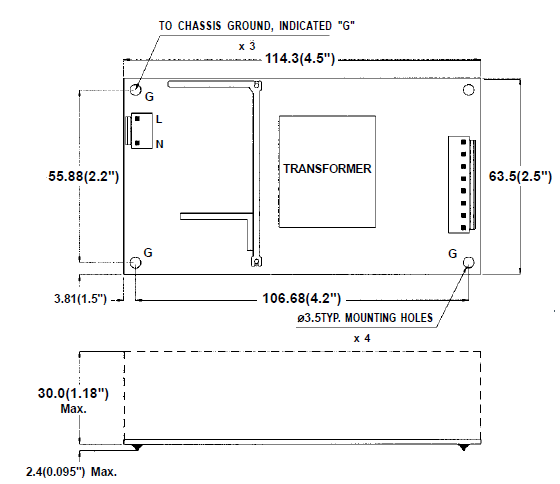

| Dimensions: | 4.5in x 2.5in x 1.18in |
| Notes & safety | |
| Notes: | 1. At factory, all outputs in 60% rated load condition, each output is checked to be within the accuracy range while the main output is set to within the specified accuracy range at rated load. 2. At peak load, the output can last for 8 seconds without shutting down. 3. Line regulation is defined by changing ±10% of input voltage from nominal line at rated load. 4. Load regulation is defined by changing ±40% of measured output load from 60% rated load at another output set to 60% rated load. 5. Ripple & Noise is measured by using 15MHz bandwidth limited oscilloscope and terminated each output with a 0.47uF capacitor at rated load and nominal line. 6. Hold up time is measured from the end of the last charging pulse to the time which the main output drops down to regulation limit at rated load and nominal line. 7. Efficiency is measured at nominal line and rated load. 8. Model Selection: PSSNP-Z08x is for both ITE application and medical application PSSNP-Z086 is for medical use only. 9. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL 60950-1, UL 60601-1, CSA C22.2 No. 60950-1, 601.1, EN 60950-1 , EN 60601-1 |
