PSSNP-Y11
The PSSNP-Y11 series of AC/DC open frame power supplies offers rated output power of 110 watts and peak output power of 160 watts in a 6” x 3.5” x 1.42” package. This series consists of single, dual, triple, and quad outputs with an input voltage range of 90 to 264VAC. Each model in this series has short circuit, over load, and over voltage protection and is useful in both medical and ITE applications. This series has UL 60905-1, UL 60601-1, CSA C22.2 No. 60905-1, 601.1, EN60950-1, and EN60601-1 safety approvals.
• Input Voltage Range of 90 to 264VAC
• ITE and Medical Safety
• Single Side PCB
• Useful in Medical or Dental Equipment or ITE Equipment
• Single, Dual, Triple, or Quad Outputs
• Short Circuit, Over Load, and Over Voltage Protection
• Rated Output Power of 110W, Peak Output Power of 160 Watts
• UL 60950-1, UL 60601-1, CSA C22.2 No. 60950-1, 601.1, EN60950-1, and EN 60601-1 Safety Approvals
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSSNP-Y116 | Input Voltage: 90~264 | Output Voltage: 5 | Output Current: 19A | Output Power (W): 110 | No. Outputs: S | Case: Open Frame | Size: 6" x 3.5" x 1.42" | Get a Quote |
| PSSNP-Y117-1 | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 9A | Output Power (W): 110 | No. Outputs: S | Case: Open Frame | Size: 6" x 3.5" x 1.42" | Get a Quote |
| PSSNP-Y118-1 | Input Voltage: 90~264 | Output Voltage: 15 | Output Current: 7A | Output Power (W): 110 | No. Outputs: S | Case: Open Frame | Size: 6" x 3.5" x 1.42" | Get a Quote |
| PSSNP-Y119-1 | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 4.5A | Output Power (W): 110 | No. Outputs: S | Case: Open Frame | Size: 6" x 3.5" x 1.42" | Get a Quote |
| PSSNP-Y11T | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 2.3A | Output Power (W): 110 | No. Outputs: S | Case: Open Frame | Size: 6" x 3.5" x 1.42" | Get a Quote |
| PSSNP-Y117 | Input Voltage: 90~264 | Output Voltage: 12, 5 | Output Current: 8.5A, 1A | Output Power (W): 110 | No. Outputs: D | Case: Open Frame | Size: 6" x 3.5" x 1.42" | Get a Quote |
| PSSNP-Y118 | Input Voltage: 90~264 | Output Voltage: 15, 5 | Output Current: 7A, 1A | Output Power (W): 110 | No. Outputs: D | Case: Open Frame | Size: 6" x 3.5" x 1.42" | Get a Quote |
| PSSNP-Y119 | Input Voltage: 90~264 | Output Voltage: 24, 5 | Output Current: 4.5A, 1A | Output Power (W): 110 | No. Outputs: D | Case: Open Frame | Size: 6" x 3.5" x 1.42" | Get a Quote |
| PSSNP-Y111 | Input Voltage: 90~264 | Output Voltage: 5, 12, -12 | Output Current: 7A, 5A, 0.5A | Output Power (W): 110 | No. Outputs: T | Case: Open Frame | Size: 6" x 3.5" x 1.42" | Get a Quote |
| PSSNP-Y11E | Input Voltage: 90~264 | Output Voltage: 3.3, 5, 12, -12 | Output Current: 10A, 8A, 2A, 0.2A | Output Power (W): 110 | No. Outputs: M | Case: Open Frame | Size: 6" x 3.5" x 1.42" | Get a Quote |
| PSSNP-Y110 | Input Voltage: 90~264 | Output Voltage: 5, 12, -12, -5 | Output Current: 6A, 5A, 0.5A, 0.5A | Output Power (W): 110 | No. Outputs: M | Case: Open Frame | Size: 6" x 3.5" x 1.42" | Get a Quote |
| PSSNP-Y11F | Input Voltage: 90~264 | Output Voltage: 5, 24, 12, -12 | Output Current: 6A, 2A, 2A, 0.3A | Output Power (W): 110 | No. Outputs: M | Case: Open Frame | Size: 6" x 3.5" x 1.42" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47 to 63Hz |
| Output | |
| Output Voltage: | -12, -5, 3.3, 5, 12, 15, 24, 48 |
| Voltage Accuracy: | See Datasheet |
| Output Current: | 0.2A, 0.3A, 0.5A, 1A, 2A, 2.3A, 4.5A, 5A, 6A, 7A, 8A, 8.5A, 9A, 10A, 19A |
| Output Power (Watts): | 110 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | Latch Off |
| General | |
| Efficiency: | 78 - 87% |
| Environmental | |
| Operating Temperature: | 0 to 70ºC |
| Storage Temperature: | -40 to 85ºC |
| Physical | |
| Weight: | 12.70oz (360g) |

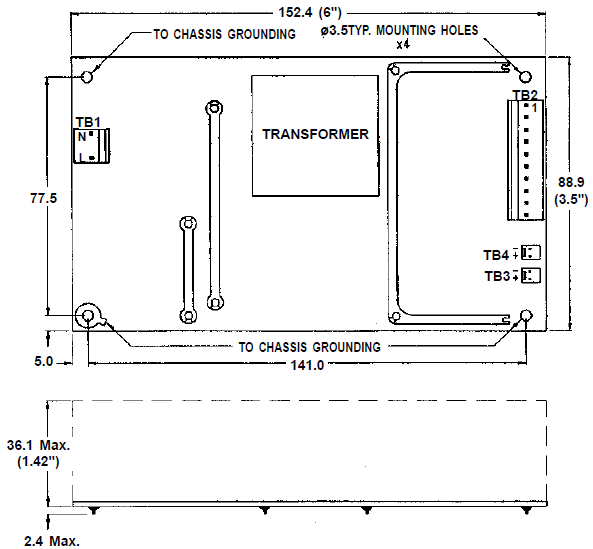

| Dimensions: | 6in x 3.5in x 1.42in |
| Notes & safety | |
| Notes: | 1. At peak load, output can last for 8 seconds without shut down. 2. At factory, all outputs in 60% rated load condition, each output is checked to be within the accuracy range while the main output is set to within the specified accuracy range at rated load. 3. PSSNP-Y09x is for both ITE and Medical Applications 4. Line regulation is defined by changing ±10% of input voltage from nominal line at rated load. 5. Load regulation is defined by changing ±40% of measured output load from 60% rated load at another output set to 60% rated load. 6. Ripple and Noise is measured by using 15MHz bandwidth limited oscilloscope and terminated each output with a 0.47uF capacitor at rated load and nominal line. 7. Hold up time is measured from the end of the last charging pulse to the time which the main output drops down to regulation limit at rated load and nominal line. 8. Efficiency is measured at nominal line and rated load. 9. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL 60950-1, UL60601-1, CSA C22.2 No. 60905-1, 601.1, EN 60950-1, EN60601-1 |
