PSSNP-Y04
The PSSNP-Y04 series of AC/DC open frame power supplies offers rated output power of 45 watts and a peak output power of 60 watts in a 3.98” x 2” x 1.10” package. This series consists of singe, dual, and triple output models with a wide input voltage range from 90-264VAC. Each model in this series has high efficiency, single side PCB, as well as over load, over voltage, and short circuit protection. This series has UL/CSA/EN 60950-1 2nd edition and ANSI/AAMI/CSA/EN 60601-1 3rd edition +A1 safety approvals.
• Input Voltage Range from 90-264VAC
• Single, Dual, and Triple Output Models
• High Efficiency
• Single Side PCB for Low Assembly Cost
• Over Load, Over Voltage, and Short Circuit Protection
• Useful in Medical and Dental Applications and ITE Applications
• UL/CSA/EN 60950-1, 2nd Edition and ANSI/AAMI/CSA/EN 60601-1 3rd Edition + A1 Safety Approvals
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSSNP-Y046 | Input Voltage: 90~264 | Output Voltage: 5 | Output Current: 7A | Output Power (W): 45 | No. Outputs: S | Case: Open Frame | Size: 3.98" x 2" x 1.1" | Get a Quote |
| PSSNP-Y047-1 | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 3.3A | Output Power (W): 45 | No. Outputs: S | Case: Open Frame | Size: 3.98" x 2" x 1.1" | Get a Quote |
| PSSNP-Y048-1 | Input Voltage: 90~264 | Output Voltage: 15 | Output Current: 3A | Output Power (W): 45 | No. Outputs: S | Case: Open Frame | Size: 3.98" x 2" x 1.1" | Get a Quote |
| PSSNP-Y049-1 | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 1.9A | Output Power (W): 45 | No. Outputs: S | Case: Open Frame | Size: 3.98" x 2" x 1.1" | Get a Quote |
| PSSNP-Y04T | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 1A | Output Power (W): 45 | No. Outputs: S | Case: Open Frame | Size: 3.98" x 2" x 1.1" | Get a Quote |
| PSSNP-Y043 | Input Voltage: 90~264 | Output Voltage: 5, 12 | Output Current: 3A, 2.3A | Output Power (W): 45 | No. Outputs: D | Case: Open Frame | Size: 3.98" x 2" x 1.1" | Get a Quote |
| PSSNP-Y047 | Input Voltage: 90~264 | Output Voltage: 12, 5 | Output Current: 3.3A, 0.5A | Output Power (W): 45 | No. Outputs: D | Case: Open Frame | Size: 3.98" x 2" x 1.1" | Get a Quote |
| PSSNP-Y048 | Input Voltage: 90~264 | Output Voltage: 15, 5 | Output Current: 2.6A, 0.5A | Output Power (W): 45 | No. Outputs: D | Case: Open Frame | Size: 3.98" x 2" x 1.1" | Get a Quote |
| PSSNP-Y049 | Input Voltage: 90~264 | Output Voltage: 24, 5 | Output Current: 1.7A, 0.5A | Output Power (W): 45 | No. Outputs: D | Case: Open Frame | Size: 3.98" x 2" x 1.1" | Get a Quote |
| PSSNP-Y041 | Input Voltage: 90~264 | Output Voltage: 5, 12, -12 | Output Current: 3A, 2A, 0.3A | Output Power (W): 45 | No. Outputs: T | Case: Open Frame | Size: 3.98" x 2" x 1.1" | Get a Quote |
| PSSNP-Y04F | Input Voltage: 90~264 | Output Voltage: 5, 24, 12 | Output Current: 3A, 1A, 0.3A | Output Power (W): 45 | No. Outputs: T | Case: Open Frame | Size: 3.98" x 2" x 1.1" | Get a Quote |
| PSSNP-Y04D | Input Voltage: 90~264 | Output Voltage: 3.3, 5, 12 | Output Current: 4A, 3A, 0.3A | Output Power (W): 45 | No. Outputs: T | Case: Open Frame | Size: 3.98" x 2" x 1.1" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47 to 63Hz |
| Output | |
| Output Voltage: | -12, 3.3, 5, 12, 15, 24, 48 |
| Voltage Accuracy: | See Datasheet |
| Output Current: | 0.3A, 0.5A, 1A, 1.7A, 1.9A, 2A, 2.3A, 2.6A, 3A, 3.3A, 4A, 7A |
| Output Power (Watts): | 45 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | Latch Off |
| General | |
| Efficiency: | 76 - 85% |
| Environmental | |
| Operating Temperature: | 0 to 70ºC |
| Storage Temperature: | -40 to 85ºC |
| Physical | |
| Weight: | Approx. 4.48oz (127g) |

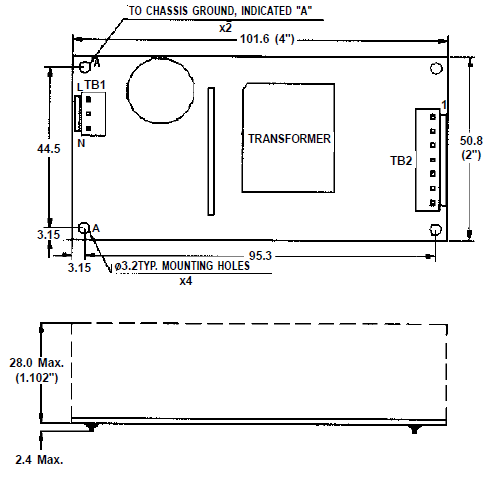

| Dimensions: | 3.98in x 2in x 1.10in |
| Notes & safety | |
| Notes: | 1. At peak load, output can last for 8 seconds without shutting down. 2. The maximum combined load of PSSNP-Y04D for +3.3V & +5V is 28W. 3. At factory, all outputs in 60% rated load condition, each output is checked to be within the accuracy range while the main output is set within specified accuracy range at rated load. 4. Line regulation is defined by changing ±10% of input voltage from nominal line at rated load. 5. Load regulation is defined by changing ±40% of measured output load from 60% rated load at another output set to 60% rated load. 6. Ripple & Noise is measured by using 15MHz bandwidth limited oscilloscope and terminated each output with 0.47uF capacitor at rated load and nominal line. 7. Hold up time is measured from the end of the last charging pulse to the time which the main output drops down to regulation limit at rated load and nominal line. 8. PSSNP-Y04x is for both ITE and medical applications. 9. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/CSA/EN 60950-1, 2nd Edition, ANSI/AAMI/CSA/EN 60601-1 3rd Edition + A1 |
