PSSNP-GK6

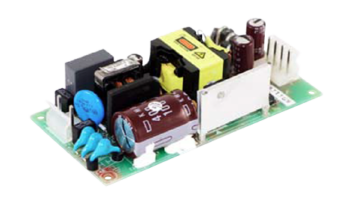

The PSSNP-GK6 series of AC/DC medical open frame power supply offers rated output power of 60 watts and a peak output power of 84 watts in a compact 4” x 2” x 0.97” package. This series has a wide input voltage range of 90 to 264VAC and consists of single output models. Each model in this series has high efficiency between 85% to 89% and over load, short circuit, and over voltage protection. This series has UL/CSA/EN60950-1 2nd edition and ANSI/AMMI/CSA/EN60601-1 3rd edition safety approvals.
• Input Voltage of 90 to 264VAC
• Rated Wattage of 60 and Peak Wattage of 84
• Efficiency Between 85% to 89%
• ITE and Medical Safety
• Useful in Dental, Laboratory Products, Pumps, Monitors etc.
• Over Load, Short Circuit, and Over Voltage Protection
• UL/CSA/EN60950-1 2nd Edition and ANSI/AMMI/CSA/EN60601-1, 3rd Edition Safety Approvals
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSSNP-GK67 | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 5A | Output Power (W): 60 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 0.97" | Get a Quote |
| PSSNP-GK68 | Input Voltage: 90~264 | Output Voltage: 15 | Output Current: 4A | Output Power (W): 60 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 0.97" | Get a Quote |
| PSSNP-GK65 | Input Voltage: 90~264 | Output Voltage: 18 | Output Current: 3.33A | Output Power (W): 60 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 0.97" | Get a Quote |
| PSSNP-GK69 | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 2.50A | Output Power (W): 60 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 0.97" | Get a Quote |
| PSSNP-GK6G | Input Voltage: 90~264 | Output Voltage: 28 | Output Current: 2.14A | Output Power (W): 60 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 0.97" | Get a Quote |
| PSSNP-GK6J | Input Voltage: 90~264 | Output Voltage: 36 | Output Current: 1.66A | Output Power (W): 60 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 0.97" | Get a Quote |
| PSSNP-GK6T | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 1.25A | Output Power (W): 60 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 0.97" | Get a Quote |
| PSSNP-GK6H | Input Voltage: 90~264 | Output Voltage: 60 | Output Current: 1A | Output Power (W): 60 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 0.97" | Get a Quote |
| PSSNP-GK67M | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 5A | Output Power (W): 60 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 0.97" | Get a Quote |
| PSSNP-GK68M | Input Voltage: 90~264 | Output Voltage: 15 | Output Current: 4A | Output Power (W): 60 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 0.97" | Get a Quote |
| PSSNP-GK65M | Input Voltage: 90~264 | Output Voltage: 18 | Output Current: 3.33A | Output Power (W): 60 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 0.97" | Get a Quote |
| PSSNP-GK69M | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 2.50A | Output Power (W): 60 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 0.97" | Get a Quote |
| PSSNP-GK6GM | Input Voltage: 90~264 | Output Voltage: 28 | Output Current: 2.14A | Output Power (W): 60 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 0.97" | Get a Quote |
| PSSNP-GK6JM | Input Voltage: 90~264 | Output Voltage: 36 | Output Current: 1.66A | Output Power (W): 60 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 0.97" | Get a Quote |
| PSSNP-GK6TM | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 1.25A | Output Power (W): 60 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 0.97" | Get a Quote |
| PSSNP-GK6HM | Input Voltage: 90~264 | Output Voltage: 60 | Output Current: 1A | Output Power (W): 60 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 0.97" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47 - 63Hz |
| Output | |
| Output Voltage: | 12, 15, 18, 24, 28, 36, 48, 60 |
| Voltage Accuracy: | See Datasheet |
| Output Current: | 5.00A, 4.00A, 3.33A, 2.50A, 2.14A, 1.66A, 1.25A, 1.00A |
| Output Power (Watts): | 60 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | Latch Off |
| General | |
| Efficiency: | 85-89% |
| Isolation: | Primary to Ground: 1MOPP (1500VAC) Primary to Secondary: 2MOPP (4000VAC) Secondary to Ground: 1MOPP (1500VAC) |
| Environmental | |
| Operating Temperature: | 20 to 70ºC |
| Storage Temperature: | -40 to 85ºC |
| Physical | |
| Weight: | 3.88oz (110g) |

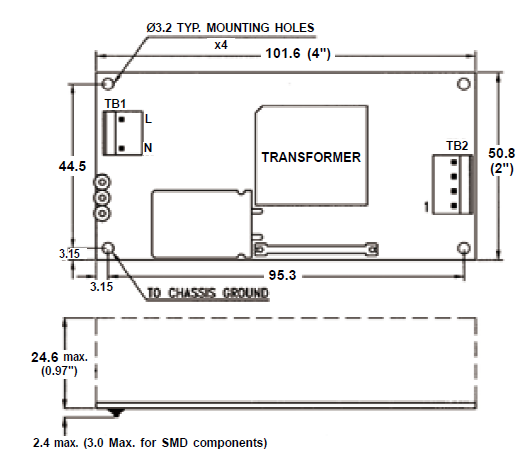

| Dimensions: | 4in x 2in x 0.97in |
| Notes & safety | |
| Notes: | 1. If there is a metal sheet under the power supply, connect the EMI ground to the metal sheet. 2. For computers and displays, energy star in U.S. and ErP regulation in Europe require the input power to be less than 0.5 at standby mode. 3. Peak load can last for 5 seconds. 4. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/CSA/EN60950-1, 2nd Edition, ANSI/AMMI/CSA/EN60601-1, 3rd Edition |
