PSSNP-G20

The PSSNP-G20 series of AC/DC power supplies offers rated output power of 200 watts, max output power of 300 watts, and peak output power of 400 watts. Single outputs are available for this series with output voltages ranging from 12 to 48V and an input voltage range of 90 to 264VAC. This series is protected against over load, short circuit, and over voltage conditions and has high average efficiency up to 88%. Both burst mode and standby mode are options for this series and either a u-shaped case or metal box case are available. This series has UL/CSA/EN60950-1 2^nd Edition, ANSI/AMMI/CSA/EN60601-1 3.1 Edition, CB report, CE mark, and RM report safety approvals. Please call factory for order details.

• Safety Class II • High Mechanical Torque Start-Up • Convection Cooling for Rated Load • Forced Air for Max. Load • Output Voltages Ranging from 12V~48V • Energy Star Version 6.0 (for models without A Suffix) • High Average Efficiency up to 88% • U-Shape Case or Metal Box Case Options • Optional Burst Mode • Optional Standby Mode • Over Load, Short Circuit, and Over Voltage Protection • UL/CSA/EN60950-1 2nd Edition, ANSI/AMMI/CSA/EN60601-1 3.1 Edition, CB Report, CE Mark, and RM Report Safety Approvals

Get a Quote Request a Sample Custom Solutions

Models
Specifications

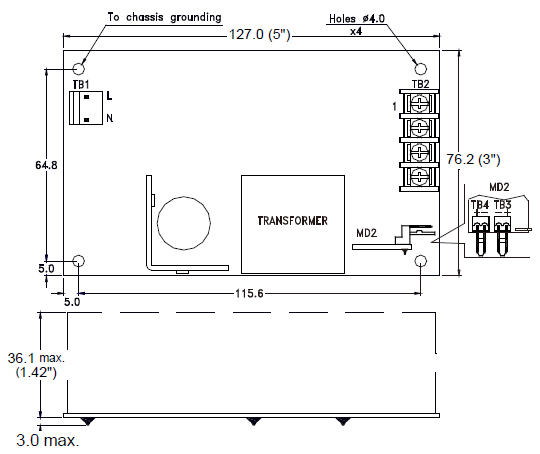

Drawings

Model Number	Input Voltage	Output Voltage	Output Current	Output Power (W)	No. Outputs	Case	Size
PSSNP-G207	Input Voltage: 90~264	Output Voltage: 12	Output Current: 16.5A	Output Power (W): 200	No. Outputs: S	Case: Open Frame	Size: 5" x 3" x 1.42"	Get a Quote
PSSNP-G207-A	Input Voltage: 90~264	Output Voltage: 12	Output Current: 16.5A	Output Power (W): 200	No. Outputs: S	Case: Open Frame	Size: 5" x 3" x 1.42"	Get a Quote
PSSNP-G207-M	Input Voltage: 90~264	Output Voltage: 12	Output Current: 16.5A	Output Power (W): 200	No. Outputs: S	Case: Open Frame	Size: 5" x 3" x 1.42"	Get a Quote
PSSNP-G207-MA	Input Voltage: 90~264	Output Voltage: 12	Output Current: 16.5A	Output Power (W): 200	No. Outputs: S	Case: Open Frame	Size: 5" x 3" x 1.42"	Get a Quote
PSSNP-G208	Input Voltage: 90~264	Output Voltage: 15	Output Current: 12A	Output Power (W): 200	No. Outputs: S	Case: Open Frame	Size: 5" x 3" x 1.42"	Get a Quote
PSSNP-G208-A	Input Voltage: 90~264	Output Voltage: 15	Output Current: 12A	Output Power (W): 200	No. Outputs: S	Case: Open Frame	Size: 5" x 3" x 1.42"	Get a Quote
PSSNP-G208-M	Input Voltage: 90~264	Output Voltage: 15	Output Current: 12A	Output Power (W): 200	No. Outputs: S	Case: Open Frame	Size: 5" x 3" x 1.42"	Get a Quote
PSSNP-G208-MA	Input Voltage: 90~264	Output Voltage: 15	Output Current: 12A	Output Power (W): 200	No. Outputs: S	Case: Open Frame	Size: 5" x 3" x 1.42"	Get a Quote
PSSNP-G205	Input Voltage: 90~264	Output Voltage: 18	Output Current: 11.1A	Output Power (W): 200	No. Outputs: S	Case: Open Frame	Size: 5" x 3" x 1.42"	Get a Quote
PSSNP-G205-A	Input Voltage: 90~264	Output Voltage: 18	Output Current: 11.1A	Output Power (W): 200	No. Outputs: S	Case: Open Frame	Size: 5" x 3" x 1.42"	Get a Quote
PSSNP-G205-M	Input Voltage: 90~264	Output Voltage: 18	Output Current: 11.1A	Output Power (W): 200	No. Outputs: S	Case: Open Frame	Size: 5" x 3" x 1.42"	Get a Quote
PSSNP-G205-MA	Input Voltage: 90~264	Output Voltage: 18	Output Current: 11.1A	Output Power (W): 200	No. Outputs: S	Case: Open Frame	Size: 5" x 3" x 1.42"	Get a Quote
PSSNP-G209	Input Voltage: 90~264	Output Voltage: 24	Output Current: 8.4A	Output Power (W): 200	No. Outputs: S	Case: Open Frame	Size: 5" x 3" x 1.42"	Get a Quote
PSSNP-209-A	Input Voltage: 90~264	Output Voltage: 24	Output Current: 8.4A	Output Power (W): 200	No. Outputs: S	Case: Open Frame	Size: 5" x 3" x 1.42"	Get a Quote
PSSNP-G209-M	Input Voltage: 90~264	Output Voltage: 24	Output Current: 8.4A	Output Power (W): 200	No. Outputs: S	Case: Open Frame	Size: 5" x 3" x 1.42"	Get a Quote
PSSNP-G209-MA	Input Voltage: 90~264	Output Voltage: 24	Output Current: 8.4A	Output Power (W): 200	No. Outputs: S	Case: Open Frame	Size: 5" x 3" x 1.42"	Get a Quote
PSSNP-G20G	Input Voltage: 90~264	Output Voltage: 28	Output Current: 7.2A	Output Power (W): 200	No. Outputs: S	Case: Open Frame	Size: 5" x 3" x 1.42"	Get a Quote
PSSNP-G20G-A	Input Voltage: 90~264	Output Voltage: 28	Output Current: 7.2A	Output Power (W): 200	No. Outputs: S	Case: Open Frame	Size: 5" x 3" x 1.42"	Get a Quote
PSSNP-G20G-M	Input Voltage: 90~264	Output Voltage: 28	Output Current: 7.2A	Output Power (W): 200	No. Outputs: S	Case: Open Frame	Size: 5" x 3" x 1.42"	Get a Quote
PSSNP-G20G-MA	Input Voltage: 90~264	Output Voltage: 28	Output Current: 7.2A	Output Power (W): 200	No. Outputs: S	Case: Open Frame	Size: 5" x 3" x 1.42"	Get a Quote
PSSNP-G20J	Input Voltage: 90~264	Output Voltage: 36	Output Current: 5.6A	Output Power (W): 200	No. Outputs: S	Case: Open Frame	Size: 5" x 3" x 1.42"	Get a Quote
PSSNP-G20J-A	Input Voltage: 90~264	Output Voltage: 36	Output Current: 5.6A	Output Power (W): 200	No. Outputs: S	Case: Open Frame	Size: 5" x 3" x 1.42"	Get a Quote
PSSNP-G20J-M	Input Voltage: 90~264	Output Voltage: 36	Output Current: 5.6A	Output Power (W): 200	No. Outputs: S	Case: Open Frame	Size: 5" x 3" x 1.42"	Get a Quote
PSSNP-G20J-MA	Input Voltage: 90~264	Output Voltage: 36	Output Current: 5.6A	Output Power (W): 200	No. Outputs: S	Case: Open Frame	Size: 5" x 3" x 1.42"	Get a Quote
PSSNP-G20T	Input Voltage: 90~264	Output Voltage: 48	Output Current: 4.2A	Output Power (W): 200	No. Outputs: S	Case: Open Frame	Size: 5" x 3" x 1.42"	Get a Quote
PSSNP-G20T-A	Input Voltage: 90~264	Output Voltage: 48	Output Current: 4.2A	Output Power (W): 200	No. Outputs: S	Case: Open Frame	Size: 5" x 3" x 1.42"	Get a Quote
PSSNP-G20T-M	Input Voltage: 90~264	Output Voltage: 48	Output Current: 4.2A	Output Power (W): 200	No. Outputs: S	Case: Open Frame	Size: 5" x 3" x 1.42"	Get a Quote
PSSNP-G20T-MA	Input Voltage: 90~264	Output Voltage: 48	Output Current: 4.2A	Output Power (W): 200	No. Outputs: S	Case: Open Frame	Size: 5" x 3" x 1.42"	Get a Quote

Specification	Value
Input
Input Voltage (Nominal):	115/230
Input Voltage Range:	90~264
Input Frequency:	47 - 63Hz
Output
Output Voltage:	12, 15, 18, 24, 28, 36, 48
Voltage Accuracy:	See Datasheet
Output Current:	16.5A, 12A, 11.1A, 8.4A, 7.2A, 5.6A, 4.2A
Output Power (Watts):	200
Short Circuit Protection:	Automatic Recovery
Over Voltage Protection:	Latch Off
General
Efficiency:	See Table
Isolation:	Primary to Ground: 1MOPP (1500VAC) Primary to Secondary: 2MOPP (4000VAC) Secondary to Ground: 1MOPP (1500VAC)
Environmental
Operating Temperature:	-20 to 70ºC
Storage Temperature:	-40 to 85ºC
Physical
Weight:	12.45oz (353g)
Dimensions:	5in x 3in x 1.42in
Notes & safety
Notes:	1. Model Selection: -Most of the power supplies will create an audible burst sound at light load, if the application wants to meet input power <0.5 at standby mode. -PSSNP-G20x is for ITE application which requires standby mode. PSSNP-G20x-A is for ITE application but without burst sound and no standby mode. PSSNP-G20x-M is for medical applications which require standby mode. PSSNP-G20x-MA is for medical applications but without burst sound and no standby mode. 2. Standby power consumption with system: For computers and displays, Energy Star in U.S. and ErP regulation in Europe require the input power to be less than 0.5W at standby mode. 3. EMI Grounding: If there is a metal sheet under the power supply, connect the EMI ground to the metal sheet. 4. For models without –A suffix 5. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications are subject to change without notice.
Safety Approvals:	UL/CSA/EN60950-1 2nd Edition, ANSI/AMMI/CSA/EN60601-1, 3.1 Edition CB Report, CE Mark, RM Report/File
Energy Star Compliance:	Version 6.0 For Computers and Displays
