PSSNP-G04
The PSSNP-G04 series of AC/DC open frame power supply offers rated 40 watts, max of 48 watts, and a peak of 56 watts of output power in a compact 3” x 1.75” x 0.91” frame. This series consists of single output models with a wide input range of 90-264VAC. Each model in this series has over load, over voltage and short circuit protection, is compatible to Class I/II safety, and will have efficiency between 84% and 86%. This series also has UL/CSA/IEC60950-1 2nd Edition and ANSI/AAMI/CSA/IEC60601-1 3rd Edition safety approvals. Please call factory for order details.
• Wide Input Range of 90-264VAC
• Compact Size
• Efficiency Between 84%~86%
• Over Load, Over Voltage, and Short Circuit Protection
• Compatible to Class I/II Safety and EMC
• Useful in Dental, Lab Products, Pumps, Monitors, and Other Devices
• UL/CSA/IEC60950-1 2nd Edition, and ANSI/AAMI/CSA/IEC60601-1 3rd Edition Safety Approvals
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSSNP-G047M | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 3.33A | Output Power (W): 40 | No. Outputs: S | Case: Open Frame | Size: 3" x 1.75" x 0.91" | Get a Quote |
| PSSNP-G048M | Input Voltage: 90~264 | Output Voltage: 15 | Output Current: 2.66A | Output Power (W): 40 | No. Outputs: S | Case: Open Frame | Size: 3" x 1.75" x 0.91" | Get a Quote |
| PSSNP-G045M | Input Voltage: 90~264 | Output Voltage: 18 | Output Current: 2.22A | Output Power (W): 40 | No. Outputs: S | Case: Open Frame | Size: 3" x 1.75" x 0.91" | Get a Quote |
| PSSNP-G049M | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 1.66A | Output Power (W): 40 | No. Outputs: S | Case: Open Frame | Size: 3" x 1.75" x 0.91" | Get a Quote |
| PSSNP-G04GM | Input Voltage: 90~264 | Output Voltage: 28 | Output Current: 1.42A | Output Power (W): 40 | No. Outputs: S | Case: Open Frame | Size: 3" x 1.75" x 0.91" | Get a Quote |
| PSSNP-G04JM | Input Voltage: 90~264 | Output Voltage: 36 | Output Current: 1.11A | Output Power (W): 40 | No. Outputs: S | Case: Open Frame | Size: 3" x 1.75" x 0.91" | Get a Quote |
| PSSNP-G04TM | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 0.83A | Output Power (W): 40 | No. Outputs: S | Case: Open Frame | Size: 3" x 1.75" x 0.91" | Get a Quote |
| PSSNP-G047 | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 3.33A | Output Power (W): 40 | No. Outputs: S | Case: Open Frame | Size: 3" x 1.75" x 0.91" | Get a Quote |
| PSSNP-G048 | Input Voltage: 90~264 | Output Voltage: 15 | Output Current: 2.66A | Output Power (W): 40 | No. Outputs: S | Case: Open Frame | Size: 3" x 1.75" x 0.91" | Get a Quote |
| PSSNP-G045 | Input Voltage: 90~264 | Output Voltage: 18 | Output Current: 2.22A | Output Power (W): 40 | No. Outputs: S | Case: Open Frame | Size: 3" x 1.75" x 0.91" | Get a Quote |
| PSSNP-G049 | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 1.66A | Output Power (W): 40 | No. Outputs: S | Case: Open Frame | Size: 3" x 1.75" x 0.91" | Get a Quote |
| PSSNP-G04G | Input Voltage: 90~264 | Output Voltage: 28 | Output Current: 1.42A | Output Power (W): 40 | No. Outputs: S | Case: Open Frame | Size: 3" x 1.75" x 0.91" | Get a Quote |
| PSSNP-G04J | Input Voltage: 90~264 | Output Voltage: 36 | Output Current: 1.11A | Output Power (W): 40 | No. Outputs: S | Case: Open Frame | Size: 3" x 1.75" x 0.91" | Get a Quote |
| PSSNP-G04T | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 0.83A | Output Power (W): 40 | No. Outputs: S | Case: Open Frame | Size: 3" x 1.75" x 0.91" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47 - 63Hz |
| Output | |
| Output Voltage: | 12, 15, 18, 24, 28, 36, 48 |
| Output Current: | 3.33A, 2.66A, 2.22A, 1.66A, 1.42A, 1.11A, 0.83A |
| Output Power (Watts): | 40 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | Latch Off |
| General | |
| Efficiency: | 86% Max. |
| Isolation: | Primary to Ground: 1MOPP (1500VAC) Primary to Secondary: 2MOPP (4000VAC) Secondary to Ground: 1MOPP (1500VAC) |
| Environmental | |
| Operating Temperature: | -20 to 70ºC |
| Storage Temperature: | -40 to 85ºC |
| Physical | |
| Weight: | 3.12oz (88.5g) |

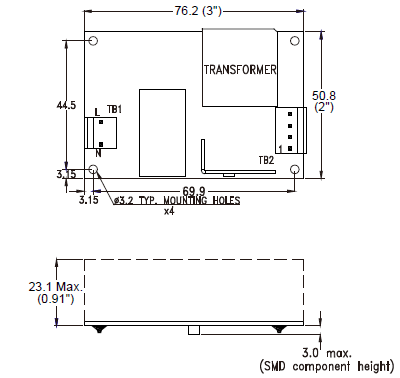

| Dimensions: | 3in x 1.75in x 0.91in |
| Notes & safety | |
| Notes: | 1. Add “M” to the end of model number for medical version. Model number without “M” indicates the ITE application. 2. Output Load: 40W for convection cooling; 48W for forced air cooling. 3. Peak 56W can last for 5 seconds. 4. If there is a metal sheet under the power supply, connect the EMI ground to the metal sheet. 5. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/CSA/IEC60950-1 2nd Edition, ANSI/AMMI/CSA/IEC60601-1 3rd Edition |
