PSSEU60
The PSSEU60 series of Class I AC/DC switching mode power supplies provides up to 63 Watts of continuous output power in a 5.43” x 3.43” x 1.76” enclosed package. This series has single, dual, triple, and quad output models with a wide input voltage range of 90~264VAC. These power supplies have an internal EMI filter and are protected against over load, over voltage, and input surge current conditions. This series also has UL/cUL (UL 60950-1: 2nd edition) safety approvals and meets FCC Part-15 class B and CISPR-22 Class B emission limits. These units are well suited for use in industrial equipment as well as many other applications. All models are 100% burn-in tested.
• Class I
• Single to Quad Outputs
• RoHS Compliant
• Internal EMI Filter
• Up to 63 Watts Output Power
• 100% Burn-in Tested
• Wide Input Voltage Range: 90~264VAC, 47~63Hz
• Output Voltage Available from 3VDC to 50VDC
• Over Voltage Protection (Crowbar Design)
• Input Surge Current, Over Voltage, and Over Load Protection
• 3-Pin Input Connector
• 2-Pin Input Connector Available (See PSSEU61 Series)
• Meets FCC Part-15 Class B and CISPR-22 Class B Emission Limits
• UL/cUL(UL 60950-1:2nd Edition) Safety Approvals
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSSEU60-204 | Input Voltage: 90~264 | Output Voltage: 3.3, 5 | Output Current: 7A, 5A | Output Power (W): 48.1 | No. Outputs: D | Case: Enclosed Case | Size: 5.43" x 3.43" x 1.76" | Get a Quote |
| PSSEU60-101 | Input Voltage: 90~264 | Output Voltage: 3~5 | Output Current: 16.66 ~ 10.00 A | Output Power (W): 50 | No. Outputs: S | Case: Enclosed Case | Size: 5.43" x 3.43" x 1.76" | Get a Quote |
| PSSEU60-308 | Input Voltage: 90~264 | Output Voltage: 3.3, 5, 12 | Output Current: 5A, 5A, 1A | Output Power (W): 53.5 | No. Outputs: T | Case: Enclosed Case | Size: 5.43" x 3.43" x 1.76" | Get a Quote |
| PSSEU60-308-1 | Input Voltage: 90~264 | Output Voltage: 3.3, 5, -12 | Output Current: 5A, 5A, 1A | Output Power (W): 53.5 | No. Outputs: T | Case: Enclosed Case | Size: 5.43" x 3.43" x 1.76" | Get a Quote |
| PSSEU60-102 | Input Voltage: 90~264 | Output Voltage: 5~6 | Output Current: 11.00 ~ 9.16 A | Output Power (W): 55 | No. Outputs: S | Case: Enclosed Case | Size: 5.43" x 3.43" x 1.76" | Get a Quote |
| PSSEU60-200 | Input Voltage: 90~264 | Output Voltage: 3.3, 12 | Output Current: 7A, 3A | Output Power (W): 59.1 | No. Outputs: D | Case: Enclosed Case | Size: 5.43" x 3.43" x 1.76" | Get a Quote |
| PSSEU60-423 | Input Voltage: 90~264 | Output Voltage: 5, 24, -15, 12 | Output Current: 1A, 1.8A, 0.1A, 0.8A | Output Power (W): 59.3 | No. Outputs: M | Case: Enclosed Case | Size: 5.43" x 3.43" x 1.76" | Get a Quote |
| PSSEU60-306 | Input Voltage: 90~264 | Output Voltage: 3.3, 12, -5 | Output Current: 6A, 3A, 0.8A | Output Power (W): 59.8 | No. Outputs: T | Case: Enclosed Case | Size: 5.43" x 3.43" x 1.76" | Get a Quote |
| PSSEU60-306-1 | Input Voltage: 90~264 | Output Voltage: 3.3, 12, 5 | Output Current: 6A, 3A, 0.8A | Output Power (W): 59.8 | No. Outputs: T | Case: Enclosed Case | Size: 5.43" x 3.43" x 1.76" | Get a Quote |
| PSSEU60-103 | Input Voltage: 90~264 | Output Voltage: 6~8 | Output Current: 10.00 ~ 7.50 A | Output Power (W): 60 | No. Outputs: S | Case: Enclosed Case | Size: 5.43" x 3.43" x 1.76" | Get a Quote |
| PSSEU60-307 | Input Voltage: 90~264 | Output Voltage: 3.3, 10, -10 | Output Current: 6A, 2A, 1A | Output Power (W): 60 | No. Outputs: T | Case: Enclosed Case | Size: 5.43" x 3.43" x 1.76" | Get a Quote |
| PSSEU60-307-1 | Input Voltage: 90~264 | Output Voltage: 3.3, 10, 10 | Output Current: 6A, 2A, 1A | Output Power (W): 60 | No. Outputs: T | Case: Enclosed Case | Size: 5.43" x 3.43" x 1.76" | Get a Quote |
| PSSEU60-104 | Input Voltage: 90~264 | Output Voltage: 8~11 | Output Current: 7.87 ~ 5.72 A | Output Power (W): 63 | No. Outputs: S | Case: Enclosed Case | Size: 5.43" x 3.43" x 1.76" | Get a Quote |
| PSSEU60-105 | Input Voltage: 90~264 | Output Voltage: 11~13 | Output Current: 5.72 ~ 4.84 A | Output Power (W): 63 | No. Outputs: S | Case: Enclosed Case | Size: 5.43" x 3.43" x 1.76" | Get a Quote |
| PSSEU60-106 | Input Voltage: 90~264 | Output Voltage: 13~16 | Output Current: 4.84 ~ 3.93 A | Output Power (W): 63 | No. Outputs: S | Case: Enclosed Case | Size: 5.43" x 3.43" x 1.76" | Get a Quote |
| PSSEU60-107 | Input Voltage: 90~264 | Output Voltage: 16~21 | Output Current: 3.93 ~ 3.00 A | Output Power (W): 63 | No. Outputs: S | Case: Enclosed Case | Size: 5.43" x 3.43" x 1.76" | Get a Quote |
| PSSEU60-108 | Input Voltage: 90~264 | Output Voltage: 21~27 | Output Current: 3.00 ~ 2.33 A | Output Power (W): 63 | No. Outputs: S | Case: Enclosed Case | Size: 5.43" x 3.43" x 1.76" | Get a Quote |
| PSSEU60-109 | Input Voltage: 90~264 | Output Voltage: 27~33 | Output Current: 2.33 ~ 1.90 A | Output Power (W): 63 | No. Outputs: S | Case: Enclosed Case | Size: 5.43" x 3.43" x 1.76" | Get a Quote |
| PSSEU60-110 | Input Voltage: 90~264 | Output Voltage: 33~40 | Output Current: 1.90 ~ 1.57 A | Output Power (W): 63 | No. Outputs: S | Case: Enclosed Case | Size: 5.43" x 3.43" x 1.76" | Get a Quote |
| PSSEU60-111 | Input Voltage: 90~264 | Output Voltage: 40~50 | Output Current: 1.57 ~ 1.26 A | Output Power (W): 63 | No. Outputs: S | Case: Enclosed Case | Size: 5.43" x 3.43" x 1.76" | Get a Quote |
| PSSEU60-201 | Input Voltage: 90~264 | Output Voltage: 5, 12 | Output Current: 7A, 3A | Output Power (W): 63 | No. Outputs: D | Case: Enclosed Case | Size: 5.43" x 3.43" x 1.76" | Get a Quote |
| PSSEU60-202 | Input Voltage: 90~264 | Output Voltage: 5, 15 | Output Current: 7A, 3A | Output Power (W): 63 | No. Outputs: D | Case: Enclosed Case | Size: 5.43" x 3.43" x 1.76" | Get a Quote |
| PSSEU60-203 | Input Voltage: 90~264 | Output Voltage: 5, 24 | Output Current: 7A,2A | Output Power (W): 63 | No. Outputs: D | Case: Enclosed Case | Size: 5.43" x 3.43" x 1.76" | Get a Quote |
| PSSEU60-215 | Input Voltage: 90~264 | Output Voltage: 5, -24 | Output Current: 7A, 2A | Output Power (W): 63 | No. Outputs: D | Case: Enclosed Case | Size: 5.43" x 3.43" x 1.76" | Get a Quote |
| PSSEU60-218 | Input Voltage: 90~264 | Output Voltage: 3.3, 48 | Output Current: 5A, 1.25A | Output Power (W): 63 | No. Outputs: D | Case: Enclosed Case | Size: 5.43" x 3.43" x 1.76" | Get a Quote |
| PSSEU60-219 | Input Voltage: 90~264 | Output Voltage: 5, 28 | Output Current: 5A, 2A | Output Power (W): 63 | No. Outputs: D | Case: Enclosed Case | Size: 5.43" x 3.43" x 1.76" | Get a Quote |
| PSSEU60-220 | Input Voltage: 90~264 | Output Voltage: 5, 35 | Output Current: 5A, 1.5A | Output Power (W): 63 | No. Outputs: D | Case: Enclosed Case | Size: 5.43" x 3.43" x 1.76" | Get a Quote |
| PSSEU60-221 | Input Voltage: 90~264 | Output Voltage: 5, 36 | Output Current: 5A, 1.5A | Output Power (W): 63 | No. Outputs: D | Case: Enclosed Case | Size: 5.43" x 3.43" x 1.76" | Get a Quote |
| PSSEU60-300 | Input Voltage: 90~264 | Output Voltage: 3.3, 12, -12 | Output Current: 6A, 3A, 0.8A | Output Power (W): 63 | No. Outputs: T | Case: Enclosed Case | Size: 5.43" x 3.43" x 1.76" | Get a Quote |
| PSSEU60-300-1 | Input Voltage: 90~264 | Output Voltage: 3.3, 12, 12 | Output Current: 6A, 3A, 0.8A | Output Power (W): 63 | No. Outputs: T | Case: Enclosed Case | Size: 5.43" x 3.43" x 1.76" | Get a Quote |
| PSSEU60-301 | Input Voltage: 90~264 | Output Voltage: 5, 12, -5 | Output Current: 6A, 3A, 0.8A | Output Power (W): 63 | No. Outputs: T | Case: Enclosed Case | Size: 5.43" x 3.43" x 1.76" | Get a Quote |
| PSSEU60-301-1 | Input Voltage: 90~264 | Output Voltage: 5, 12, 5 | Output Current: 6A, 3A, 0.8A | Output Power (W): 63 | No. Outputs: T | Case: Enclosed Case | Size: 5.43" x 3.43" x 1.76" | Get a Quote |
| PSSEU60-302 | Input Voltage: 90~264 | Output Voltage: 5, 12, -12 | Output Current: 6A, 3A, 0.8A | Output Power (W): 63 | No. Outputs: T | Case: Enclosed Case | Size: 5.43" x 3.43" x 1.76" | Get a Quote |
| PSSEU60-302-1 | Input Voltage: 90~264 | Output Voltage: 5, 12, 12 | Output Current: 6A, 3A, 0.8A | Output Power (W): 63 | No. Outputs: T | Case: Enclosed Case | Size: 5.43" x 3.43" x 1.76" | Get a Quote |
| PSSEU60-303 | Input Voltage: 90~264 | Output Voltage: 5, 12, -15 | Output Current: 6A, 3A, 0.8A | Output Power (W): 63 | No. Outputs: T | Case: Enclosed Case | Size: 5.43" x 3.43" x 1.76" | Get a Quote |
| PSSEU60-303-1 | Input Voltage: 90~264 | Output Voltage: 5, 15, 15 | Output Current: 6A, 3A, 0.8A | Output Power (W): 63 | No. Outputs: T | Case: Enclosed Case | Size: 5.43" x 3.43" x 1.76" | Get a Quote |
| PSSEU60-304 | Input Voltage: 90~264 | Output Voltage: 5, 24, -24 | Output Current: 6A, 2A, 0.5A | Output Power (W): 63 | No. Outputs: T | Case: Enclosed Case | Size: 5.43" x 3.43" x 1.76" | Get a Quote |
| PSSEU60-304-1 | Input Voltage: 90~264 | Output Voltage: 5, 24, 24 | Output Current: 6A, 2A, 0.5A | Output Power (W): 63 | No. Outputs: T | Case: Enclosed Case | Size: 5.43" x 3.43" x 1.76" | Get a Quote |
| PSSEU60-305 | Input Voltage: 90~264 | Output Voltage: 5, 24, -12 | Output Current: 6A, 2A, 0.8A | Output Power (W): 63 | No. Outputs: T | Case: Enclosed Case | Size: 5.43" x 3.43" x 1.76" | Get a Quote |
| PSSEU60-305-1 | Input Voltage: 90~264 | Output Voltage: 5, 24, 12 | Output Current: 6A, 2A, 0.8A | Output Power (W): 63 | No. Outputs: T | Case: Enclosed Case | Size: 5.43" x 3.43" x 1.76" | Get a Quote |
| PSSEU60-400 | Input Voltage: 90~264 | Output Voltage: 3.3, 12, -12, -5 | Output Current: 6A, 3A, 0.8A, 0.8A | Output Power (W): 63 | No. Outputs: M | Case: Enclosed Case | Size: 5.43" x 3.43" x 1.76" | Get a Quote |
| PSSEU60-400-1 | Input Voltage: 90~264 | Output Voltage: 3.3, 12, -12, 5 | Output Current: 6A, 3A, 0.8A, 0.8A | Output Power (W): 63 | No. Outputs: M | Case: Enclosed Case | Size: 5.43" x 3.43" x 1.76" | Get a Quote |
| PSSEU60-400-2 | Input Voltage: 90~264 | Output Voltage: 3.3, 12, 12, -5 | Output Current: 6A, 3A, 0.8A, 0.8A | Output Power (W): 63 | No. Outputs: M | Case: Enclosed Case | Size: 5.43" x 3.43" x 1.76" | Get a Quote |
| PSSEU60-400-3 | Input Voltage: 90~264 | Output Voltage: 3.3, 12, 12, 5 | Output Current: 6A, 3A, 0.8A, 0.8A | Output Power (W): 63 | No. Outputs: M | Case: Enclosed Case | Size: 5.43" x 3.43" x 1.76" | Get a Quote |
| PSSEU60-401 | Input Voltage: 90~264 | Output Voltage: 5, 12, -12, -5 | Output Current: 6A, 3A, 0.8A, 0.8A | Output Power (W): 63 | No. Outputs: M | Case: Enclosed Case | Size: 5.43" x 3.43" x 1.76" | Get a Quote |
| PSSEU60-401-1 | Input Voltage: 90~264 | Output Voltage: 5, 12, -12, 5 | Output Current: 6A, 3A, 0.8A, 0.8A | Output Power (W): 63 | No. Outputs: M | Case: Enclosed Case | Size: 5.43" x 3.43" x 1.76" | Get a Quote |
| PSSEU60-401-2 | Input Voltage: 90~264 | Output Voltage: 5, 12, 12, -5 | Output Current: 6A, 3A, 0.8A, 0.8A | Output Power (W): 63 | No. Outputs: M | Case: Enclosed Case | Size: 5.43" x 3.43" x 1.76" | Get a Quote |
| PSSEU60-401-3 | Input Voltage: 90~264 | Output Voltage: 5, 12, 12, 5 | Output Current: 6A, 3A, 0.8A, 0.8A | Output Power (W): 63 | No. Outputs: M | Case: Enclosed Case | Size: 5.43" x 3.43" x 1.76" | Get a Quote |
| PSSEU60-402 | Input Voltage: 90~264 | Output Voltage: 5, 12, -12, 12 | Output Current: 6A, 3A, 0.8A, 0.8A | Output Power (W): 63 | No. Outputs: M | Case: Enclosed Case | Size: 5.43" x 3.43" x 1.76" | Get a Quote |
| PSSEU60-402-1 | Input Voltage: 90~264 | Output Voltage: 5, 12, 12, 12 | Output Current: 6A, 3A, 0.8A, 0.8A | Output Power (W): 63 | No. Outputs: M | Case: Enclosed Case | Size: 5.43" x 3.43" x 1.76" | Get a Quote |
| PSSEU60-402-2 | Input Voltage: 90~264 | Output Voltage: 5, 12, 12, -12 | Output Current: 6A, 3A, 0.8A, 0.8A | Output Power (W): 63 | No. Outputs: M | Case: Enclosed Case | Size: 5.43" x 3.43" x 1.76" | Get a Quote |
| PSSEU60-402-3 | Input Voltage: 90~264 | Output Voltage: 5, 12, -12, -12 | Output Current: 6A, 3A, 0.8A, 0.8A | Output Power (W): 63 | No. Outputs: M | Case: Enclosed Case | Size: 5.43" x 3.43" x 1.76" | Get a Quote |
| PSSEU60-403 | Input Voltage: 90~264 | Output Voltage: 5, 12, -12, 24 | Output Current: 6A, 3A, 0.8A, 0.8A | Output Power (W): 63 | No. Outputs: M | Case: Enclosed Case | Size: 5.43" x 3.43" x 1.76" | Get a Quote |
| PSSEU60-403-1 | Input Voltage: 90~264 | Output Voltage: 5, 12, 12, 24 | Output Current: 6A, 3A, 0.8A, 0.8A | Output Power (W): 63 | No. Outputs: M | Case: Enclosed Case | Size: 5.43" x 3.43" x 1.76" | Get a Quote |
| PSSEU60-403-2 | Input Voltage: 90~264 | Output Voltage: 5, 12, 12, -24 | Output Current: 6A, 3A, 0.8A, 0.8A | Output Power (W): 63 | No. Outputs: M | Case: Enclosed Case | Size: 5.43" x 3.43" x 1.76" | Get a Quote |
| PSSEU60-403-3 | Input Voltage: 90~264 | Output Voltage: 5, 12, -12, -24 | Output Current: 6A, 3A, 0.8A, 0.8A | Output Power (W): 63 | No. Outputs: M | Case: Enclosed Case | Size: 5.43" x 3.43" x 1.76" | Get a Quote |
| PSSEU60-404 | Input Voltage: 90~264 | Output Voltage: 5, 12, -12, -24 | Output Current: 6A, 3A, 0.8A, 0.8A | Output Power (W): 63 | No. Outputs: M | Case: Enclosed Case | Size: 5.43" x 3.43" x 1.76" | Get a Quote |
| PSSEU60-404-1 | Input Voltage: 90~264 | Output Voltage: 5, 15, -15, 5 | Output Current: 6A, 3A, 0.8A, 0.8A | Output Power (W): 63 | No. Outputs: M | Case: Enclosed Case | Size: 5.43" x 3.43" x 1.76" | Get a Quote |
| PSSEU60-404-2 | Input Voltage: 90~264 | Output Voltage: 5, 15, 15, -5 | Output Current: 6A, 3A, 0.8A, 0.8A | Output Power (W): 63 | No. Outputs: M | Case: Enclosed Case | Size: 5.43" x 3.43" x 1.76" | Get a Quote |
| PSSEU60-404-3 | Input Voltage: 90~264 | Output Voltage: 5, 15, 15, 5 | Output Current: 6A, 3A, 0.8A, 0.8A | Output Power (W): 63 | No. Outputs: M | Case: Enclosed Case | Size: 5.43" x 3.43" x 1.76" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47-63Hz |
| Output | |
| Output Voltage: | -5, -10, -12, -15, -24, 3.3, 5, 10, 12, 15, 24, 28, 35, 36, 48, 3~5, 5~6, 6~8, 8~11, 11~13, 13~16, 16~21, 21~27, 27~33, 33~40, 40~50 |
| Output Current: | 1.57~1.26A, 1.9~1.57A, 2.33~1.9A, 3.0~2.33A, 3.93~3.0A, 4.84~3.93A, 5.72~4.84A, 7.87~5.72A, 10~7.5A, 11~9.16A, 16.6~10A, 0.5A, 0.8A, 1.25A, 1.5A, 3.7A, 6A, 6.5A, 7A, 8.5A, 8.8A, 9A, 9.8A, 10A, 10.6A, 11A, 12A |
| Output Power (Watts): | 48, 53.5, 50, 55, 59, 59.3, 60, 63 |
| Over Voltage Protection: | 112-132% |
| General | |
| Efficiency: | 70-88% |
| Isolation: | 4242VDC |
| Environmental | |

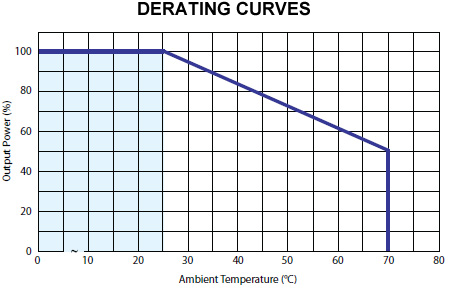

| Operating Temperature: | 0 to 70°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | 1.1 lbs (500g) |

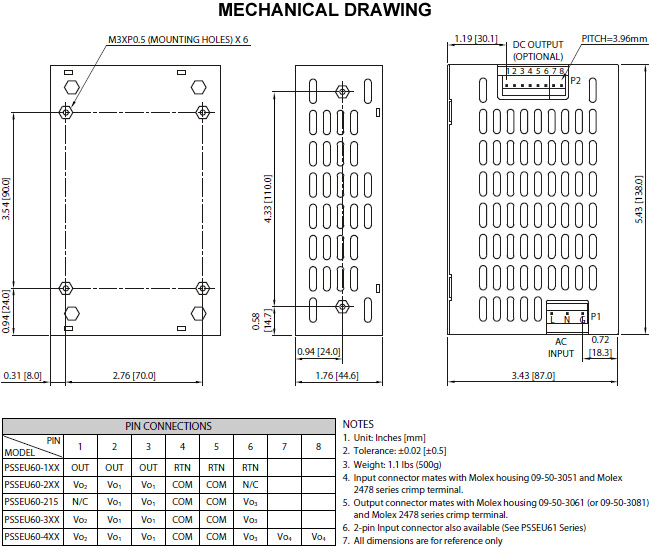

| Dimensions: | 5.43" x 3.43" x 1.76" (138.0 x 87.0 x 44.6 mm) |
| Notes & safety | |
| Notes: | 1. For single output models the output voltage is specified as a range (Ex: 40~50VDC); the customer must specify what they would like the output voltage set at. Please contact factory for ordering details. 2. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/cUL (UL 60950-1: 2nd edition) |
| RoHS Compliance: | Yes |
