PSSBU99
The PSSBU99 series of Class I AC/DC switching mode power supplies provides 100 Watts of continuous output power in a 4.00” x 2.00” x 1.09” open frame package. This series consists of single output models ranging from 11VDC to 55VDC with a wide input voltage range of 90~260VAC. These power supplies have active PFC, an internal EMI filter, and over load, over voltage, and short circuit protection. This series also has UL 60950-1:2nd Edition, CSA C22.2 No.60950-1-07, IEC60950-1:2005/A2:2013, and EN60950-1:2006/A2:2013 safety approvals and meets FCC Part-15 class B and CISPR-22 Class B emission limits. These supplies are well suited for use in industrial equipment as well as many other applications.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSSBU99-105 | Input Voltage: 90~264 | Output Voltage: 11~13 | Output Current: 8.33 ~ 7.69 A | Output Power (W): 100 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 1.09" | Get a Quote |
| PSSBU99-106 | Input Voltage: 90~264 | Output Voltage: 13~16 | Output Current: 7.69 ~ 6.25 A | Output Power (W): 100 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 1.09" | Get a Quote |
| PSSBU99-107 | Input Voltage: 90~264 | Output Voltage: 16~21 | Output Current: 6.25 ~ 4.76 A | Output Power (W): 100 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 1.09" | Get a Quote |
| PSSBU99-108 | Input Voltage: 90~264 | Output Voltage: 21~27 | Output Current: 4.76 ~ 3.70 A | Output Power (W): 100 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 1.09" | Get a Quote |
| PSSBU99-109 | Input Voltage: 90~264 | Output Voltage: 27~33 | Output Current: 3.70 ~ 3.03 A | Output Power (W): 100 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 1.09" | Get a Quote |
| PSSBU99-110 | Input Voltage: 90~264 | Output Voltage: 33~40 | Output Current: 3.03 ~ 2.50 A | Output Power (W): 100 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 1.09" | Get a Quote |
| PSSBU99-111 | Input Voltage: 90~264 | Output Voltage: 40~50 | Output Current: 2.50 ~ 2.00 A | Output Power (W): 100 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 1.09" | Get a Quote |
| PSSBU99-112 | Input Voltage: 90~264 | Output Voltage: 50~55 | Output Current: 2.00 ~ 1.81 A | Output Power (W): 100 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 1.09" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| PFC: | 0.95 |
| Input Frequency: | 47-63Hz |
| Output | |
| Output Voltage: | 11~13, 13~16, 16~21, 21~27, 27~33, 33~40, 40~50, 50~55 |
| Output Current: | 2.00~1.81A, 2.50~2.00A, 3.03~2.50A, 3.70~3.03A, 4.76~3.70A, 6.25~4.76A, 7.69~6.25A, 8.33~7.69A |
| Output Power (Watts): | 100 |
| Over Voltage Protection: | 112-132% |
| General | |
| Efficiency: | 87-89% |
| Isolation: | 4242VDC (Primary to Secondary) 2121VDC (Primary to PE) |
| Environmental | |
| Operating Temperature: | 0 to 70°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | 6.3~8.8 oz. |

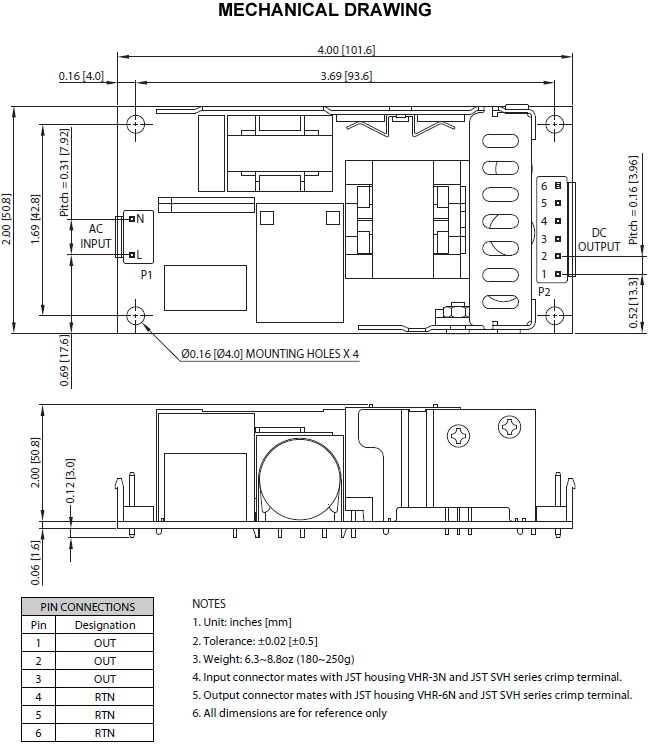

| Dimensions: | 4.00" x 2.00" x 1.09" (138.0 x 87.0 x 44.6 mm) |
| Notes & safety | |
| Notes: | 1. Output can provide up to peak load when power supply starts up. Staying in more than rated load continually is prohibited. 2. At factory, in 60% rated load, each output is checked to be within voltage accuracy. 3. Line regulation is defined by changing ±10% of input voltage from nominal line at rated load. 4. Load regulation is defined by changing ±40% of measured output load from 60% rated load. 5. Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.47uF capacitor at rated load and nominal line. 6. Hold up time is measured from the end of the last charging pulse to the time which the main output drops down to low limit of main output at rated load and nominal line. 7. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL 60950-1:2nd Edition, CSA C22.2 No.60950-1-07, IEC60950-1:2005/A2:2013, and EN60950-1:2006/A2:2013 |
| RoHS Compliance: | Yes |
