PSSBU58
The PSSBU58 series of AC/DC switching mode power supplies provides 60 Watts of continuous output power in an open frame constructed design. This series has single output supplies with a universal input range of 90~264VAC. These units are ideally suited for use in portable equipment as well as many other applications. All models meet CISPR-22 class B emission limits and comply with new CE requirements. All models are short circuit, over voltage, and over load protected. All units are also 100% burn-in tested.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSSBU58-102 | Input Voltage: 90~264 | Output Voltage: 6 | Output Current: 6.66 A | Output Power (W): 40 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 1" | Get a Quote |
| PSSBU58-103 | Input Voltage: 90~264 | Output Voltage: 8 | Output Current: 6A | Output Power (W): 48 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 1" | Get a Quote |
| PSSBU58-104 | Input Voltage: 90~264 | Output Voltage: 11 | Output Current: 5A | Output Power (W): 55 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 1" | Get a Quote |
| PSSBU58-105 | Input Voltage: 90~264 | Output Voltage: 13 | Output Current: 4.61 A | Output Power (W): 60 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 1" | Get a Quote |
| PSSBU58-106 | Input Voltage: 90~264 | Output Voltage: 16 | Output Current: 3.43 A | Output Power (W): 60 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 1" | Get a Quote |
| PSSBU58-107 | Input Voltage: 90~264 | Output Voltage: 21 | Output Current: 2.85 A | Output Power (W): 60 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 1" | Get a Quote |
| PSSBU58-108 | Input Voltage: 90~264 | Output Voltage: 27 | Output Current: 2.22 A | Output Power (W): 60 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 1" | Get a Quote |
| PSSBU58-109 | Input Voltage: 90~264 | Output Voltage: 33 | Output Current: 1.81 A | Output Power (W): 60 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 1" | Get a Quote |
| PSSBU58-110 | Input Voltage: 90~264 | Output Voltage: 40 | Output Current: 1.5 A | Output Power (W): 60 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 1" | Get a Quote |
| PSSBU58-111 | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 1.2 A | Output Power (W): 60 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 1" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47-63 Hz |
| Output | |
| Output Voltage: | 6, 8, 11, 13, 16, 21, 27, 33, 40, 48 |
| Output Current: | 1.2A, 1.5A, 1.81A, 2.22A, 2.85A, 3.43A, 4.61A, 5A, 6A, 6.666A |
| Output Power (Watts): | 40, 48, 55, 60 |
| Over Voltage Protection: | 112%-132% |
| General | |
| Efficiency: | 77-85% |
| Isolation: | 4242VDC |
| Environmental | |
| Operating Temperature: | 0 to 70°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | 4.94 oz. |

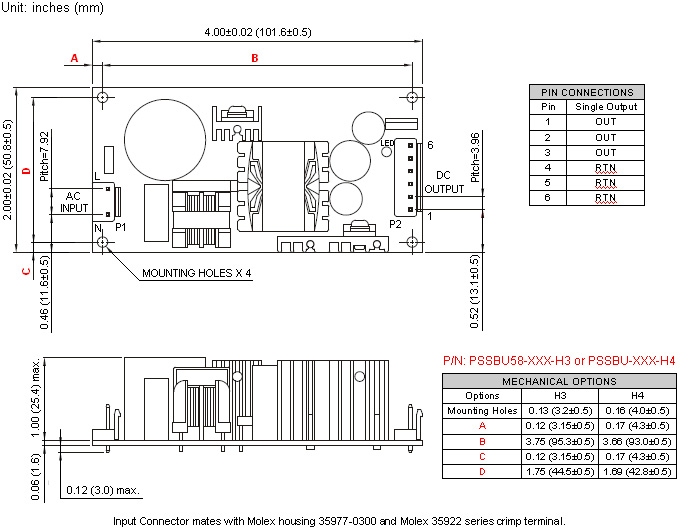

| Dimensions: | 4" x 2" x 1" (101.6 x 50.8 x 25.4 mm) |
| Notes & safety | |
| Notes: | 1. Output can provide up to peak load when power supply starts up. Staying in more than rated load continuously is prohibited. 2. Each output is checked to be within voltage accuracy in 60% rated load condition at factory. 3. Line regulation is defined by changing ±10% of input voltage from nominal line at rated load. 4. Load regulation is defined by changing ±40% of measured output load from 60% rated load. 5. Ripple & Noise is measured by using is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.47uF capacitor at a rated load and nominal line. 6. Hold up time is measured from the end of the last charging pulse to the time which the main output drops down to low limit of main output at rated load and nominal line. 7. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/c-UL (UL 60950-1:2nd Edition), TUV/GS (EN 60950-1:2nd Edition) Safety Approvals |
| RoHS Compliance: | Yes |
