PSSAC5

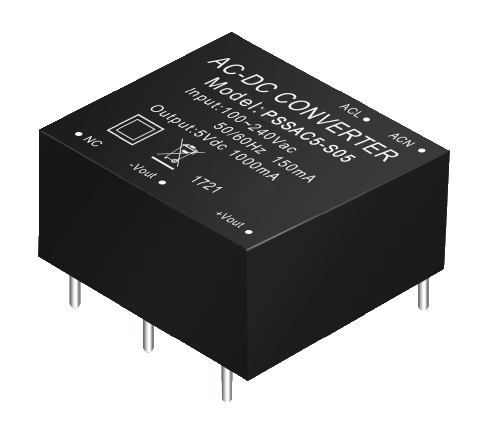

The PSSAC5 series of AC/DC converters offers 5 watts of output power in very compact 1” x 1” x 0.63” package. This series consists of single output models with a universal input voltage range of 90~264VAC. Each model in this series features a fully encapsulated plastic case, high efficiency, as well as short circuit, over load, and over voltage protection. This series is RoHS compliant and the design refers to UL60950-1 and IEC60950-1 safety standards.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSSAC5-S033 | Input Voltage: 90~264 | Output Voltage: 3.3 | Output Current: 1515mA | Output Power (W): 5 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.63" | Get a Quote |
| PSSAC5-S05 | Input Voltage: 90~264 | Output Voltage: 5 | Output Current: 1000mA | Output Power (W): 5 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.63" | Get a Quote |
| PSSAC5-S09 | Input Voltage: 90~264 | Output Voltage: 9 | Output Current: 555mA | Output Power (W): 5 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.63" | Get a Quote |
| PSSAC5-S12 | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 416mA | Output Power (W): 5 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.63" | Get a Quote |
| PSSAC5-S15 | Input Voltage: 90~264 | Output Voltage: 15 | Output Current: 333mA | Output Power (W): 5 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.63" | Get a Quote |
| PSSAC5-S24 | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 208mA | Output Power (W): 5 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.63" | Get a Quote |
| PSSAC5-S48 | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 104mA | Output Power (W): 5 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.63" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47 to 63Hz |
| Output | |
| Output Voltage: | 3.3, 5, 9, 12, 15, 24, 48 |
| Voltage Accuracy: | 3.3VDC & 5VDC Models: ±3% Other Models: ±2% |
| Output Current: | 104mA, 208mA, 333mA, 416mA, 555mA, 1000mA, 1515mA |
| Output Power (Watts): | 5 |
| Short Circuit Protection: | Yes |
| Over Voltage Protection: | Yes |
| General | |
| Efficiency: | Up to 85% |
| Isolation: | Input to Output: 3KVac/5mA/5Secs |
| Environmental | |
| Operating Temperature: | -25 to +70ºC |
| Storage Temperature: | -40 to +85ºC |
| Physical | |
| Weight: | 0.71oz (20g) |

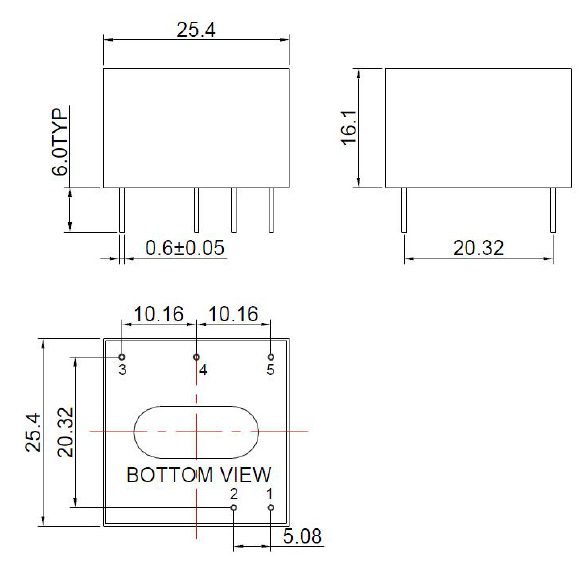

| Dimensions: | 1in x 1in x 0.63in (25.4mm x 25.4mm x 16.1mm) |
| Notes & safety | |
| Notes: | 1. Ripple & Noise is measured by using 20MHz bandwidth, measured with a 10uF paralleled with a high-frequency 0.47uf capacitor across each output by full load. 2. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | Design refers to UL/IEC/EN 60950-1, UL/IEC/EN 62368-1 |
| RoHS Compliance: | Yes |
