PSRL5017R5
The PSRL5017R5 series of AC DC power supplies provides up to 500W of output power. All models have a single output and a universal input. Models are available as enclosed with built-in Fan (Type E). Output connectors are Howder terminal block design. Optional Mating Molex outputs are also available. Please contact factory for ordering details.
• Optional Top Cover Available
• Universal AC Input/Full Range
• Optional N+1 Active Current Sharing
• Peak Power 900W within 500µS duty duration
• Power Factor Corrected to EN61000-3-2 Class D
• High Power Density (Max. 9.1 Watts per cubic inch)
• Approved to UL/CUL/TUV/CB/CE & Class B Emissions
• Enclosed with Built-in Fan Mechanical Options
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSRL5017RE5-03I | Input Voltage: 90~264 | Output Voltage: 3.3 | Output Current: 80 A | Output Power (W): 264 | No. Outputs: S | Case: Enclosed with Fan | Size: 9.17" x 4.25" x 2.5" | Get a Quote |
| PSRL5017RE5-03 | Input Voltage: 90~264 | Output Voltage: 3.3 | Output Current: 80 A | Output Power (W): 264 | No. Outputs: S | Case: Enclosed with Fan | Size: 9.17" x 4.25" x 2.5" | Get a Quote |
| PSRL5017RE5-05I | Input Voltage: 90~264 | Output Voltage: 5 | Output Current: 80 A | Output Power (W): 400 | No. Outputs: S | Case: Enclosed with Fan | Size: 9.17" x 4.25" x 2.5" | Get a Quote |
| PSRL5017RE5-05 | Input Voltage: 90~264 | Output Voltage: 5 | Output Current: 80 A | Output Power (W): 400 | No. Outputs: S | Case: Enclosed with Fan | Size: 9.17" x 4.25" x 2.5" | Get a Quote |
| PSRL5017RE5-12I | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 41.67 A | Output Power (W): 500 | No. Outputs: S | Case: Enclosed with Fan | Size: 9.17" x 4.25" x 2.5" | Get a Quote |
| PSRL5017RE5-16I | Input Voltage: 90~264 | Output Voltage: 18 | Output Current: 31.25 A | Output Power (W): 500 | No. Outputs: S | Case: Enclosed with Fan | Size: 9.17" x 4.25" x 2.5" | Get a Quote |
| PSRL5017RE5-24I | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 22.73 A | Output Power (W): 500 | No. Outputs: S | Case: Enclosed with Fan | Size: 9.17" x 4.25" x 2.5" | Get a Quote |
| PSRL5017RE5-36I | Input Voltage: 90~264 | Output Voltage: 36 | Output Current: 16.13 A | Output Power (W): 500 | No. Outputs: S | Case: Enclosed with Fan | Size: 9.17" x 4.25" x 2.5" | Get a Quote |
| PSRL5017RE5-48I | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 10.42 A | Output Power (W): 500 | No. Outputs: S | Case: Enclosed with Fan | Size: 9.17" x 4.25" x 2.5" | Get a Quote |
| PSRL5017RE5-12 | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 41.67 A | Output Power (W): 500 | No. Outputs: S | Case: Enclosed with Fan | Size: 9.17" x 4.25" x 2.5" | Get a Quote |
| PSRL5017RE5-16 | Input Voltage: 90~264 | Output Voltage: 18 | Output Current: 31.25 A | Output Power (W): 500 | No. Outputs: S | Case: Enclosed with Fan | Size: 9.17" x 4.25" x 2.5" | Get a Quote |
| PSRL5017RE5-24 | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 22.73 A | Output Power (W): 500 | No. Outputs: S | Case: Enclosed with Fan | Size: 9.17" x 4.25" x 2.5" | Get a Quote |
| PSRL5017RE5-36 | Input Voltage: 90~264 | Output Voltage: 36 | Output Current: 16.13 A | Output Power (W): 500 | No. Outputs: S | Case: Enclosed with Fan | Size: 9.17" x 4.25" x 2.5" | Get a Quote |
| PSRL5017RE5-48 | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 10.42 A | Output Power (W): 500 | No. Outputs: S | Case: Enclosed with Fan | Size: 9.17" x 4.25" x 2.5" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Remote ON/OFF: | Yes |
| PFC: | Yes |
| Input Frequency: | 47-63 Hz |
| Output | |
| Output Voltage: | 3.3, 5, 12, 18, 24, 36, 48 |
| Output Current: | 80A, 41.67A, 31.25A, 22.73A, 16.13A, 10.42A |
| Output Power (Watts): | 264, 400, 500 |
| Output Trim/Adjustability: | ±5% |
| Short Circuit Protection: | Yes |
| Over Voltage Protection: | Yes |
| Thermal Protection: | Yes |
| General | |
| Efficiency: | Up to 83% |
| Isolation: | 3000VAC |
| Environmental | |
| Operating Temperature: | 0 to 70°C |
| Storage Temperature: | -20 to 85°C |
| Physical | |
| Weight: | E Type: 3.2 lbs (1450g) |

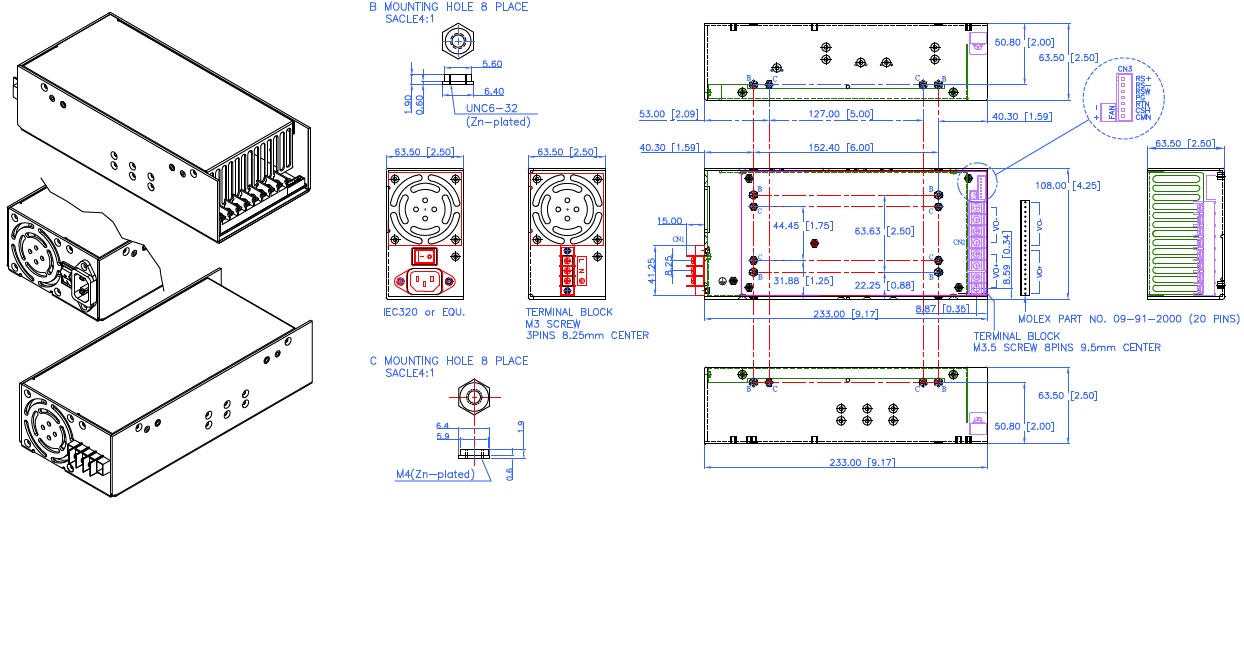

| Dimensions: | E Type: 9.17" x 4.25" x 2.50" |
| Notes & safety | |
| Notes: | (1) The PSRL5017R5 Series is designated as PSRL5017Rxw-yz where x=E (Enclosed with built-in fan type), w=5 for output power from 264W-500W, y= 03,05,12,16,36, or 48 for output voltage, and z can be blank or I where I denotes forced current sharing option (output with internal OR-ring diode). See PSRL5017-I Series for forced current sharing. (2) All output ranges are covered in agency certifications and preset voltage will be set as standard models. If any request is not preset output, then please contact us in advance. (3) Ripple & Noise are measured from 10KHZ to 20 MHz bandwidth at output with parallel 0.1µF ceramic and 22µF electrolytic capacitors. (4) Providing peak power to 900W within 500µS for all models, longer duty duration need contact with manufacturer. (5) 1% minimum load is required to maintain the ripple and regulation. (6) Output is fully isolated. (7) This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL60950-1, CSA C22.2 No. 60950-1-03, TUV EN60950-1, CE Mark (LVD) EN61000-3-2-3, IEC61000-4 Series Regulations and CB |
| RoHS Compliance: | Yes |
| TUV Efficiency Level: | TUV EN60950-1 |
