PSRL0603D
The PSRL0603D series of AC/DC switching power supplies offers up to 250 Watts of output power. This series has dual output models with a 90~132/180~264VAC auto-selectable input voltage range. These supplies also have over voltage, short circuit, over temperature, and over power protection. Models are available in U-Chassis (Type U), U-Chassis with top cover (Type C), and enclosed with top built-in fan (Type F) designs. Output connectors are Howder terminal block design; optional Mating Molex outputs are also available. These supplies meet UL60950-1, TUV EN60950-1, CSA C 22.2 No. 60950-1, and CB safety regulations. For single output models see the PSRL0603 series.
● Dual Output
● Remote On/Off
● Remote On/Off
● 3 Mechanical Options Available
● Approved to UL/cUL, TUV, CE, and CB
● Power Factor Corrected to EN61000-3-2 Class A
● Low Leakage Current 500µA @ 240VAC/300µA @ 120VAC
● Auto-Selectable AC Input Range (90~132VAC / 180~264VAC)
● Smallest 250W with 1U Height Power Density: 10.4 Watts/cu in
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSRL0603DC-0312 | Input Voltage: 90~264 | Output Voltage: 3.3, 12 | Output Current: 12A, 7A | Output Power (W): 100 | No. Outputs: D | Case: Enclosed Case | Size: 5" x 3.2" x 1.56" | Get a Quote |
| PSRL0603DC-0324 | Input Voltage: 90~264 | Output Voltage: 3.3, 24 | Output Current: 12A, 4A | Output Power (W): 100 | No. Outputs: D | Case: Enclosed Case | Size: 5" x 3.2" x 1.56" | Get a Quote |
| PSRL0603DC-0512 | Input Voltage: 90~264 | Output Voltage: 5, 24 | Output Current: 12A, 7A | Output Power (W): 100 | No. Outputs: D | Case: Enclosed Case | Size: 5" x 3.2" x 1.56" | Get a Quote |
| PSRL0603DC-0524 | Input Voltage: 90~264 | Output Voltage: 5, 24 | Output Current: 12A, 4A | Output Power (W): 100 | No. Outputs: D | Case: Enclosed Case | Size: 5" x 3.2" x 1.56" | Get a Quote |
| PSRL0603DC-0548 | Input Voltage: 90~264 | Output Voltage: 5, 48 | Output Current: 12A, 2A | Output Power (W): 100 | No. Outputs: D | Case: Enclosed Case | Size: 5" x 3.2" x 1.56" | Get a Quote |
| PSRL0603DC-1224 | Input Voltage: 90~264 | Output Voltage: 12, 24 | Output Current: 7A, 4A | Output Power (W): 135 | No. Outputs: D | Case: Enclosed Case | Size: 5" x 3.2" x 1.56" | Get a Quote |
| PSRL0603DF-0312 | Input Voltage: 90~264 | Output Voltage: 3.3, 12 | Output Current: 24A, 12A | Output Power (W): 200 | No. Outputs: D | Case: Enclosed with Top Fan | Size: 5" x 3.2" x 2" | Get a Quote |
| PSRL0603DF-0324 | Input Voltage: 90~264 | Output Voltage: 3.3, 24 | Output Current: 24A, 6A | Output Power (W): 200 | No. Outputs: D | Case: Enclosed with Top Fan | Size: 5" x 3.2" x 2" | Get a Quote |
| PSRL0603DF-0512 | Input Voltage: 90~264 | Output Voltage: 5, 12 | Output Current: 24A, 12A | Output Power (W): 200 | No. Outputs: D | Case: Enclosed with Top Fan | Size: 5" x 3.2" x 2" | Get a Quote |
| PSRL0603DF-0524 | Input Voltage: 90~264 | Output Voltage: 5, 24 | Output Current: 24A, 6A | Output Power (W): 200 | No. Outputs: D | Case: Enclosed with Top Fan | Size: 5" x 3.2" x 2" | Get a Quote |
| PSRL0603DF-0548 | Input Voltage: 90~264 | Output Voltage: 5, 48 | Output Current: 24A, 3A | Output Power (W): 200 | No. Outputs: D | Case: Enclosed with Top Fan | Size: 5" x 3.2" x 2" | Get a Quote |
| PSRL0603DU-0312 | Input Voltage: 90~264 | Output Voltage: 3.3, 12 | Output Current: 24A, 12A | Output Power (W): 200 | No. Outputs: D | Case: U-Chassis | Size: 5" x 3.2" x 1.5" | Get a Quote |
| PSRL0603DU-0324 | Input Voltage: 90~264 | Output Voltage: 3.3, 24 | Output Current: 24A, 6A | Output Power (W): 200 | No. Outputs: D | Case: U-Chassis | Size: 5" x 3.2" x 1.5" | Get a Quote |
| PSRL0603DU-0512 | Input Voltage: 90~264 | Output Voltage: 5, 12 | Output Current: 24A, 12A | Output Power (W): 200 | No. Outputs: D | Case: U-Chassis | Size: 5" x 3.2" x 1.5" | Get a Quote |
| PSRL0603DU-0524 | Input Voltage: 90~264 | Output Voltage: 5, 24 | Output Current: 24A, 6A | Output Power (W): 200 | No. Outputs: D | Case: U-Chassis | Size: 5" x 3.2" x 1.5" | Get a Quote |
| PSRL0603DU-0548 | Input Voltage: 90~264 | Output Voltage: 5, 48 | Output Current: 24A, 3A | Output Power (W): 200 | No. Outputs: D | Case: U-Chassis | Size: 5" x 3.2" x 1.5" | Get a Quote |
| PSRL0603DF-1224 | Input Voltage: 90~264 | Output Voltage: 12, 24 | Output Current: 12A, 6A | Output Power (W): 250 | No. Outputs: D | Case: Enclosed with Top Fan | Size: 5" x 3.2" x 2" | Get a Quote |
| PSRL0603DU-1224 | Input Voltage: 90~264 | Output Voltage: 12, 24 | Output Current: 12A, 6A | Output Power (W): 250 | No. Outputs: D | Case: U-Chassis | Size: 5" x 3.2" x 1.5" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 120 |
| Input Voltage Range: | 90~264 |
| Remote ON/OFF: | Active Low |
| PFC: | Yes |
| Auto Selectable Input: | 90-132/180-264VAC |
| Input Frequency: | 47-63 Hz |
| Output | |
| Output Voltage: | 3.3, 5, 12, 24, 48 |
| Output Current: | 19A, 36A, 30A, 16A, 27A, 14A, 18A, 11A |
| Output Power (Watts): | 100, 200 |
| Output Trim/Adjustability: | ±5% |
| Short Circuit Protection: | Yes |
| Over Voltage Protection: | Yes |
| Thermal Protection: | Yes |
| General | |
| Efficiency: | 70% |
| Isolation: | 3000VAC |
| Environmental | |
| Operating Temperature: | 0 to 70°C |
| Storage Temperature: | -20 to 85°C |
| Physical | |
| Weight: | U Type: 15.87oz (450g) C Type: 16.58oz (470g) F Type: 19.4oz (550g) |

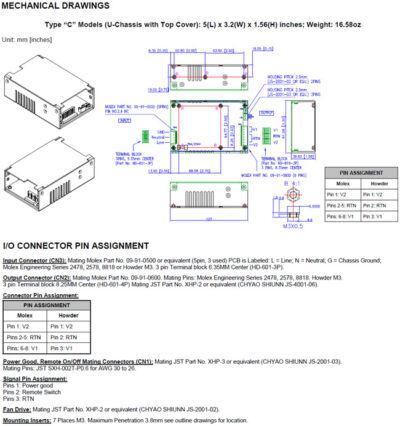

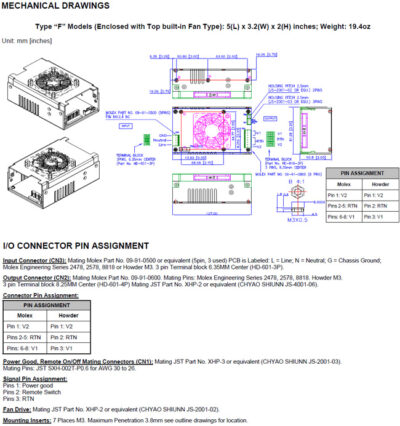

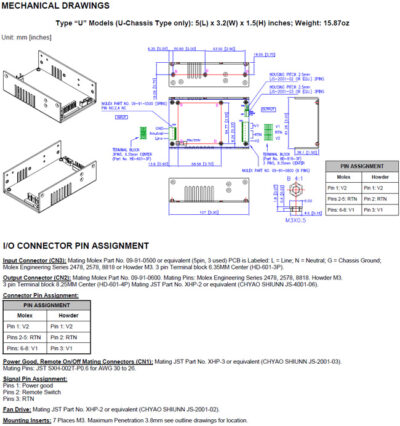

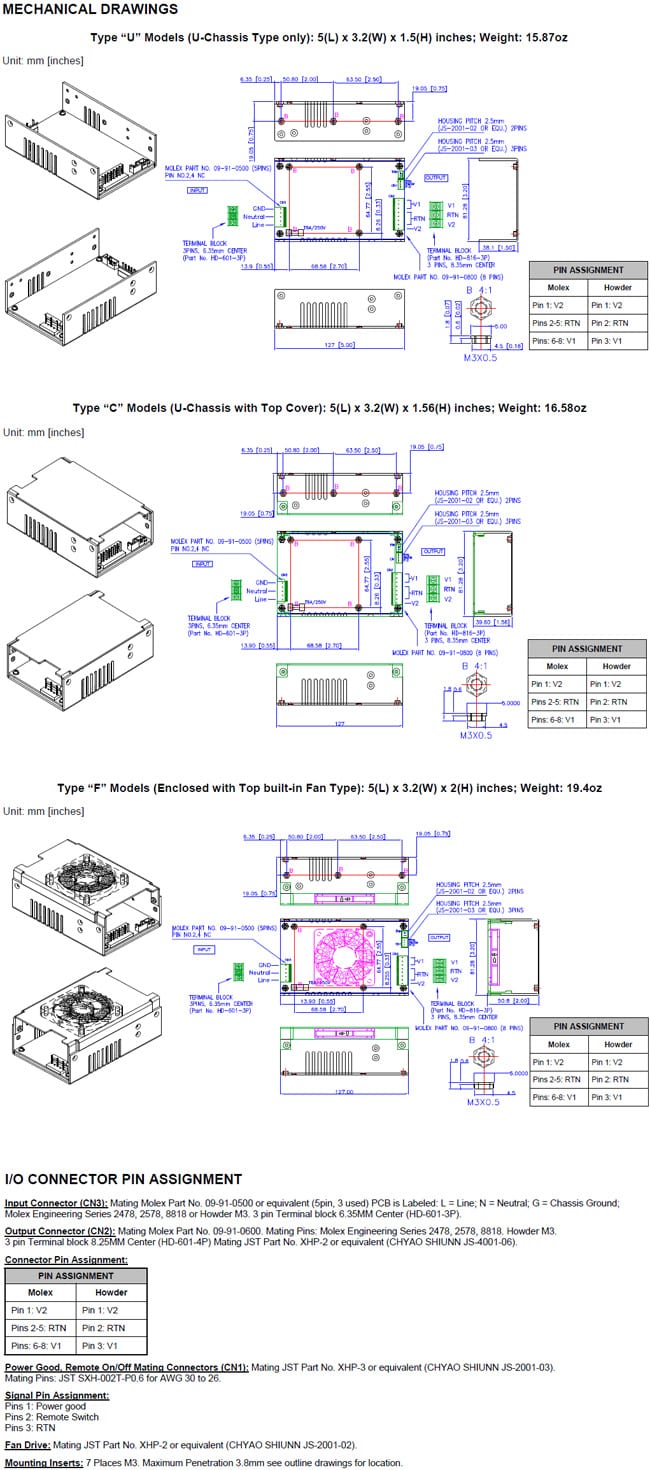

| Dimensions: | U Type: 5" x 3.2" x 1.5" (127.00 x 81.28 x 38.1 mm) C Type: 5" x 3.2" x 1.56" (127.00 x 81.28 x 39.60 mm) F Type: 5" x 3.2" x 2" (127.00 x 81.28 x 50.80 mm) |
| Notes & safety | |
| Notes: | 1. The PSRL0603D series is designated as PSRL0603Dx-y where “x” can be “U” for U-chassis type, “C” for U-chassis with top cover, or “F” for enclosed type with top side built-in fan; y can be 0312, 0324, 0512, 0524, 0548, or 1224 for output voltage. U Type Models (U-Chassis): 250W max. combined power of V1 and V2 with 16CFM min. forced air for PSRL0603Dx-1224 and 200W for all other models. 135W max. combined power of V1 and V2 for PSRL0603Dx-1224 and 100W for all other models with convection cooling. C Type Models (U-Chassis with top cover): 250W max. combined power of V1 and V2 with 16CFM min. forced air for PSRL0603Dx-1224 and 200W for all other models. 135W max. combined power of V1 and V2 for PSRL0603Dx-1224 and 100W for all other models with convection cooling. F Type Models (Enclosed with top built-in fan): 250W max. combined power of V1 and V2 with 16CFM min. forced air for PSRL0603Dx-1224 and 200W for all other models. 3. Ripple and noise is measured from 10KHZ to 20MHz bandwidth at output with 0.1μF ceramic and 22μF electrolytic capacitors in parallel. 4. Provides peak power to 600W within 500µs for all models; for longer duty duration must contact manufacturer. 5. Providing peak power to 600W within 500uS for all models, longer duty duration need contact manufacturer. 6. Ripple and noise is measured from 10KHZ to 20MHz bandwidth at output with parallel 0.1uF ceramic and 22uF electrolytic capacitors. 7. 10% minimum load is required for all outputs to maintain the ripple and regulation specifications. 8. Output is fully isolated. 9. For single output models see the PSRL0603 series. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL60950-1, CSA C22.2 No. 60950-1, TUV EN60950-1, CB |
| RoHS Compliance: | Yes |
| TUV Efficiency Level: | TUV EN60950-1 |
