PSRL0601D
The PSRL0601D series of AC/DC power supplies provides 300 watts of output power. All models have a dual output and a 90~132/180~264VAC auto-selectable input. Models are available in U-Chassis (type U), U-chassis with cover (type C), enclosed with side fan (type E) and enclosed with top fan (type F) designs. Output connectors are Howder terminal block design. Optional Mating Molex 16pin outputs are also available. Please contact factory for ordering details.
• Dual Outputs
• RoHS Compliant
• High Quality & Reliable Component Usage
• Variable Fan Speed & Low Acoustical Noise
• MTBF: 100,000 Hours (MIL-HDBK-217F)

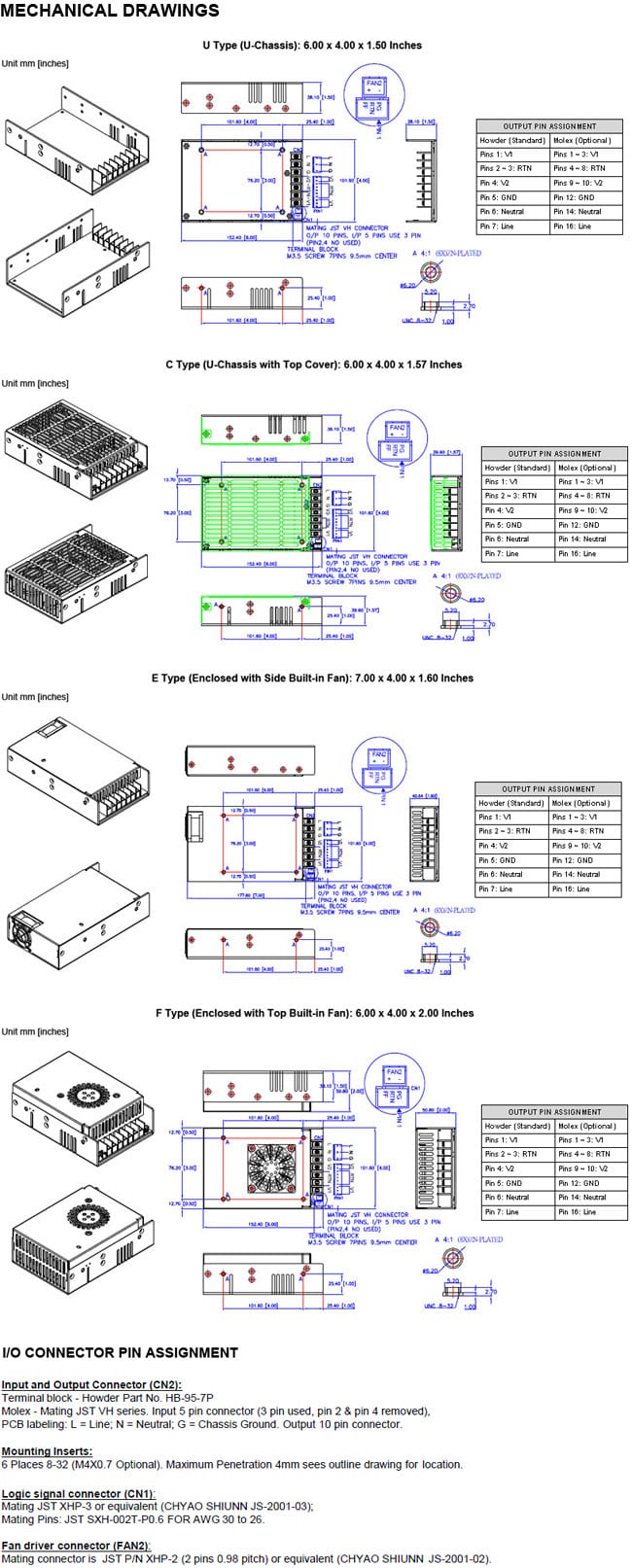

• Four Types of Mechanical Options
• Power Factor Corrected to EN61000-3-2 Class A
• Compact 300W with 1U Height Power Density: 8.3 Watts/cu in
• 90~132 / 180~264 VAC Auto-Selectable Input Range
• Low Leakage Current: 500µA at 240VAC and 300µA at 120VAC
• Short Circuit, Over Power, Over Voltage, and Over Temperature Protection
• UL60950-1, EN60950-1, IEC60950-1 Safety Approvals
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSRL0601DC-0524 | Input Voltage: 90~264 | Output Voltage: 5, 24 | Output Current: 30A, 8.33A | Output Power (W): 250 | No. Outputs: D | Case: Enclosed Case | Size: 6" x 4" x 1.57" | Get a Quote |
| PSRL0601DC-0548 | Input Voltage: 90~264 | Output Voltage: 5, 48 | Output Current: 30A, 4.16A | Output Power (W): 250 | No. Outputs: D | Case: Enclosed Case | Size: 6" x 4" x 1.57" | Get a Quote |
| PSRL0601DU-0512 | Input Voltage: 90~264 | Output Voltage: 5, 12 | Output Current: 30A, 16.67A | Output Power (W): 250 | No. Outputs: D | Case: U-Chassis | Size: 6" x 4" x 1.5" | Get a Quote |
| PSRL0601DU-0524 | Input Voltage: 90~264 | Output Voltage: 5, 24 | Output Current: 30A, 8.33A | Output Power (W): 250 | No. Outputs: D | Case: U-Chassis | Size: 6" x 4" x 1.5" | Get a Quote |
| PSRL0601DU-0548 | Input Voltage: 90~264 | Output Voltage: 5, 48 | Output Current: 30A, 4.16A | Output Power (W): 250 | No. Outputs: D | Case: U-Chassis | Size: 6" x 4" x 1.5" | Get a Quote |
| PSRL0601DU-1224 | Input Voltage: 90~264 | Output Voltage: 12, 24 | Output Current: 16.67A, 8.33A | Output Power (W): 250 | No. Outputs: D | Case: U-Chassis | Size: 6" x 4" x 1.5" | Get a Quote |
| PSRL0601DC-0512 | Input Voltage: 90~264 | Output Voltage: 5, 12 | Output Current: 30A, 16.67A | Output Power (W): 250 | No. Outputs: D | Case: Enclosed Case | Size: 6" x 4" x 1.57" | Get a Quote |
| PSRL0601DC-1224 | Input Voltage: 90~264 | Output Voltage: 12, 24 | Output Current: 16.67A, 8.33A | Output Power (W): 300 | No. Outputs: D | Case: Enclosed Case | Size: 6" x 4" x 1.57" | Get a Quote |
| PSRL0601DE-0512 | Input Voltage: 90~264 | Output Voltage: 5, 12 | Output Current: 30A, 16.67A | Output Power (W): 300 | No. Outputs: D | Case: Enclosed with Fan | Size: 7" x 4" x 1.6" | Get a Quote |
| PSRL0601DE-0524 | Input Voltage: 90~264 | Output Voltage: 5, 24 | Output Current: 30A, 8.33A | Output Power (W): 300 | No. Outputs: D | Case: Enclosed with Fan | Size: 7" x 4" x 1.6" | Get a Quote |
| PSRL0601DE-0548 | Input Voltage: 90~264 | Output Voltage: 5, 48 | Output Current: 30A, 4.16A | Output Power (W): 300 | No. Outputs: D | Case: Enclosed with Fan | Size: 7" x 4" x 1.6" | Get a Quote |
| PSRL0601DE-1224 | Input Voltage: 90~264 | Output Voltage: 12, 24 | Output Current: 16.67A, 8.33A | Output Power (W): 300 | No. Outputs: D | Case: Enclosed with Fan | Size: 7" x 4" x 1.6" | Get a Quote |
| PSRL0601DF-0512 | Input Voltage: 90~264 | Output Voltage: 5, 12 | Output Current: 30A, 16.67A | Output Power (W): 300 | No. Outputs: D | Case: Enclosed with Top Fan | Size: 6" x 4" x 2" | Get a Quote |
| PSRL0601DF-0524 | Input Voltage: 90~264 | Output Voltage: 5, 24 | Output Current: 30A, 8.33A | Output Power (W): 300 | No. Outputs: D | Case: Enclosed with Top Fan | Size: 6" x 4" x 2" | Get a Quote |
| PSRL0601DF-0548 | Input Voltage: 90~264 | Output Voltage: 5, 48 | Output Current: 30A, 4.16A | Output Power (W): 300 | No. Outputs: D | Case: Enclosed with Top Fan | Size: 6" x 4" x 2" | Get a Quote |
| PSRL0601DF-1224 | Input Voltage: 90~264 | Output Voltage: 12, 24 | Output Current: 16.67A, 8.33A | Output Power (W): 300 | No. Outputs: D | Case: Enclosed with Top Fan | Size: 6" x 4" x 2" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 120 |
| Input Voltage Range: | 90~264 |
| PFC: | Yes |
| Auto Selectable Input: | 90-132/180-264VAC |
| Input Frequency: | 47-63 Hz |
| Output | |
| Output Voltage: | 5, 12, 24, 48 |
| Output Current: | 25A, 34.16A, 38.333A, 46.67A |
| Output Power (Watts): | 250, 300 |
| Output Trim/Adjustability: | ±5% |
| Short Circuit Protection: | Yes |
| Over Voltage Protection: | Yes |
| Thermal Protection: | Yes |
| General | |
| Efficiency: | 75% |
| Isolation: | 3000VAC |
| Environmental | |
| Operating Temperature: | 0 to 70°C |
| Storage Temperature: | -20 to 85°C |
| Physical | |
| Weight: | U Type: 21.16oz (600g) C Type: 22.93oz (650g) E Type: 26.46oz (750g) F Type: 28.22oz (800g) |
| Dimensions: | U Type: 6.00" x 4.00" x 1.50" (152.40 x 101.60 x 38.10 mm) C Type: 6.00" x 4.00" x 1.57" (152.40 x 101.60 x 39.90 mm) E Type: 7.00" x 4.00" x 1.60" (177.80 x 101.60 x 40.64 mm) F Type: 6.00" x 4.00" x 2.00" (152.40 x 101.60 x 50.80 mm) |
| Case Material: | enclosed case |
| Notes & safety | |
| Notes: | 1. Four types of mechanical options are available: U-chassis (“U” type), U-chassis with top cover (“C” type), enclosed with side built-in fan (“E” type), and enclosed with top built-in fan (“F” type). 2. 10% minimum load is required to maintain the ripple and regulation specifications. 3. Output is full isolated 4. For single output models see the PSRL0601 series. 5. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL60950-1, EN60950-1, IEC60950-1 |
| RoHS Compliance: | Yes |
| TUV Efficiency Level: | TUV EN60950-1 |
