PSRL0601
The PSRL0601 series offers up to 320 Watts of output power. All models have a single output and an auto-ranging input voltage range. Models are available in U-Chassis (Type U), U-Chassis with top cover (Type C), Enclosed with rear side built-in fan (Type E), and Enclosed with top built-in fan (Type F) designs. Output connectors are Howder terminal block design. Optional Mating Molex 16pin outputs are also available. Please contact factory for ordering details.
● Smallest 320W with 1U Height Power Density: 8.9 Watts/cu in
● Low Leakage Current 500uA @ 240VAC / 300uA @ 120VAC
● Power Factor Corrected to EN61000-3-2 Class A
● Peak Power 700W within 500uS Duty Duration
● Approved to UL CUL TUV CB and CE
● AC Input Range Auto-Selectable
● Output Voltages from 2 ~ 60VDC
● 4 - Mechanical Options
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSRL0601C-09 | Input Voltage: 90~264 | Output Voltage: 9 | Output Current: 13.64 A | Output Power (W): 125 | No. Outputs: S | Case: Enclosed Case | Size: 6" x 4" x 1.55" | Get a Quote |
| PSRL0601C-12 | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 14.17 A | Output Power (W): 170 | No. Outputs: S | Case: Enclosed Case | Size: 6" x 4" x 1.55" | Get a Quote |
| PSRL0601C-15 | Input Voltage: 90~264 | Output Voltage: 15 | Output Current: 11.33 A | Output Power (W): 170 | No. Outputs: S | Case: Enclosed Case | Size: 6" x 4" x 1.55" | Get a Quote |
| PSRL0601C-18 | Input Voltage: 90~264 | Output Voltage: 18 | Output Current: 9.44 A | Output Power (W): 170 | No. Outputs: S | Case: Enclosed Case | Size: 6" x 4" x 1.55" | Get a Quote |
| PSRL0601C-24 | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 7.08 A | Output Power (W): 170 | No. Outputs: S | Case: Enclosed Case | Size: 6" x 4" x 1.55" | Get a Quote |
| PSRL0601C-28 | Input Voltage: 90~264 | Output Voltage: 28 | Output Current: 6.07 A | Output Power (W): 170 | No. Outputs: S | Case: Enclosed Case | Size: 6" x 4" x 1.55" | Get a Quote |
| PSRL0601C-36 | Input Voltage: 90~264 | Output Voltage: 36 | Output Current: 4.72 A | Output Power (W): 170 | No. Outputs: S | Case: Enclosed Case | Size: 6" x 4" x 1.55" | Get a Quote |
| PSRL0601C-48 | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 3.54 A | Output Power (W): 170 | No. Outputs: S | Case: Enclosed Case | Size: 6" x 4" x 1.55" | Get a Quote |
| PSRL0601C-54 | Input Voltage: 90~264 | Output Voltage: 54 | Output Current: 3.15 A | Output Power (W): 170 | No. Outputs: S | Case: Enclosed Case | Size: 6" x 4" x 1.55" | Get a Quote |
| PSRL0601C-05 | Input Voltage: 90~264 | Output Voltage: 5 | Output Current: 45A | Output Power (W): 225 | No. Outputs: S | Case: Enclosed Case | Size: 6" x 4" x 1.55" | Get a Quote |
| PSRL0601E-05 | Input Voltage: 90~264 | Output Voltage: 5 | Output Current: 45A | Output Power (W): 225 | No. Outputs: S | Case: Enclosed with Fan | Size: 6" x 4" x 1.55" | Get a Quote |
| PSRL0601F-05 | Input Voltage: 90~264 | Output Voltage: 5 | Output Current: 45A | Output Power (W): 225 | No. Outputs: S | Case: Enclosed with Top Fan | Size: 6" x 4" x 2" | Get a Quote |
| PSRL0601U-05 | Input Voltage: 90~264 | Output Voltage: 5 | Output Current: 45A | Output Power (W): 225 | No. Outputs: S | Case: U-Chassis | Size: 6" x 4" x 1.5" | Get a Quote |
| PSRL0601E-09 | Input Voltage: 90~264 | Output Voltage: 9 | Output Current: 29.1 A | Output Power (W): 262 | No. Outputs: S | Case: Enclosed with Fan | Size: 6" x 4" x 1.55" | Get a Quote |
| PSRL0601F-09 | Input Voltage: 90~264 | Output Voltage: 9 | Output Current: 29.1 A | Output Power (W): 262 | No. Outputs: S | Case: Enclosed with Top Fan | Size: 6" x 4" x 2" | Get a Quote |
| PSRL0601U-09 | Input Voltage: 90~264 | Output Voltage: 9 | Output Current: 29.1 A | Output Power (W): 262 | No. Outputs: S | Case: U-Chassis | Size: 6" x 4" x 1.5" | Get a Quote |
| PSRL0601E-12 | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 26.67 A | Output Power (W): 320 | No. Outputs: S | Case: Enclosed with Fan | Size: 6" x 4" x 1.55" | Get a Quote |
| PSRL0601E-15 | Input Voltage: 90~264 | Output Voltage: 15 | Output Current: 21.33 A | Output Power (W): 320 | No. Outputs: S | Case: Enclosed with Fan | Size: 6" x 4" x 1.55" | Get a Quote |
| PSRL0601E-18 | Input Voltage: 90~264 | Output Voltage: 18 | Output Current: 17.78 A | Output Power (W): 320 | No. Outputs: S | Case: Enclosed with Fan | Size: 6" x 4" x 1.55" | Get a Quote |
| PSRL0601E-24 | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 13.33 A | Output Power (W): 320 | No. Outputs: S | Case: Enclosed with Fan | Size: 6" x 4" x 1.55" | Get a Quote |
| PSRL0601E-28 | Input Voltage: 90~264 | Output Voltage: 28 | Output Current: 11.43 A | Output Power (W): 320 | No. Outputs: S | Case: Enclosed with Fan | Size: 6" x 4" x 1.55" | Get a Quote |
| PSRL0601E-36 | Input Voltage: 90~264 | Output Voltage: 36 | Output Current: 8.89 A | Output Power (W): 320 | No. Outputs: S | Case: Enclosed with Fan | Size: 6" x 4" x 1.55" | Get a Quote |
| PSRL0601E-48 | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 6.67 A | Output Power (W): 320 | No. Outputs: S | Case: Enclosed with Fan | Size: 6" x 4" x 1.55" | Get a Quote |
| PSRL0601E-54 | Input Voltage: 90~264 | Output Voltage: 54 | Output Current: 5.93 A | Output Power (W): 320 | No. Outputs: S | Case: Enclosed with Fan | Size: 6" x 4" x 1.55" | Get a Quote |
| PSRL0601F-12 | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 26.67 A | Output Power (W): 320 | No. Outputs: S | Case: Enclosed with Top Fan | Size: 6" x 4" x 2" | Get a Quote |
| PSRL0601F-15 | Input Voltage: 90~264 | Output Voltage: 15 | Output Current: 21.33 A | Output Power (W): 320 | No. Outputs: S | Case: Enclosed with Top Fan | Size: 6" x 4" x 2" | Get a Quote |
| PSRL0601F-18 | Input Voltage: 90~264 | Output Voltage: 18 | Output Current: 17.78 A | Output Power (W): 320 | No. Outputs: S | Case: Enclosed with Top Fan | Size: 6" x 4" x 2" | Get a Quote |
| PSRL0601F-24 | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 13.33 A | Output Power (W): 320 | No. Outputs: S | Case: Enclosed with Top Fan | Size: 6" x 4" x 2" | Get a Quote |
| PSRL0601F-28 | Input Voltage: 90~264 | Output Voltage: 28 | Output Current: 11.43 A | Output Power (W): 320 | No. Outputs: S | Case: Enclosed with Top Fan | Size: 6" x 4" x 2" | Get a Quote |
| PSRL0601F-36 | Input Voltage: 90~264 | Output Voltage: 36 | Output Current: 8.89 A | Output Power (W): 320 | No. Outputs: S | Case: Enclosed with Top Fan | Size: 6" x 4" x 2" | Get a Quote |
| PSRL0601F-48 | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 6.67 A | Output Power (W): 320 | No. Outputs: S | Case: Enclosed with Top Fan | Size: 6" x 4" x 2" | Get a Quote |
| PSRL0601F-54 | Input Voltage: 90~264 | Output Voltage: 54 | Output Current: 5.93 A | Output Power (W): 320 | No. Outputs: S | Case: Enclosed with Top Fan | Size: 6" x 4" x 2" | Get a Quote |
| PSRL0601U-12 | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 26.67 A | Output Power (W): 320 | No. Outputs: S | Case: U-Chassis | Size: 6" x 4" x 1.5" | Get a Quote |
| PSRL0601U-15 | Input Voltage: 90~264 | Output Voltage: 15 | Output Current: 21.33 A | Output Power (W): 320 | No. Outputs: S | Case: U-Chassis | Size: 6" x 4" x 1.5" | Get a Quote |
| PSRL0601U-18 | Input Voltage: 90~264 | Output Voltage: 18 | Output Current: 17.78 A | Output Power (W): 320 | No. Outputs: S | Case: U-Chassis | Size: 6" x 4" x 1.5" | Get a Quote |
| PSRL0601U-24 | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 13.33 A | Output Power (W): 320 | No. Outputs: S | Case: U-Chassis | Size: 6" x 4" x 1.5" | Get a Quote |
| PSRL0601U-28 | Input Voltage: 90~264 | Output Voltage: 28 | Output Current: 11.43 A | Output Power (W): 320 | No. Outputs: S | Case: U-Chassis | Size: 6" x 4" x 1.5" | Get a Quote |
| PSRL0601U-36 | Input Voltage: 90~264 | Output Voltage: 36 | Output Current: 8.89 A | Output Power (W): 320 | No. Outputs: S | Case: U-Chassis | Size: 6" x 4" x 1.5" | Get a Quote |
| PSRL0601U-48 | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 6.67 A | Output Power (W): 320 | No. Outputs: S | Case: U-Chassis | Size: 6" x 4" x 1.5" | Get a Quote |
| PSRL0601U-54 | Input Voltage: 90~264 | Output Voltage: 54 | Output Current: 5.93 A | Output Power (W): 320 | No. Outputs: S | Case: U-Chassis | Size: 6" x 4" x 1.5" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115, 120, 230 |
| Input Voltage Range: | 90~264 |
| Auto Selectable Input: | 90-132/180-264VAC |
| Input Frequency: | 47-63 Hz |
| Output | |
| Output Voltage: | 5, 9, 12, 15, 18, 24, 28, 36, 48, 54 |
| Output Current: | 45A, 29.1A, 13.64A, 26.67A, 14.17A, 21.33A, 11.33A, 17.78A, 9.44A, 13.33A, 7.08A, 11.43A, 6.07A, 8.89A, 4.72A, 3.54A, 6.67A, 5.93A, 3.15A |
| Output Power (Watts): | 125, 170, 225, 250, 262, 320 |
| Output Trim/Adjustability: | ±5% |
| Short Circuit Protection: | Yes |
| Over Voltage Protection: | Yes |
| Thermal Protection: | Yes |
| General | |
| Efficiency: | Up to 83% |
| Isolation: | 3000VAC |
| Environmental | |
| Operating Temperature: | 0 to 70°C |
| Storage Temperature: | -20 to 85°C |
| Physical | |
| Weight: | U Type: 21.16oz (600g) C Type: 22.93oz (650g) E Type: 26.45oz (750g) F Type: 28.22oz (800g) |

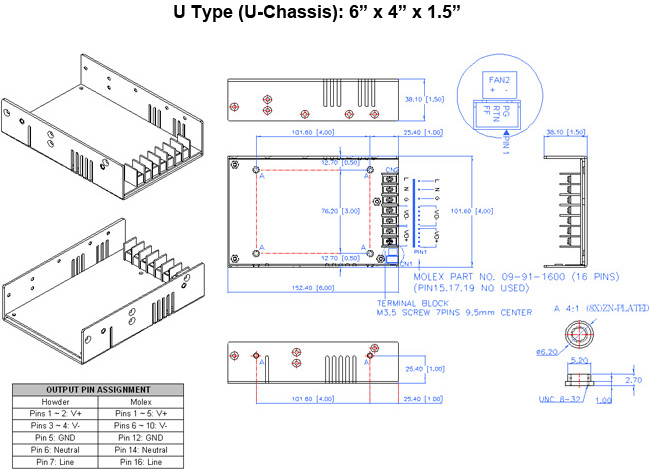

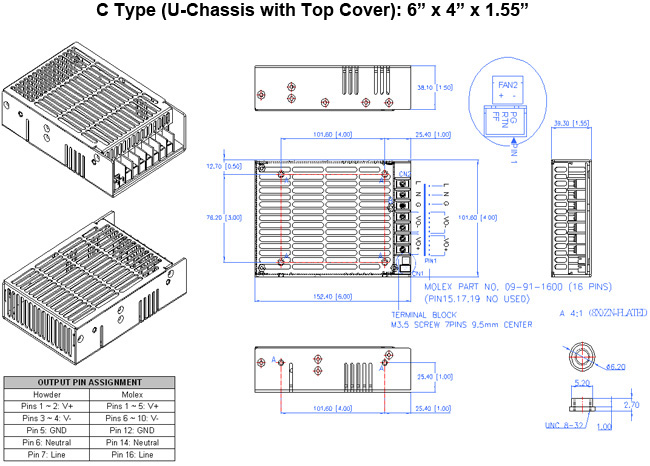

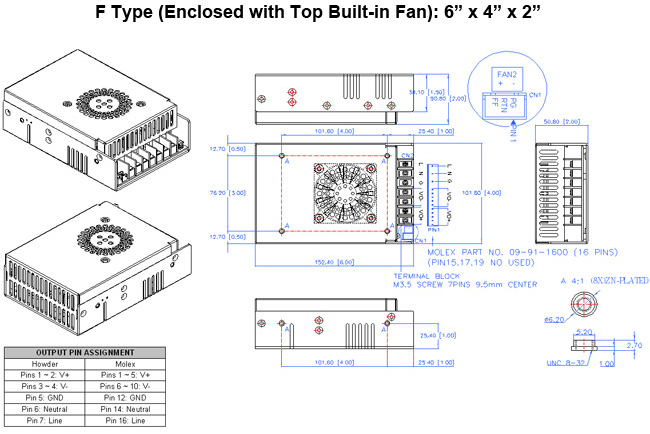

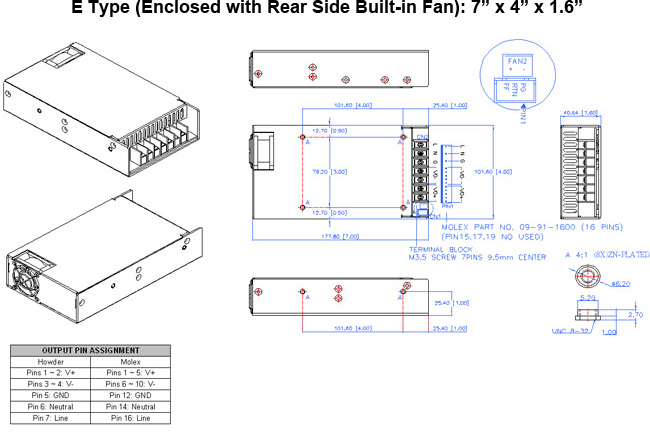

| Dimensions: | U Type: 6" x 4" x 1.5" (152.4 x 101.6 x 38.1 mm) C Type: 6" x 4" x 1.55" (152.4 x 101.6 x 39.37 mm) E Type: 7" x 4" x 1.6" (177.8 x 101.6 x 40.64 mm) F Type: 6" x 4" x 2" (152.4 x 101.6 x 50.8 mm) |
| Notes & safety | |
| Notes: | 1. PSRL0601 Series is designated as PSRL0601x-y where x can be U (U-chassis), C (U-chassis with top cover) E (Enclosed type with rear side built-in fan) or F (Enclosed type with top side built-in fan ), y can be 05, 09, 12, 15, 18, 24, 28, 36, 48, 54 for output voltage. 2. PSRL0601U Series: U-Chassis @ 320W max. with 22CFM max. forced airflow or 180W convection cooled output. 3. PSRL0601C Series: U-Chassis @ 170W max convection cooled. 4. PSRL0601E Series: Enclosed with rear side built-in fan @ 320W max. 5. PSRL0601F Series: Enclosed with top built-in fan @ 320W max. 6. Ripple and noise is measured from 10KHZ to 20MHz bandwidth at output with parallel 0.1μF ceramic and 22μF electrolytic capacitors. 7. Providing peak power to 700W within 500uS for all models, longer duty duration must contact manufacturer. 8. All output ranges are covered in agency certifications and the preset voltage will be set as standard models if nothing different is requested. If desired preset output does not appear, please contact us. 9. 1% minimum load is required to maintain the ripple and regulation. 10. Output is fully isolated 11. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL60950-1, CSA C22.2 No. 60950-1, TUV EN60950-1, CB |
| RoHS Compliance: | Yes |
| TUV Efficiency Level: | TUV EN60950-1 |
.jpg)
.jpg)
.jpg)
.jpg)
