PSPWX150

The PSPWX150 series of AC/DC switching power supplies provides 120 Watts of output power with convection cooling and 150 Watts with 30CFM forced air. This series consists of dual, triple, and quad output models with a 90-264VAC input voltage range. These supplies also feature a high efficiency up to 80% and a power factor > 0.9 at 230VAC. These supplies are also protected against short circuit, over load, and over temperature conditions. The PSPWX150 series has UL60950-1, CSA 22.2 No.60950-1, Nemko EN60950-1, and CB IEC60950-1 safety approvals. This series is also CE marked and meets EN55022 Class B, CISPR22 Class B, and FCC Part 15 Class B EMC standards. Both open frame and U-chassis mechanical options are available for this series.

• RoHS Compliant • Dual to Quad Outputs • High Efficiency up to 80% • 120 Watts with Convection Cooling • 150 Watts with Forced Air Cooling • 90~264 VAC Input Voltage Range • Built-in Active PFC Function, PF > 0.9 at 230VAC • Short Circuit, Over Load, and Over Temperature Protection • MTBF > 100,000 Hours • UL60950-1, CSA 22.2 No.60950-1, Nemko EN60950-1, & CB IEC60950-1 Safety Approvals • Open Frame and U-Chassis Mechanical Options Available
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
PSPW150B-3Y02-O Input Voltage: 90~264 Output Voltage: 3.3, 5, 12 Output Current: 12A, 12A, 7.5A Output Power (W): 150 No. Outputs: T Case: Open Frame Get a Quote
PSPW150B-3Y02-U Input Voltage: 90~264 Output Voltage: 3.3, 5, 12 Output Current: 12A, 12A, 7.5A Output Power (W): 150 No. Outputs: T Case: U-Chassis Get a Quote
PSPW150B-4Y02-U Input Voltage: 90~264 Output Voltage: 3.3, 5, 12, -12 Output Current: 12A, 12A, 7.5A, 2.5A Output Power (W): 150 No. Outputs: M Case: U-Chassis Get a Quote
PSPW150B-4Y02-O Input Voltage: 90~264 Output Voltage: 3.3, 5, 12, -12 Output Current: 12A, 12A, 7.5A, 2.5A Output Power (W): 150 No. Outputs: M Case: Open Frame Get a Quote
PSPW150B-4Y01-U Input Voltage: 90~264 Output Voltage: 3.3, 5, 12, 24 Output Current: 12A, 12A, 7.5A, 4.5A Output Power (W): 150 No. Outputs: M Case: U-Chassis Get a Quote
PSPW150B-4Y01-O Input Voltage: 90~264 Output Voltage: 3.3, 5, 12, 24 Output Current: 12A, 12A, 7.5A, 4.5A Output Power (W): 150 No. Outputs: M Case: Open Frame Get a Quote
PSPW150B-4Y07-U Input Voltage: 90~264 Output Voltage: 3.3, 5, 12, 28 Output Current: 12A, 12A, 7.5A, 4.0A Output Power (W): 150 No. Outputs: M Case: U-Chassis Get a Quote
PSPW150B-4Y07-O Input Voltage: 90~264 Output Voltage: 3.3, 5, 12, 28 Output Current: 12A, 12A, 7.5A, 4.0A Output Power (W): 150 No. Outputs: M Case: Open Frame Get a Quote
PSPW150B-4Y04-O Input Voltage: 90~264 Output Voltage: 3.3, 5, 12, 48 Output Current: 12A, 12A, 7.5A, 1.0A Output Power (W): 150 No. Outputs: M Case: Open Frame Get a Quote
PSPW150B-4Y04-U Input Voltage: 90~264 Output Voltage: 3.3, 5, 12, 48 Output Current: 12A, 12A, 7.5A, 1.0A Output Power (W): 150 No. Outputs: M Case: U-Chassis Get a Quote
PSPW150B-4Y03-U Input Voltage: 90~264 Output Voltage: 3.3, 5, 15, -15 Output Current: 12A, 12A, 3.5A, 1.75A Output Power (W): 150 No. Outputs: M Case: U-Chassis Get a Quote
PSPW150B-4Y03-O Input Voltage: 90~264 Output Voltage: 3.3, 5, 15, -15 Output Current: 12A, 12A, 3.5A, 1.75A Output Power (W): 150 No. Outputs: M Case: Open Frame Get a Quote
PSPW150B-3Y03-O Input Voltage: 90~264 Output Voltage: 3.3, 5, 24 Output Current: 12A, 12A, 4.5A Output Power (W): 150 No. Outputs: T Case: Open Frame Get a Quote
PSPW150B-3Y03-U Input Voltage: 90~264 Output Voltage: 3.3, 5, 24 Output Current: 12A, 12A, 4.5A Output Power (W): 150 No. Outputs: T Case: U-Chassis Get a Quote
PSPW150B-2Y03-U Input Voltage: 90~264 Output Voltage: 5, 12 Output Current: 12A, 7.5A Output Power (W): 150 No. Outputs: D Case: U-Chassis Get a Quote
PSPW150B-2Y03-O Input Voltage: 90~264 Output Voltage: 5, 12 Output Current: 12A, 7.5A Output Power (W): 150 No. Outputs: D Case: Open Frame Get a Quote
PSPW150B-3Y01-O Input Voltage: 90~264 Output Voltage: 5, 12, 24 Output Current: 12A, 7.5A, 4.5A Output Power (W): 150 No. Outputs: T Case: Open Frame Get a Quote
PSPW150B-3Y01-U Input Voltage: 90~264 Output Voltage: 5, 12, 24 Output Current: 12A, 7.5A, 4.5A Output Power (W): 150 No. Outputs: T Case: U-Chassis Get a Quote
PSPW150B-4Y05-U Input Voltage: 90~264 Output Voltage: 5, 12, 24, -12 Output Current: 12A, 7.5A, 4.5A, 1.5A Output Power (W): 150 No. Outputs: M Case: U-Chassis Get a Quote
PSPW150B-4Y05-O Input Voltage: 90~264 Output Voltage: 5, 12, 24, -12 Output Current: 12A, 7.5A, 4.5A, 1.5A Output Power (W): 150 No. Outputs: M Case: Open Frame Get a Quote
PSPW150B-4Y06-O Input Voltage: 90~264 Output Voltage: 5, 12, 24, -15 Output Current: 12A, 7.5A, 4.5A, 1.0A Output Power (W): 150 No. Outputs: M Case: Open Frame Get a Quote
PSPW150B-4Y06-U Input Voltage: 90~264 Output Voltage: 5, 12, 24, -15 Output Current: 12A, 7.5A, 4.5A, 1.0A Output Power (W): 150 No. Outputs: M Case: U-Chassis Get a Quote
PSPW150B-2Y02-O Input Voltage: 90~264 Output Voltage: 5, 24 Output Current: 12A, 4.5A Output Power (W): 150 No. Outputs: D Case: Open Frame Get a Quote
PSPW150B-2Y02-U Input Voltage: 90~264 Output Voltage: 5, 24 Output Current: 12A, 4.5A Output Power (W): 150 No. Outputs: D Case: U-Chassis Get a Quote
PSPW150B-2Y01-O Input Voltage: 90~264 Output Voltage: 12, 24 Output Current: 7.5A, 4.5A Output Power (W): 150 No. Outputs: D Case: Open Frame Get a Quote
PSPW150B-2Y01-U Input Voltage: 90~264 Output Voltage: 12, 24 Output Current: 7.5A, 4.5A Output Power (W): 150 No. Outputs: D Case: U-Chassis Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 90~264
PFC: > 0.95 at 115VAC> 0.90 at 230VAC
Input Frequency: 47-63Hz
Output
Output Voltage: 3.3, 5, 12, -12, 15, -15, 24, 28, 48
Output Current: 12A, 7.5A, 4.0A, 4.5A, 3.5A, 2.5A, 1.5A 1.75A, 1.0A
Output Power (Watts): 150
Short Circuit Protection: Automatic Recovery
Thermal Protection: 84-92°C
General
Efficiency: 80%
Environmental
Operating Temperature: 0 to 60°C
Storage Temperature: -40 to 85°C
Physical
Weight: Open Frame Models: 0.86 lbs (390g)
U-Chassis Models: 1.11 lbs (500g)

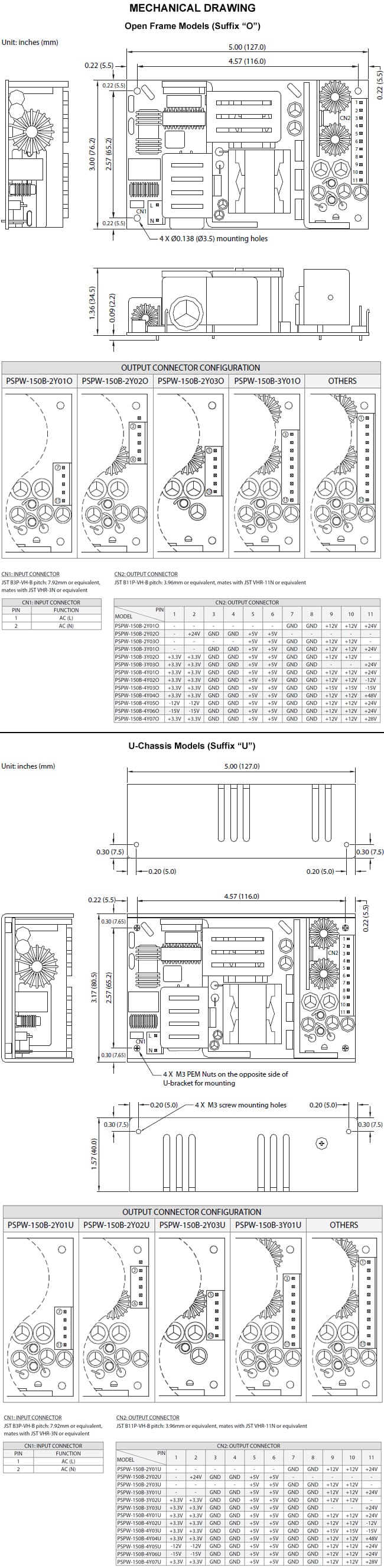

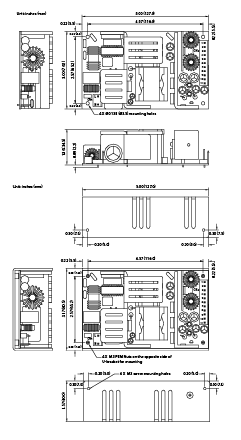

Dimensions: Open Frame Models: 5.00" x 3.00" x 1.36" (127 x 76.2 x 34.5 mm)
U-Chassis Models: 5.00" x 3.17" x 1.57" (127 x 80.5 x 40.0 mm)
Notes & safety
Notes: 1. The “X” in the model number can be “O” for open frame type or “U” for U-chassis type.
2. Measured at 20MHz limited bandwidth and with 0.1μF ceramic and 10μF electrolytic capacitors in parallel across the output.
3. 120W max. with convection cooling and 150W max. with 30CFM minimum forced airflow.
4. These supplies require a minimum load on the output to maintain specified regulations. Operation under no-load conditions will not damage these devices; however, they may not meet all listed specifications.
Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL60950-1, CSA 22.2 No.60950-1, Nemko EN60950-1, CB IEC60950-1
RoHS Compliance: Yes
TUV Efficiency Level: TUV EN60601-1
