PSPW360

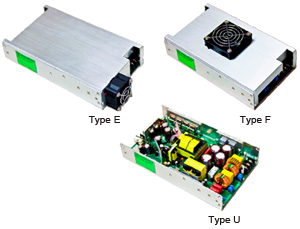

The PSPW360 series of AC/DC switching power supplies provides 360 Watts of output power with 30CFM forced airflow and 270W with convection cooling. This series consists of single output models ranging from 12VDC to 57VDC with a 90~264VAC input voltage range and active PFC. This series has UL60950-1, TUV EN60950-1, CB IEC60950-1, and CE safety approvals. All models are protected against short circuit, over load, over voltage, and over temperature conditions. Models are available in U-Chassis (Type U), enclosed with rear-side built-in fan (Type E), and enclosed with top built-in fan (Type F) designs. This series also has a current sharing option (suffix “D”).
• Active PFC
• Remote Inhibit Function
• Power Good Output
• 5V/1A Standby Output
• 12V/1A Output for Fan
• Single Outputs
• 270W with Convection Cooling
• 360W with 30CFM Forced Airflow
• 90~264VAC Input Voltage Range
• Up to 86% High Efficiency
• Current Sharing Option (Single Wire)
• Short Circuit, Over Load, Over Voltage, & Over Temp. Protection
• UL60950-1, CB IEC60950-1, & TUV EN60950-1 Safety Approvals
• 3 Mechanical Options Available: U-Chassis, Enclosed w/ Rear-Side Fan, and Enclosed w/ Top Fan
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSPW360B-1Y12-U | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 30A | Output Power (W): 360 | No. Outputs: S | Case: U-Chassis | Size: 8" x 4.66" x 1.51" | Get a Quote |
| PSPW360B-1Y24-U | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 15A | Output Power (W): 360 | No. Outputs: S | Case: U-Chassis | Size: 8" x 4.66" x 1.51" | Get a Quote |
| PSPW360B-1Y30-U | Input Voltage: 90~264 | Output Voltage: 30 | Output Current: 12A | Output Power (W): 360 | No. Outputs: S | Case: U-Chassis | Size: 8" x 4.66" x 1.51" | Get a Quote |
| PSPW360B-1Y36-U | Input Voltage: 90~264 | Output Voltage: 36 | Output Current: 10A | Output Power (W): 360 | No. Outputs: S | Case: U-Chassis | Size: 8" x 4.66" x 1.51" | Get a Quote |
| PSPW360B-1Y48-U | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 7.5A | Output Power (W): 360 | No. Outputs: S | Case: U-Chassis | Size: 8" x 4.66" x 1.51" | Get a Quote |
| PSPW360B-1Y54-U | Input Voltage: 90~264 | Output Voltage: 54 | Output Current: 6.67A | Output Power (W): 360 | No. Outputs: S | Case: U-Chassis | Size: 8" x 4.66" x 1.51" | Get a Quote |
| PSPW360B-1Y57-E | Input Voltage: 90~264 | Output Voltage: 57 | Output Current: 6.32A | Output Power (W): 360 | No. Outputs: S | Case: Enclosed with Fan | Size: 9.03" x 4.66" x 1.63" | Get a Quote |
| PSPW360B-1Y12-E | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 30A | Output Power (W): 360 | No. Outputs: S | Case: Enclosed with Fan | Size: 9.03" x 4.66" x 1.63" | Get a Quote |
| PSPW360B-1Y24-E | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 15A | Output Power (W): 360 | No. Outputs: S | Case: Enclosed with Fan | Size: 9.03" x 4.66" x 1.63" | Get a Quote |
| PSPW360B-1Y30-E | Input Voltage: 90~264 | Output Voltage: 30 | Output Current: 12A | Output Power (W): 360 | No. Outputs: S | Case: Enclosed with Fan | Size: 9.03" x 4.66" x 1.63" | Get a Quote |
| PSPW360B-1Y36-E | Input Voltage: 90~264 | Output Voltage: 36 | Output Current: 10A | Output Power (W): 360 | No. Outputs: S | Case: Enclosed with Fan | Size: 9.03" x 4.66" x 1.63" | Get a Quote |
| PSPW360B-1Y48-E | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 7.5A | Output Power (W): 360 | No. Outputs: S | Case: Enclosed with Fan | Size: 9.03" x 4.66" x 1.63" | Get a Quote |
| PSPW360B-1Y54-E | Input Voltage: 90~264 | Output Voltage: 54 | Output Current: 6.67A | Output Power (W): 360 | No. Outputs: S | Case: Enclosed with Fan | Size: 9.03" x 4.66" x 1.63" | Get a Quote |
| PSPW360B-1Y12-F | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 30A | Output Power (W): 360 | No. Outputs: S | Case: Enclosed with Top Fan | Size: 8" x 4.66" x 2.85" | Get a Quote |
| PSPW360B-1Y24-F | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 15A | Output Power (W): 360 | No. Outputs: S | Case: Enclosed with Top Fan | Size: 8" x 4.66" x 2.85" | Get a Quote |
| PSPW360B-1Y30-F | Input Voltage: 90~264 | Output Voltage: 30 | Output Current: 12A | Output Power (W): 360 | No. Outputs: S | Case: Enclosed with Top Fan | Size: 8" x 4.66" x 2.85" | Get a Quote |
| PSPW360B-1Y36-F | Input Voltage: 90~264 | Output Voltage: 36 | Output Current: 10A | Output Power (W): 360 | No. Outputs: S | Case: Enclosed with Top Fan | Size: 8" x 4.66" x 2.85" | Get a Quote |
| PSPW360B-1Y48-F | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 7.5A | Output Power (W): 360 | No. Outputs: S | Case: Enclosed with Top Fan | Size: 8" x 4.66" x 2.85" | Get a Quote |
| PSPW360B-1Y54-F | Input Voltage: 90~264 | Output Voltage: 54 | Output Current: 6.67A | Output Power (W): 360 | No. Outputs: S | Case: Enclosed with Top Fan | Size: 8" x 4.66" x 2.85" | Get a Quote |
| PSPW360B-1Y57-F | Input Voltage: 90~264 | Output Voltage: 57 | Output Current: 6.32A | Output Power (W): 360 | No. Outputs: S | Case: Enclosed with Top Fan | Size: 8" x 4.66" x 2.85" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| PFC: | > 0.9 at 115VAC/230VAC |
| Input Frequency: | 47-63Hz |
| Output | |
| Output Voltage: | 12, 24, 30, 36, 48, 54, 57 |
| Output Current: | 30A, 15A, 12A, 10A, 7.5A, 6.67A, 6.32A |
| Output Power (Watts): | 360 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | 110-130% |
| General | |
| Efficiency: | 86% |
| Isolation: | 4242VDC |
| Environmental | |
| Operating Temperature: | 0 to 50°C |
| Physical | |
| Weight: | U Type: 2.5 lbs (1134g) E & F Types: 3.3 lbs (1497g) |

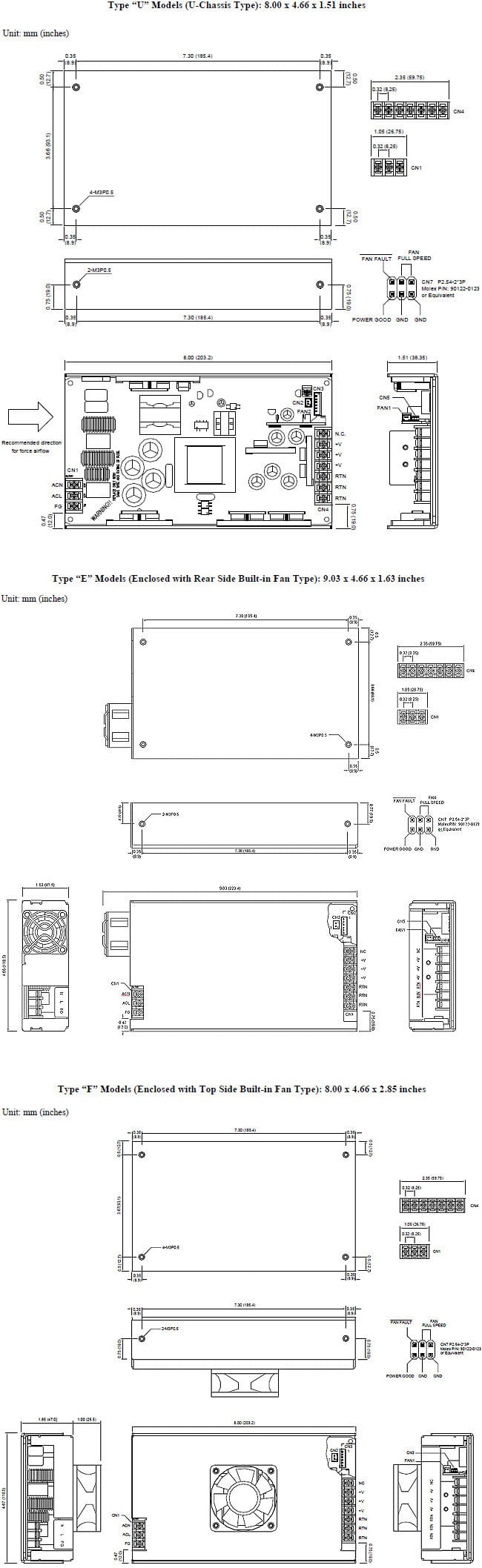

| Dimensions: | U Type: 8.00 x 4.66 x 1.51 (203.2 x 118.5 x 38.5 mm) E Type: 9.03 x 4.66 x 1.63 (229.4 x 118.5 x 41.5 mm) F Type: 8.00 x 4.66 x 2.85 (203.2 x 118.5 x 72.5 mm) |
| Notes & safety | |
| Notes: | 1. Current share is optional. For current sharing function please add the suffix “D” to the model number (Ex: PSPW360B-1Y24-UD). 2. U Type: 270W max. with convection cooling at +40°C ambient temperature. U Type: 360W max. with 30CFM forced air at +50°C ambient temperature. E & F Types: 360W max. at +50°C ambient temperature. 3. Ripple & noise is measured at 20MHz limited bandwidth and with 0.1µF ceramic and 10µF/50V electrolytic capacitors bypassed at the output connector at 5% to 100% full load and nominal line. 4. The leakage current measurement is made in accordance with Safety Agency requirements. 5. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL 60950-1, CSA-C22.2 NO.950-1, TUV EN60950-1, CB IEC60950-1 |
| TUV Efficiency Level: | TUV EN60950-1 |
