PSPW120
The PSPW120 Series offers 120 Watts in a single output universal input open frame power supply. All models are over voltage, over load, and short circuit protected. This series also offers output voltages from 12 to 24VDC.
● PFC > 0.9
● Single Output
● 90~264VAC Input voltage Range
● Output Voltages from 12 to 48VDC
● 5(L) x 3(W) x 1.34(H) inches (127 x 76.2 x 34 mm)
● Over Voltage, Over Load, and Short Circuit Protected
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSPW120B-1Y12P | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 10A | Output Power (W): 120 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.18" | Get a Quote |
| PSPW120B-1Y15P | Input Voltage: 90~264 | Output Voltage: 15 | Output Current: 8A | Output Power (W): 120 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.18" | Get a Quote |
| PSPW120B-1Y18P | Input Voltage: 90~264 | Output Voltage: 18 | Output Current: 6.67 A | Output Power (W): 120 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.18" | Get a Quote |
| PSPW120B-1Y19P | Input Voltage: 90~264 | Output Voltage: 19 | Output Current: 6.32 A | Output Power (W): 120 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.18" | Get a Quote |
| PSPW120B-1Y24P | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 5A | Output Power (W): 120 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.18" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| PFC: | Yes |
| Input Frequency: | 47-63 Hz |
| Output | |
| Output Voltage: | 12, 15, 18, 19, 24 |
| Output Current: | 5A, 6.32A, 6.67A, 8A, 10A |
| Output Power (Watts): | 120 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | 110-130% |
| General | |
| Efficiency: | 85% |
| Environmental | |
| Operating Temperature: | 0 to 40°C |
| Storage Temperature: | -10 to 70°C |
| Physical | |
| Weight: | 10 oz. |

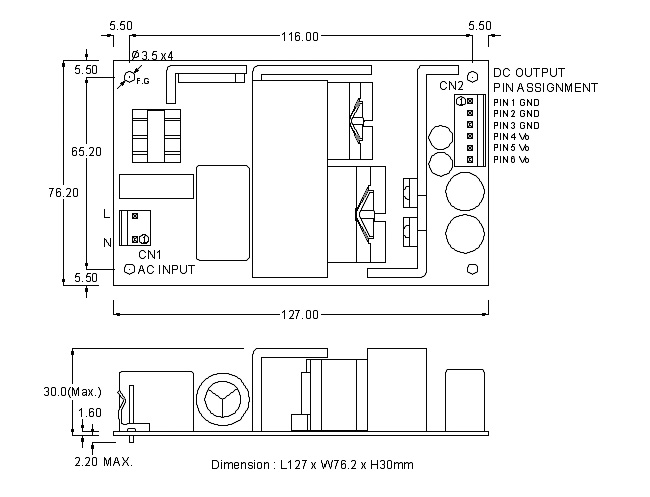

| Dimensions: | 5" x 3" x 1.18" (127 x 76.2 x 30 mm) |
| Notes & safety | |
| Notes: | 1. At 25°C including initial tolerance, line voltage, load currents, and output voltages adjusted to factory settings. 2. Peak-to-peak with 20mHz bandwidth with a tantalum 10uF capacitor in parallel with a 0.1uF ceramic capacitor. 3. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL 60950-1, CSA C22.2 No. 60950-1, TUV EN60950-1, CB IEC 60950-1 |
| RoHS Compliance: | Yes |
| TUV Efficiency Level: | TUV EN60950-1 |
