PSPSD-75
The PSPSD-75 series of AC/DC switching power supplies provides up to 77.8 Watts of output power in a 5.08” x 3.90” x 1.50” enclosed case. This series consists of single output models ranging from 5VDC to 48VDC with an input voltage range of 90~264VAC (127~370VDC). Standard features include high efficiency up to 89%, 3000VAC I/O isolation, and a -25°C to +70°C operating temperature range. This series also has short circuit, over load, and over voltage protection. All models are RoHS compliant and have UL60950-1 (2nd edition), IEC60950-1:2005 (2nd edition), and EN60950-1:2006 safety approvals.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSPSD-75-5 | Input Voltage: 90~264 | Output Voltage: 5 | Output Current: 12A | Output Power (W): 60 | No. Outputs: S | Case: Enclosed Case | Size: 5.08" x 3.9" x 1.5" | Get a Quote |
| PSPSD-75-12 | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 6A | Output Power (W): 72 | No. Outputs: S | Case: Enclosed Case | Size: 5.08" x 3.9" x 1.5" | Get a Quote |
| PSPSD-75-15 | Input Voltage: 90~264 | Output Voltage: 15 | Output Current: 5A | Output Power (W): 75 | No. Outputs: S | Case: Enclosed Case | Size: 5.08" x 3.9" x 1.5" | Get a Quote |
| PSPSD-75-24 | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 3.2A | Output Power (W): 76.8 | No. Outputs: S | Case: Enclosed Case | Size: 5.08" x 3.9" x 1.5" | Get a Quote |
| PSPSD-75-48 | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 1.62A | Output Power (W): 77.8 | No. Outputs: S | Case: Enclosed Case | Size: 5.08" x 3.9" x 1.5" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47-63Hz |
| Output | |
| Output Voltage: | 5, 12, 15, 24, 48 |
| Voltage Accuracy: | ±3.0% |
| Output Current: | 12A, 6A, 5A, 3.2A, 1.62A |
| Output Power (Watts): | 60, 72, 75, 76.8, 77.8 |
| Output Trim/Adjustability: | -5, +10% |
| Short Circuit Protection: | Long-term mode, Automatic Recovery |
| Over Voltage Protection: | 105-150% |
| General | |
| Efficiency: | Up to 89% |
| Isolation: | 3000VAC; ≤10mA |
| Environmental | |

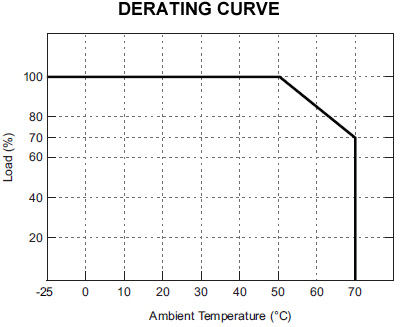

| Operating Temperature: | -25 to 70°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | 1.04 lbs (473g) |

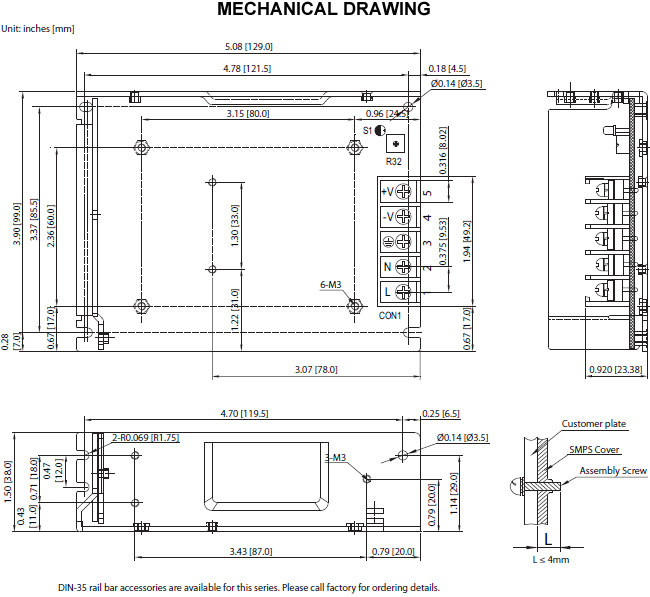

| Dimensions: | 5.08" x 3.90" x 1.50" (129.0 x 99.0 x 38.0 mm) |
| Notes & safety | |
| Notes: | 1. Ripple & noise is measured at 20MHz limited bandwidth and using a 12" twisted pair-wire terminated with a 0.1µF & 10µF capacitors in parallel. 2. The power supply is considered a component which will be installed into final equipment. The final equipment must be re- confirmed that it still meets EMC directives. 3. DIN-35 rail bar accessories are available for this series. Please call factory for ordering details. 4. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL60950-1 (2nd edition), IEC60950-1:2005 (2nd edition), EN60950-1:2006 |
| RoHS Compliance: | Yes |
