PSPSD-25
The PSPSD-25 series of AC/DC switching power supplies offers up to 26.4 Watts of output power in a 3.11” x 2.01” x 1.13” enclosed case. All models have a single output and a universal AC input voltage range of 88~264VAC. Some features include wide operating temperature range (-25°C to +70°C), ±10% output adjustability, and over load, over voltage, and short circuit protection. These supplies have U L60950-1 2nd Ed, IEC 60950-1:2005 2nd Ed, EN60950-1:2006 safety approvals and are 100% full load burn-in tested.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSPSD-25-S3.3 | Input Voltage: 90~264 | Output Voltage: 3.3 | Output Current: 5A | Output Power (W): 16.5 | No. Outputs: S | Case: Enclosed Case | Size: 3.11" x 2.01" x 1.13" | Get a Quote |
| PSPSD-25-S5 | Input Voltage: 88~264 | Output Voltage: 5 | Output Current: 5A | Output Power (W): 25 | No. Outputs: S | Case: Enclosed Case | Size: 3.11" x 2.01" x 1.13" | Get a Quote |
| PSPSD-25-S12 | Input Voltage: 88~264 | Output Voltage: 12 | Output Current: 2.1A | Output Power (W): 25 | No. Outputs: S | Case: Enclosed Case | Size: 3.11" x 2.01" x 1.13" | Get a Quote |
| PSPSD-25-S15 | Input Voltage: 88~264 | Output Voltage: 15 | Output Current: 1.7A | Output Power (W): 25.5 | No. Outputs: S | Case: Enclosed Case | Size: 3.11" x 2.01" x 1.13" | Get a Quote |
| PSPSD-25-S24 | Input Voltage: 88~264 | Output Voltage: 24 | Output Current: 1.1A | Output Power (W): 26.4 | No. Outputs: S | Case: Enclosed Case | Size: 3.11" x 2.01" x 1.13" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47-63Hz |
| Output | |
| Output Voltage: | 3.3, 5, 12, 15, 24 |
| Voltage Accuracy: | 3.3VDC & 5VDC Models: ±2.0% 12VDC, 15VDC, & 254VDC Models: ±1.0% |
| Output Current: | 5A, 2.1A, 1.7A, 1.1A |
| Output Power (Watts): | 16.5, 25, 25.5, 26.4 |
| Output Trim/Adjustability: | ±10% |
| Short Circuit Protection: | Long-term mode, Automatic Recovery |
| Over Voltage Protection: | 105-150% |
| General | |
| Efficiency: | Up to 84% |
| Isolation: | 3000VAC; ≤10mA |
| Environmental | |

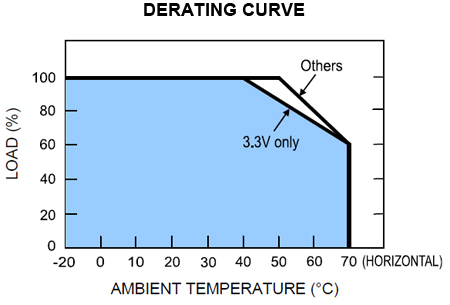

| Operating Temperature: | -25 to 70°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | 7.65 oz. |

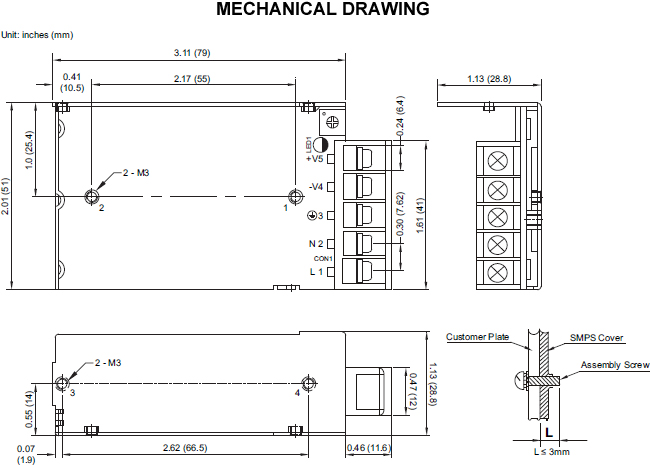

| Dimensions: | 3.11" x 2.01" x 1.13" (79 x 51 x 28.8 mm) |
| Notes & safety | |
| Notes: | 1. Ripple & Noise measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uF & 10uF parallel capacitor. 2. The SPS is considered a component that will be installed into final equipment. Equipment must be re-confirmed that it still meets EMC directives. 3. Accessories for DIN-35 rail bar are available. Contact factory for details. 4. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL60950-1 2nd Ed; IEC 60950-1:2005 (2nd Ed); EN60950-1:2006 |
