PSPRL1103M
The PSPRL1103M series of medical AC/DC switching power supplies offers up to 300 Watts of output power. This series consists of single output models with PFC corrected to EN61000-3-2 Class D and a 90~264VAC input voltage range. These supplies also have short circuit, over voltage, over power, and over temperature protection. Models are available in U-Chassis (Type U), enclosed with rear-side built-in fan (Type E), and enclosed with top-side built-in fan (Type F) designs. This series has UL60601-1, EN60601-1, and IEC60601-1 (3rd Edition) medical approvals. All models in this series are RoHS compliant.
• RoHS Compliant
• High Quality & Reliable Component Usage
• Variable Fan Speed & Low Acoustical Noise
• 90~264VAC Input Voltage Range
• Output Voltages Available from 12~52VDC
• Power Factor Corrected to EN61000-3-2 Class D
• MTBF: 100,000 Hours (MIL-HDBK-217F)
• Compact 300W with 1U Height Power Density: 12.5 Watts/cu in
• Providing Peak Power 600W within 500µs Duty Duration
• U-Chassis and Enclosed with Built-in Fan Mechanical Options
• Short Circuit, Over Power, Over Voltage, and Over Temperature Protection
• UL60601-1, EN60601-1, IEC60601-1 (3rd Edition) Medical Approvals
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSPRL1103MU-12 | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 25A | Output Power (W): 300 | No. Outputs: S | Case: U-Chassis | Size: 5" x 3.2" x 1.5" | Get a Quote |
| PSPRL1103MU-15 | Input Voltage: 90~264 | Output Voltage: 15 | Output Current: 20A | Output Power (W): 300 | No. Outputs: S | Case: U-Chassis | Size: 5" x 3.2" x 1.5" | Get a Quote |
| PSPRL1103MU-24 | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 12.5A | Output Power (W): 300 | No. Outputs: S | Case: U-Chassis | Size: 5" x 3.2" x 1.5" | Get a Quote |
| PSPRL1103MU-36 | Input Voltage: 90~264 | Output Voltage: 36 | Output Current: 8.33A | Output Power (W): 300 | No. Outputs: S | Case: U-Chassis | Size: 5" x 3.2" x 1.5" | Get a Quote |
| PSPRL1103MU-48 | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 6.25A | Output Power (W): 300 | No. Outputs: S | Case: U-Chassis | Size: 5" x 3.2" x 1.5" | Get a Quote |
| PSPRL1103ME-12 | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 25A | Output Power (W): 300 | No. Outputs: S | Case: Enclosed with Fan | Size: 6.5" x 3.2" x 1.6" | Get a Quote |
| PSPRL1103ME-15 | Input Voltage: 90~264 | Output Voltage: 15 | Output Current: 20A | Output Power (W): 300 | No. Outputs: S | Case: Enclosed with Fan | Size: 6.5" x 3.2" x 1.6" | Get a Quote |
| PSPRL1103ME-24 | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 12.5A | Output Power (W): 300 | No. Outputs: S | Case: Enclosed with Fan | Size: 6.5" x 3.2" x 1.6" | Get a Quote |
| PSPRL1103ME-36 | Input Voltage: 90~264 | Output Voltage: 36 | Output Current: 8.33A | Output Power (W): 300 | No. Outputs: S | Case: Enclosed with Fan | Size: 6.5" x 3.2" x 1.6" | Get a Quote |
| PSPRL1103ME-48 | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 6.25A | Output Power (W): 300 | No. Outputs: S | Case: Enclosed with Fan | Size: 6.5" x 3.2" x 1.6" | Get a Quote |
| PSPRL1103MF-12 | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 25A | Output Power (W): 300 | No. Outputs: S | Case: Enclosed with Top Fan | Size: 5" x 3.2" x 2" | Get a Quote |
| PSPRL1103MF-15 | Input Voltage: 90~264 | Output Voltage: 15 | Output Current: 20A | Output Power (W): 300 | No. Outputs: S | Case: Enclosed with Top Fan | Size: 5" x 3.2" x 2" | Get a Quote |
| PSPRL1103MF-24 | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 12.5A | Output Power (W): 300 | No. Outputs: S | Case: Enclosed with Top Fan | Size: 5" x 3.2" x 2" | Get a Quote |
| PSPRL1103MF-36 | Input Voltage: 90~264 | Output Voltage: 36 | Output Current: 8.33A | Output Power (W): 300 | No. Outputs: S | Case: Enclosed with Top Fan | Size: 5" x 3.2" x 2" | Get a Quote |
| PSPRL1103MF-48 | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 6.25A | Output Power (W): 300 | No. Outputs: S | Case: Enclosed with Top Fan | Size: 5" x 3.2" x 2" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Remote ON/OFF: | Yes |
| PFC: | Yes |
| Input Frequency: | 47-63Hz |
| Output | |
| Output Voltage: | 12, 15, 24, 36, 48 |
| Output Current: | 25A, 20A, 12.5A, 8.33A, 6.25A |
| Output Power (Watts): | 300 |
| Output Trim/Adjustability: | ±5% |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | Yes |
| Thermal Protection: | 110°C ±5°C |
| General | |
| Efficiency: | 88% |
| Isolation: | 4000VAC for 3 seconds (primary to secondary) |
| Environmental | |
| Operating Temperature: | 0 to 70°C |
| Storage Temperature: | -20 to 85°C |
| Physical | |
| Weight: | U Type Models: 1.10 lbs (500g) E Type Models: 1.32 lbs (600g) F Type Models: 1.43 lbs (650g) |

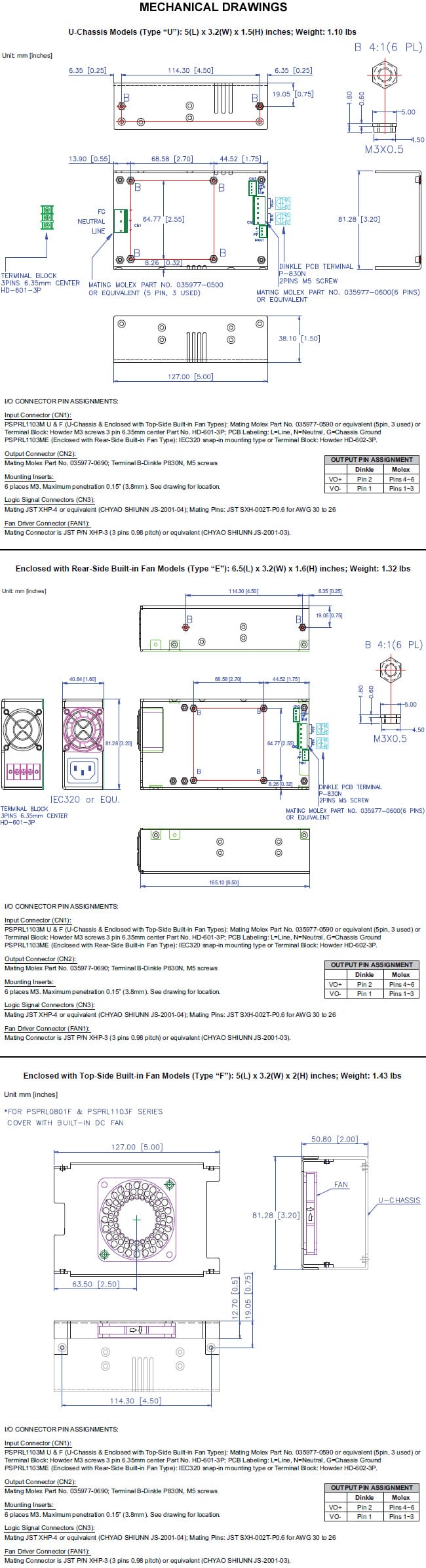

| Dimensions: | U Type Models: 5" x 3.2" x 1.5" (127 x 81.28 x 38.1 mm) E Type Models: 6.5" x 3.2" x 1.6" (165.1 x 81.28 x 40.64 mm) F Type Models: 5" x 3.2" x 2" (127 x 81.28 x 50.8 mm) |
| Notes & safety | |
| Notes: | 1. All output ranges are covered in agency certifications and the preset voltage will be set as standard models if nothing different is requested. If desired preset output does not appear, please contact factory. 2. PSPRL1103MU Models (U-Chassis): Needs 25CFM min. forced airflow to achieve 300W maximum power. PSPRL1103ME Models (Enclosed with rear-side built-in fan): 300W max. with built-in fan airflow. PSPRL1103MF Models (Enclosed with top-side built-in fan): 300W max. with built-in fan airflow. 3. Provides peak power to 600W within 500µs for all models; for longer duty duration must contact manufacturer. 4. 1% minimum load is required to maintain the ripple and regulation specifications. 5. Output is fully isolated. 6. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL60601-1, EN60601-1, IEC60601-1 (3rd Edition) |
| RoHS Compliance: | Yes |
| TUV Efficiency Level: | TUV EN60601-1 |
