PSPRL0801D
The PSPRL0801D series of AC/DC switching power supplies offers up to 240 Watts of output power. This series has dual output models with remote ON/OFF and 90~264VAC input voltage range. These supplies also have over voltage, short circuit, over temperature, and over power protection. Models are available in U-Chassis (Type U), U-Chassis with top cover (Type C), Enclosed with rear side built-in fan (Type E), and Enclosed with top built-in fan (Type F) designs. These supplies have UL/cUL 60950-1, TUV EN60950-1, CB, and CE Mark EN55022 and EN55024 safety approvals.
● Dual Output
● RoHS Compliant
● Remote ON/OFF
● Full Range AC Input
● 4 Mechanical Options Available
● Approved to UL, TUV, CE, and CB
● Power Factor Corrected to EN61000-3-2 Class D
● Smallest 240W with 1U Height Power Density: 10.41 Watts/cu in
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSPRL0801DC-0512 | Input Voltage: 90~264 | Output Voltage: 5, 12 | Output Current: 24 A, 13.33 A | Output Power (W): 240 | No. Outputs: D | Case: Enclosed Case | Size: 5" x 3.2" x 1.66" | Get a Quote |
| PSPRL0801DU-0512 | Input Voltage: 90~264 | Output Voltage: 5, 12 | Output Current: 24 A, 13.33 A | Output Power (W): 240 | No. Outputs: D | Case: U-Chassis | Size: 5" x 3.2" x 1.5" | Get a Quote |
| PSPRL0801DF-0512 | Input Voltage: 90~264 | Output Voltage: 5, 12 | Output Current: 24 A, 13.33 A | Output Power (W): 240 | No. Outputs: D | Case: Enclosed with Top Fan | Size: 5" x 3.2" x 2" | Get a Quote |
| PSPRL0801DE-0512 | Input Voltage: 90~264 | Output Voltage: 5, 12 | Output Current: 24 A, 13.33 A | Output Power (W): 240 | No. Outputs: D | Case: Enclosed with Fan | Size: 6.5" x 3.2" x 1.6" | Get a Quote |
| PSPRL0801DF-0524 | Input Voltage: 90~264 | Output Voltage: 5, 24 | Output Current: 24 A, 6.67 A | Output Power (W): 240 | No. Outputs: D | Case: Enclosed with Top Fan | Size: 5" x 3.2" x 2" | Get a Quote |
| PSPRL0801DE-0524 | Input Voltage: 90~264 | Output Voltage: 5, 24 | Output Current: 24 A, 6.67 A | Output Power (W): 240 | No. Outputs: D | Case: Enclosed with Fan | Size: 6.5" x 3.2" x 1.6" | Get a Quote |
| PSPRL0801DC-0524 | Input Voltage: 90~264 | Output Voltage: 5, 24 | Output Current: 24 A, 6.67 A | Output Power (W): 240 | No. Outputs: D | Case: Enclosed Case | Size: 5" x 3.2" x 1.66" | Get a Quote |
| PSPRL0801DU-0524 | Input Voltage: 90~264 | Output Voltage: 5, 24 | Output Current: 24 A, 6.67 A | Output Power (W): 240 | No. Outputs: D | Case: U-Chassis | Size: 5" x 3.2" x 1.5" | Get a Quote |
| PSPRL0801DE-0548 | Input Voltage: 90~264 | Output Voltage: 5, 48 | Output Current: 24 A, 3.33 A | Output Power (W): 240 | No. Outputs: D | Case: Enclosed with Fan | Size: 6.5" x 3.2" x 1.6" | Get a Quote |
| PSPRL0801DC-0548 | Input Voltage: 90~264 | Output Voltage: 5, 48 | Output Current: 24 A, 3.33 A | Output Power (W): 240 | No. Outputs: D | Case: Enclosed Case | Size: 5" x 3.2" x 1.66" | Get a Quote |
| PSPRL0801DU-0548 | Input Voltage: 90~264 | Output Voltage: 5, 48 | Output Current: 24 A, 3.33 A | Output Power (W): 240 | No. Outputs: D | Case: U-Chassis | Size: 5" x 3.2" x 1.5" | Get a Quote |
| PSPRL0801DF-0548 | Input Voltage: 90~264 | Output Voltage: 5, 48 | Output Current: 24 A, 3.33 A | Output Power (W): 240 | No. Outputs: D | Case: Enclosed with Top Fan | Size: 5" x 3.2" x 2" | Get a Quote |
| PSPRL0801DF-1224 | Input Voltage: 90~264 | Output Voltage: 12, 24 | Output Current: 13.33 A, 6.67 A | Output Power (W): 240 | No. Outputs: D | Case: Enclosed with Top Fan | Size: 5" x 3.2" x 2" | Get a Quote |
| PSPRL0801DE-1224 | Input Voltage: 90~264 | Output Voltage: 12, 24 | Output Current: 13.33 A, 6.67 A | Output Power (W): 240 | No. Outputs: D | Case: Enclosed with Fan | Size: 6.5" x 3.2" x 1.6" | Get a Quote |
| PSPRL0801DC-1224 | Input Voltage: 90~264 | Output Voltage: 12, 24 | Output Current: 13.33 A, 6.67 A | Output Power (W): 240 | No. Outputs: D | Case: Enclosed Case | Size: 5" x 3.2" x 1.66" | Get a Quote |
| PSPRL0801DU-1224 | Input Voltage: 90~264 | Output Voltage: 12, 24 | Output Current: 13.33 A, 6.67 A | Output Power (W): 240 | No. Outputs: D | Case: U-Chassis | Size: 5" x 3.2" x 1.5" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Remote ON/OFF: | Yes |
| PFC: | Yes |
| Input Frequency: | 47-63Hz |
| Output | |
| Output Voltage: | 5, 12, 24, 48 |
| Output Current: | 24A, 13.33A, 6.67A |
| Output Power (Watts): | 240 |
| Output Trim/Adjustability: | ±5% |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | Yes |
| Thermal Protection: | 85°C ±5°C |
| General | |
| Efficiency: | 70% |
| Isolation: | 3000VAC |
| Environmental | |
| Operating Temperature: | 0 to 70°C |
| Storage Temperature: | -20 to 85°C |
| Physical | |
| Weight: | U Type: 17.64oz (500g) C Type: 19.40oz (550g) F Type: 21.16oz (600g) E Type: 22.93oz (650g) |

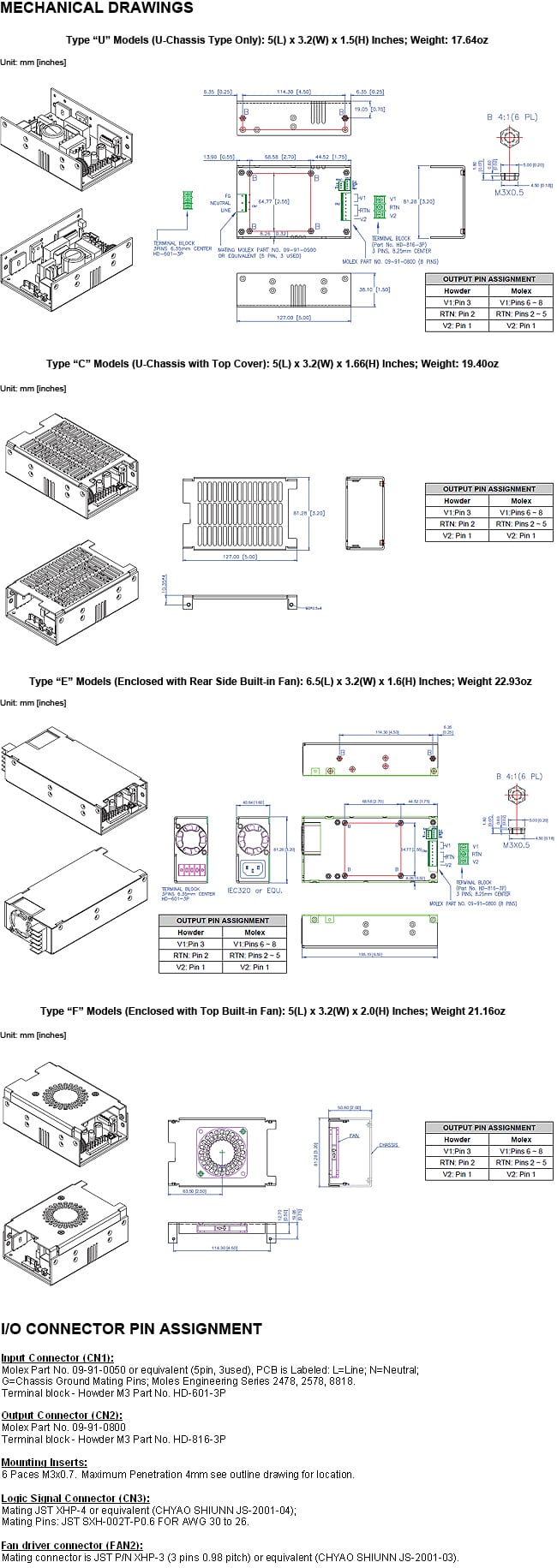

| Dimensions: | U Type: 5" x 3.2" x 1.5" (127.00 x 81.28 x 38.10 mm) C Type: 5" x 3.2" x 1.66" (127.00 x 81.28 x 42.10 mm) E Type: 6.5" x 3.2" x 1.6" (165.10 x 81.28 x 40.64 mm) F Type: 5" x 3.2" x 2" (127.00 x 81.28 x 50.8 mm) |
| Notes & safety | |
| Notes: | 1. Mechanical Options: The “x” in the model number can be U for U-chassis type, C for U-chassis with top cover, E for enclosed type with rear side built-in fan, or F for enclosed type with top side built-in fan. 2. U Type Models: U-Chassis @ 240W max. with 25CFM max. forced airflow or 120W convection cooled output. C Type Models: U-Chassis with top cover @ 240W max. with 25CFM max. forced airflow or 120W convection cooled output. E Type Models: Enclosed with rear side built-in fan @ 240W max. F Type Models: Enclosed with top built-in fan @ 240W max. 3. Ripple and noise is measured from 10KHZ to 20MHz bandwidth at output with 0.1μF ceramic and 22μF electrolytic capacitors in parallel. 4. Provides peak power to 600W within 500µs for all models; for longer duty duration must contact manufacturer. 5. 10% minimum load is required to maintain the ripple and regulation specifications. 6. Output is fully isolated. 7. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | FCC Part 15, CISPR 22 class B, conducted |
| RoHS Compliance: | Yes |
| TUV Efficiency Level: | TUV EN60950-1 |
