PSPRL0801

The PSPRL0801 series of AC/DC switching power supplies offers up to 150 Watts of output power with convection cooling and up to 300 Watts with 25CFM forced airflow. This series consists of single output models ranging from 2VDC to 60VDC. These models have a 90~264VAC input voltage range, active PFC corrected to EN61000-3-2 Class D, and built-in remote on/off, power good, and fan fail alarm functions. These supplies are also protected against short circuit, over voltage, over power, and over temperature conditions. Models are available in U-chassis (Type U), U-chassis with vented top cover (Type C), enclosed with end-side built-in fan (Type E), and enclosed with top-side built-in fan (Type F) designs. This series is RoHS compliant and has UL60950-1, EN60950-1, and IEC60950-1 safety approvals.

• RoHS Compliant • High Quality & Reliable Component Usage • Variable Fan Speed & Low Acoustical Noise • 90~264VAC Full Range Input • Compact 300W with 1U Height Power Density: 12.5 Watts /cu in • Single Outputs Ranging from 2VDC to 60VDC • Active Power Factor Corrected to EN61000-3-2 Class D • Built-in Remote On/Off, Power Good, and Fan Fail Alarm Functions • Peak Power 600W within 500µs Duty Duration • 150 Watts with Convection Cooling and 300 Watts with Forced Airflow • Short Circuit, Over Power, Over Voltage, and Over Temperature Protection • MTBF: 100,000 Hours (MIL-HDBK-217F) • UL60950-1, EN60950-1, & IEC60950-1 Safety Approvals • Four Mechanical Options Available
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
PSPRL0801U-05 Input Voltage: 90~264 Output Voltage: 5 Output Current: 42A Output Power (W): 210 No. Outputs: S Case: U-Chassis Get a Quote
PSPRL0801C-05 Input Voltage: 90~264 Output Voltage: 5 Output Current: 42A Output Power (W): 210 No. Outputs: S Case: Enclosed Case Get a Quote
PSPRL0801E-05 Input Voltage: 90~264 Output Voltage: 5 Output Current: 42A Output Power (W): 210 No. Outputs: S Case: Enclosed with Fan Get a Quote
PSPRL0801F-05 Input Voltage: 90~264 Output Voltage: 5 Output Current: 42A Output Power (W): 210 No. Outputs: S Case: Enclosed with Top Fan Get a Quote
PSPRL0801E-09 Input Voltage: 90~264 Output Voltage: 9 Output Current: 27.27A Output Power (W): 245.4 No. Outputs: S Case: Enclosed with Fan Get a Quote
PSPRL0801F-09 Input Voltage: 90~264 Output Voltage: 9 Output Current: 27.27A Output Power (W): 245.4 No. Outputs: S Case: Enclosed with Top Fan Get a Quote
PSPRL0801C-09 Input Voltage: 90~264 Output Voltage: 9 Output Current: 27.27A Output Power (W): 245.4 No. Outputs: S Case: Enclosed Case Get a Quote
PSPRL0801U-09 Input Voltage: 90~264 Output Voltage: 9 Output Current: 27.27A Output Power (W): 245.4 No. Outputs: S Case: U-Chassis Get a Quote
PSPRL0801U-12 Input Voltage: 90~264 Output Voltage: 12 Output Current: 25A Output Power (W): 300 No. Outputs: S Case: U-Chassis Get a Quote
PSPRL0801F-12 Input Voltage: 90~264 Output Voltage: 12 Output Current: 25A Output Power (W): 300 No. Outputs: S Case: Enclosed with Top Fan Get a Quote
PSPRL0801E-12 Input Voltage: 90~264 Output Voltage: 12 Output Current: 25A Output Power (W): 300 No. Outputs: S Case: Enclosed with Fan Get a Quote
PSPRL0801C-12 Input Voltage: 90~264 Output Voltage: 12 Output Current: 25A Output Power (W): 300 No. Outputs: S Case: Enclosed Case Get a Quote
PSPRL0801U-15 Input Voltage: 90~264 Output Voltage: 15 Output Current: 20A Output Power (W): 300 No. Outputs: S Case: U-Chassis Get a Quote
PSPRL0801F-15 Input Voltage: 90~264 Output Voltage: 15 Output Current: 20A Output Power (W): 300 No. Outputs: S Case: Enclosed with Top Fan Get a Quote
PSPRL0801E-15 Input Voltage: 90~264 Output Voltage: 15 Output Current: 20A Output Power (W): 300 No. Outputs: S Case: Enclosed with Fan Get a Quote
PSPRL0801C-15 Input Voltage: 90~264 Output Voltage: 15 Output Current: 20A Output Power (W): 300 No. Outputs: S Case: Enclosed Case Get a Quote
PSPRL0801E-18 Input Voltage: 90~264 Output Voltage: 18 Output Current: 16.67A Output Power (W): 300 No. Outputs: S Case: Enclosed with Fan Get a Quote
PSPRL0801C-18 Input Voltage: 90~264 Output Voltage: 18 Output Current: 16.67A Output Power (W): 300 No. Outputs: S Case: Enclosed Case Get a Quote
PSPRL0801U-18 Input Voltage: 90~264 Output Voltage: 18 Output Current: 16.67A Output Power (W): 300 No. Outputs: S Case: U-Chassis Get a Quote
PSPRL0801F-18 Input Voltage: 90~264 Output Voltage: 18 Output Current: 16.67A Output Power (W): 300 No. Outputs: S Case: Enclosed with Top Fan Get a Quote
PSPRL0801C-24 Input Voltage: 90~264 Output Voltage: 24 Output Current: 12.5A Output Power (W): 300 No. Outputs: S Case: Enclosed Case Get a Quote
PSPRL0801E-24 Input Voltage: 90~264 Output Voltage: 24 Output Current: 12.5A Output Power (W): 300 No. Outputs: S Case: Enclosed with Fan Get a Quote
PSPRL0801U-24 Input Voltage: 90~264 Output Voltage: 24 Output Current: 12.5A Output Power (W): 300 No. Outputs: S Case: U-Chassis Get a Quote
PSPRL0801F-24 Input Voltage: 90~264 Output Voltage: 24 Output Current: 12.5A Output Power (W): 300 No. Outputs: S Case: Enclosed with Top Fan Get a Quote
PSPRL0801F-30 Input Voltage: 90~264 Output Voltage: 30 Output Current: 10A Output Power (W): 300 No. Outputs: S Case: Enclosed with Top Fan Get a Quote
PSPRL0801E-30 Input Voltage: 90~264 Output Voltage: 30 Output Current: 10A Output Power (W): 300 No. Outputs: S Case: Enclosed with Fan Get a Quote
PSPRL0801U-30 Input Voltage: 90~264 Output Voltage: 30 Output Current: 10A Output Power (W): 300 No. Outputs: S Case: U-Chassis Get a Quote
PSPRL0801C-30 Input Voltage: 90~264 Output Voltage: 30 Output Current: 10A Output Power (W): 300 No. Outputs: S Case: Enclosed Case Get a Quote
PSPRL0801E-36 Input Voltage: 90~264 Output Voltage: 36 Output Current: 8.33A Output Power (W): 300 No. Outputs: S Case: Enclosed with Fan Get a Quote
PSPRL0801F-36 Input Voltage: 90~264 Output Voltage: 36 Output Current: 8.333A Output Power (W): 300 No. Outputs: S Case: Enclosed with Top Fan Get a Quote
PSPRL0801U-36 Input Voltage: 90~264 Output Voltage: 36 Output Current: 8.33A Output Power (W): 300 No. Outputs: S Case: U-Chassis Get a Quote
PSPRL0801C-36 Input Voltage: 90~264 Output Voltage: 36 Output Current: 8.33A Output Power (W): 300 No. Outputs: S Case: Enclosed Case Get a Quote
PSPRL0801F-48 Input Voltage: 90~264 Output Voltage: 48 Output Current: 6.25A Output Power (W): 300 No. Outputs: S Case: Enclosed with Top Fan Get a Quote
PSPRL0801E-48 Input Voltage: 90~264 Output Voltage: 48 Output Current: 6.25A Output Power (W): 300 No. Outputs: S Case: Enclosed with Fan Get a Quote
PSPRL0801C-48 Input Voltage: 90~264 Output Voltage: 48 Output Current: 6.25A Output Power (W): 300 No. Outputs: S Case: Enclosed Case Get a Quote
PSPRL0801U-48 Input Voltage: 90~264 Output Voltage: 48 Output Current: 6.25A Output Power (W): 300 No. Outputs: S Case: U-Chassis Get a Quote
PSPRL0801E-54 Input Voltage: 90~264 Output Voltage: 54 Output Current: 5.56A Output Power (W): 300 No. Outputs: S Case: Enclosed with Fan Get a Quote
PSPRL0801F-54 Input Voltage: 90~264 Output Voltage: 54 Output Current: 5.56A Output Power (W): 300 No. Outputs: S Case: Enclosed with Top Fan Get a Quote
PSPRL0801C-54 Input Voltage: 90~264 Output Voltage: 54 Output Current: 5.56A Output Power (W): 300 No. Outputs: S Case: Enclosed Case Get a Quote
PSPRL0801U-54 Input Voltage: 90~264 Output Voltage: 54 Output Current: 5.56A Output Power (W): 300 No. Outputs: S Case: U-Chassis Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 90~264
PFC: 0.95
Input Frequency: 47-63Hz
Output
Output Voltage: 5, 9, 12, 15, 18, 24, 30, 36, 48, 54
Output Current: 5.56A, 6.25A, 8.33A, 10A, 12.5A, 16.67A, 20A, 25A, 27.27A, 42A
Output Power (Watts): 210, 245.4, 300
Output Trim/Adjustability: ±5%
Short Circuit Protection: Automatic Recovery
Over Voltage Protection: 1.3
Thermal Protection: 105-115°C
General
Efficiency: 75-89%
Isolation: 3000VAC
Environmental
Operating Temperature: 0 to 70°C
Storage Temperature: -20 to 85°C
Physical
Weight: U Type: 1.10 lbs (500g)
C Type: 1.21 lbs (550g)
E Type: 1.43 lbs (650g)
F Type: 1.32 lbs (600g)

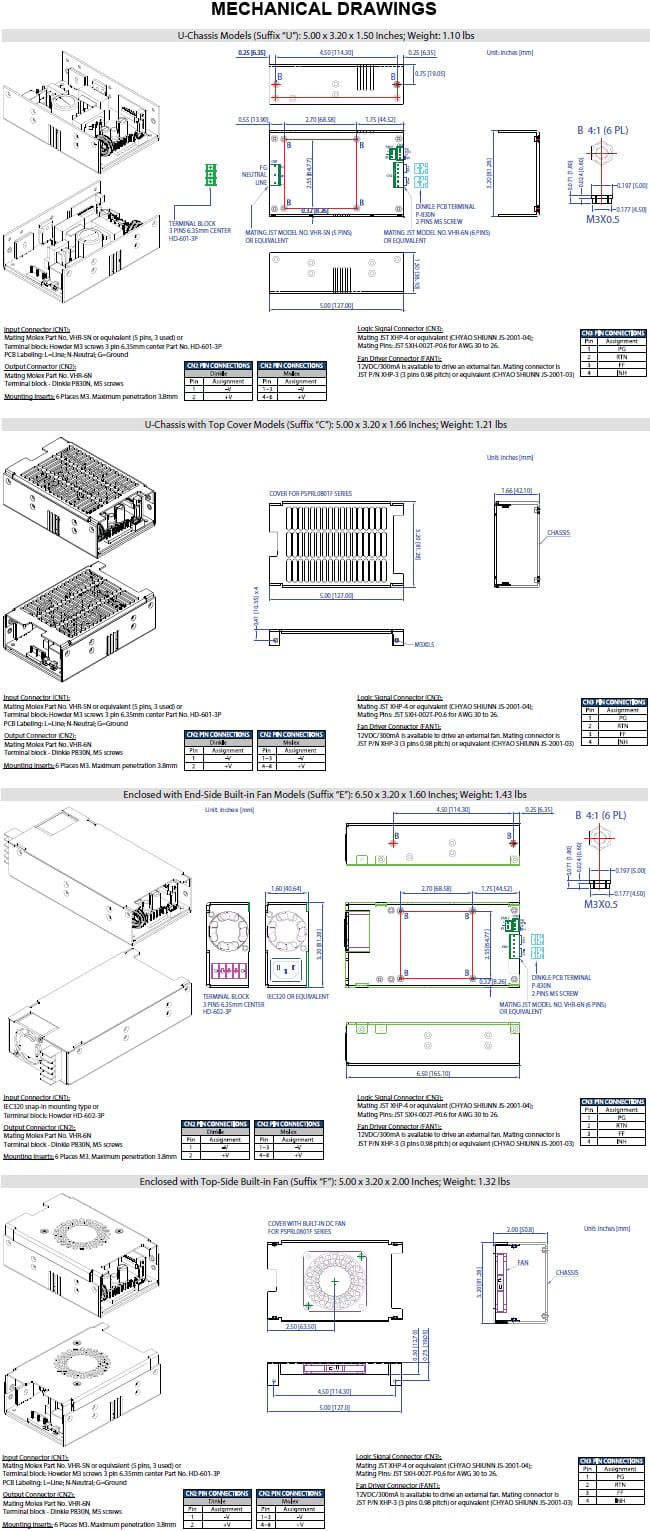

Dimensions: U Type: 5.00" x 3.20" x 1.50" (127.00 x 81.28 x 38.10 mm)
C Type: 5.00" x 3.20" x 1.66" (127.00 x 81.28 x 42.10 mm)
E Type: 6.50" x 3.20" x 1.60" (165.10 x 81.28 x 40.64 mm)
F Type: 5.00" x 3.20" x 2.00" (127.00 x 81.28 x 50.80 mm)
Notes & safety
Notes: 1. The PSPRL0801 series is designated as PSPRL0801x-y where "x" can be "U" for U-chassis type, "C" for U-chassis with top cover, "E" for enclosed type with end side built-in fan, or "F" for enclosed type with top side built-in fan; y can be 05, 09, 12, 15, 18, 24, 30, 36, 48, or 54 for output voltage.
2. Output voltages are available for 2~60VDC. The preset voltage for each model is listed on the "Models" tab. See the data sheet for more output voltage options. The customer must specify what they would like the output voltage set at; otherwise, the preset voltage will be selected.

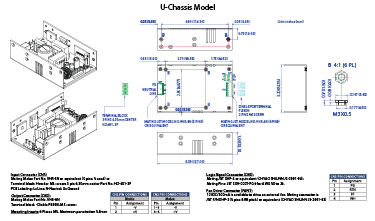

3. U Type Models (U-Chassis): 300W max. with 25CFM max. forced airflow or 150W convection cooled output.

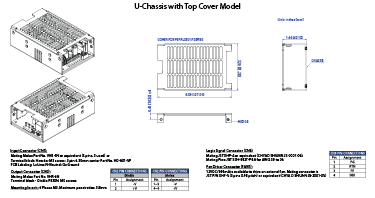

C Type Models (U-Chassis with top cover): 300W max. with 25CFM max. forced airflow or 150W convection cooled output.

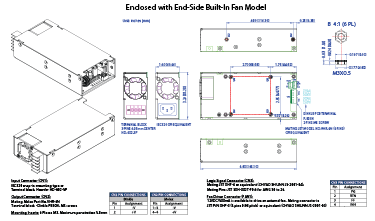

E Type Models (Enclosed with rear side built-in fan): 300W max.

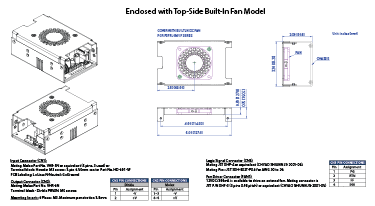

F Type Models (Enclosed with top built-in fan): 300W max
4. Ripple and noise is measured between 10KHZ and 20MHz bandwidth at output with 0.1µF ceramic and 22µF electrolytic capacitors in parallel.
5. Provides peak power to 600W within 500µs for all models; for longer duty duration must contact manufacturer.
6. 1% minimum load is required to maintain the ripple and regulation specifications.
7. Output is fully isolated.
8. For dual output models see the PSPRL0801D series.

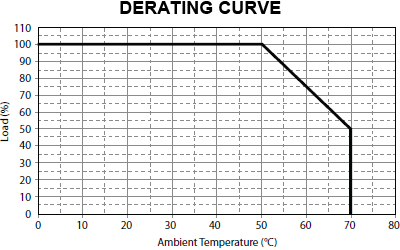

9. The output power and output current listed on the "Models" tab is with 25CFM forced airflow. See data sheet for convection cooling specifications.
Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL60950-1, EN60950-1, IEC60950-1
RoHS Compliance: Yes
