PSPRL0602N
The PSPRL0602N series of AC/DC switching power supplies offers 220 Watts of output power with convection cooling and 400 Watts with forced airflow. This series consists of single output models ranging from 12VDC to 60VDC. These models have a 90~264VAC input voltage range, active PFC corrected to EN61000-3-2 Class D, and built-in remote on/off, power good, and fan fail alarm functions. These supplies are also protected against short circuit, over voltage, over power, and over temperature conditions. Models are available in U-chassis (Type U), U-chassis with vented top cover (Type C), enclosed with end-side built-in fan (Type E), and enclosed with top-side built-in fan (Type F) designs. This series is RoHS compliant and has UL1950, CSA C22.2 No. 950-95, EN60950, and CB safety approvals.
• RoHS Compliant
• High Quality & Reliable Component Usage
• Variable Fan Speed & Low Acoustical Noise
• 90~264VAC Full Range Input
• 1U Height Power Density: 11.11 Watts /cu in
• Single Outputs Ranging from 12VDC to 60VDC
• Active Power Factor Corrected to EN61000-3-2 Class D
• Built-in Remote On/Off, Power Good, and Fan Fail Alarm Functions
• Peak Power 700W within 500µs Duty Duration
• 220 Watts with Convection Cooling and 400 Watts with Forced Airflow
• Short Circuit, Over Power, Over Voltage, and Over Temperature Protection
• MTBF: 100,000 Hours (MIL-HDBK-217F)
• UL1950, CSA C22.2 No. 950-95, EN60950, and CB Safety Approvals
• Four Mechanical Options Available
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSPRL0602NU-12 | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 18.33A | Output Power (W): 220 | No. Outputs: S | Case: U-Chassis | Size: 6" x 4" x 1.5" | Get a Quote |
| PSPRL0602NC-12 | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 18.33A | Output Power (W): 220 | No. Outputs: S | Case: Enclosed Case | Size: 6" x 4" x 1.57" | Get a Quote |
| PSPRL0602NU-15 | Input Voltage: 90~264 | Output Voltage: 15 | Output Current: 14.67A | Output Power (W): 220 | No. Outputs: S | Case: U-Chassis | Size: 6" x 4" x 1.5" | Get a Quote |
| PSPRL0602NC-15 | Input Voltage: 90~264 | Output Voltage: 15 | Output Current: 14.67A | Output Power (W): 220 | No. Outputs: S | Case: Enclosed Case | Size: 6" x 4" x 1.57" | Get a Quote |
| PSPRL0602NU-18 | Input Voltage: 90~264 | Output Voltage: 18 | Output Current: 12.22A | Output Power (W): 220 | No. Outputs: S | Case: U-Chassis | Size: 6" x 4" x 1.5" | Get a Quote |
| PSPRL0602NC-18 | Input Voltage: 90~264 | Output Voltage: 18 | Output Current: 12.22A | Output Power (W): 220 | No. Outputs: S | Case: Enclosed Case | Size: 6" x 4" x 1.57" | Get a Quote |
| PSPRL0602NU-24 | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 9.17A | Output Power (W): 220 | No. Outputs: S | Case: U-Chassis | Size: 6" x 4" x 1.5" | Get a Quote |
| PSPRL0602NC-24 | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 9.17A | Output Power (W): 220 | No. Outputs: S | Case: Enclosed Case | Size: 6" x 4" x 1.57" | Get a Quote |
| PSPRL0602NE-28 | Input Voltage: 90~264 | Output Voltage: 28 | Output Current: 14.29A | Output Power (W): 220 | No. Outputs: S | Case: Enclosed with Fan | Size: 7.01" x 4" x 1.6" | Get a Quote |
| PSPRL0602NF-28 | Input Voltage: 90~264 | Output Voltage: 28 | Output Current: 14.29A | Output Power (W): 220 | No. Outputs: S | Case: Enclosed with Top Fan | Size: 6" x 4" x 2.15" | Get a Quote |
| PSPRL0602NC-36 | Input Voltage: 90~264 | Output Voltage: 36 | Output Current: 6.11A | Output Power (W): 220 | No. Outputs: S | Case: Enclosed Case | Size: 6" x 4" x 1.57" | Get a Quote |
| PSPRL0602NU-36 | Input Voltage: 90~264 | Output Voltage: 36 | Output Current: 6.11A | Output Power (W): 220 | No. Outputs: S | Case: U-Chassis | Size: 6" x 4" x 1.5" | Get a Quote |
| PSPRL0602NC-48 | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 4.58A | Output Power (W): 220 | No. Outputs: S | Case: Enclosed Case | Size: 6" x 4" x 1.57" | Get a Quote |
| PSPRL0602NU-48 | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 4.58A | Output Power (W): 220 | No. Outputs: S | Case: U-Chassis | Size: 6" x 4" x 1.5" | Get a Quote |
| PSPRL0602NC-54 | Input Voltage: 90~264 | Output Voltage: 54 | Output Current: 4.07A | Output Power (W): 220 | No. Outputs: S | Case: Enclosed Case | Size: 6" x 4" x 1.57" | Get a Quote |
| PSPRL0602NU-54 | Input Voltage: 90~264 | Output Voltage: 54 | Output Current: 4.07A | Output Power (W): 220 | No. Outputs: S | Case: U-Chassis | Size: 6" x 4" x 1.5" | Get a Quote |
| PSPRL0602NF-12 | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 33.33A | Output Power (W): 400 | No. Outputs: S | Case: Enclosed with Top Fan | Size: 6" x 4" x 2.15" | Get a Quote |
| PSPRL0602NE-12 | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 33.33A | Output Power (W): 400 | No. Outputs: S | Case: Enclosed with Fan | Size: 7.01" x 4" x 1.6" | Get a Quote |
| PSPRL0602NE-15 | Input Voltage: 90~264 | Output Voltage: 15 | Output Current: 26.67A | Output Power (W): 400 | No. Outputs: S | Case: Enclosed with Fan | Size: 7.01" x 4" x 1.6" | Get a Quote |
| PSPRL0602NF-15 | Input Voltage: 90~264 | Output Voltage: 15 | Output Current: 26.67A | Output Power (W): 400 | No. Outputs: S | Case: Enclosed with Top Fan | Size: 6" x 4" x 2.15" | Get a Quote |
| PSPRL0602NE-18 | Input Voltage: 90~264 | Output Voltage: 18 | Output Current: 22.22A | Output Power (W): 400 | No. Outputs: S | Case: Enclosed with Fan | Size: 7.01" x 4" x 1.6" | Get a Quote |
| PSPRL0602NF-18 | Input Voltage: 90~264 | Output Voltage: 18 | Output Current: 22.22A | Output Power (W): 400 | No. Outputs: S | Case: Enclosed with Top Fan | Size: 6" x 4" x 2.15" | Get a Quote |
| PSPRL0602NF-24 | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 16.67A | Output Power (W): 400 | No. Outputs: S | Case: Enclosed with Top Fan | Size: 6" x 4" x 2.15" | Get a Quote |
| PSPRL0602NE-24 | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 16.67A | Output Power (W): 400 | No. Outputs: S | Case: Enclosed with Fan | Size: 7.01" x 4" x 1.6" | Get a Quote |
| PSPRL0602NU-28 | Input Voltage: 90~264 | Output Voltage: 28 | Output Current: 7.86A | Output Power (W): 400 | No. Outputs: S | Case: U-Chassis | Size: 6" x 4" x 1.5" | Get a Quote |
| PSPRL0602NC-28 | Input Voltage: 90~264 | Output Voltage: 28 | Output Current: 7.86A | Output Power (W): 400 | No. Outputs: S | Case: Enclosed Case | Size: 6" x 4" x 1.57" | Get a Quote |
| PSPRL0602NF-36 | Input Voltage: 90~264 | Output Voltage: 36 | Output Current: 11.11A | Output Power (W): 400 | No. Outputs: S | Case: Enclosed with Top Fan | Size: 6" x 4" x 2.15" | Get a Quote |
| PSPRL0602NE-36 | Input Voltage: 90~264 | Output Voltage: 36 | Output Current: 11.11A | Output Power (W): 400 | No. Outputs: S | Case: Enclosed with Fan | Size: 7.01" x 4" x 1.6" | Get a Quote |
| PSPRL0602NF-48 | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 8.33A | Output Power (W): 400 | No. Outputs: S | Case: Enclosed with Top Fan | Size: 6" x 4" x 2.15" | Get a Quote |
| PSPRL0602NE-48 | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 8.33A | Output Power (W): 400 | No. Outputs: S | Case: Enclosed with Fan | Size: 7.01" x 4" x 1.6" | Get a Quote |
| PSPRL0602NE-54 | Input Voltage: 90~264 | Output Voltage: 54 | Output Current: 7.41A | Output Power (W): 400 | No. Outputs: S | Case: Enclosed with Fan | Size: 7.01" x 4" x 1.6" | Get a Quote |
| PSPRL0602NF-54 | Input Voltage: 90~264 | Output Voltage: 54 | Output Current: 7.41A | Output Power (W): 400 | No. Outputs: S | Case: Enclosed with Top Fan | Size: 6" x 4" x 2.15" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Remote ON/OFF: | Active Low |
| PFC: | 0.9 |
| Input Frequency: | 47-63Hz |
| Output | |
| Output Voltage: | 12, 15, 18, 24, 28, 36, 48, 54 |
| Output Current: | 4.07A, 7.41A, 4.58A, 8.33A, 6.11A, 11.11A, 7.86A, 14.29A, 9.17A, 16.67A, 12.22A, 22.22A, 14.67A, 26.67A, 18.33A, 33.33A |
| Output Power (Watts): | 220, 400 |
| Output Trim/Adjustability: | ±5% |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | 1.3 |

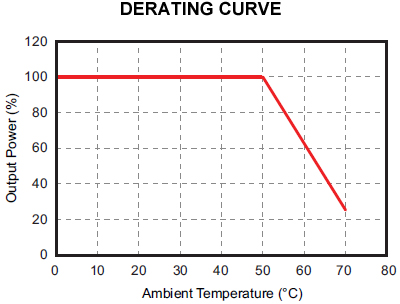

| Thermal Protection: | 105-115°C |
| General | |
| Efficiency: | 75% |
| Isolation: | Primary to Secondary: 3000VAC for 3 sec. Input Line to Chassis: 1500VAC for 3 sec. Primary to Core: 1500VAC for 3 sec. |
| Environmental | |
| Operating Temperature: | 0 to 70°C |
| Storage Temperature: | -20 to 85°C |
| Physical | |
| Weight: | U Type: 1.32 lbs (600g) C Type: 1.43 lbs (650g) E Type: 1.65 lbs (750g) F Type: 1.76 lbs (800g) |

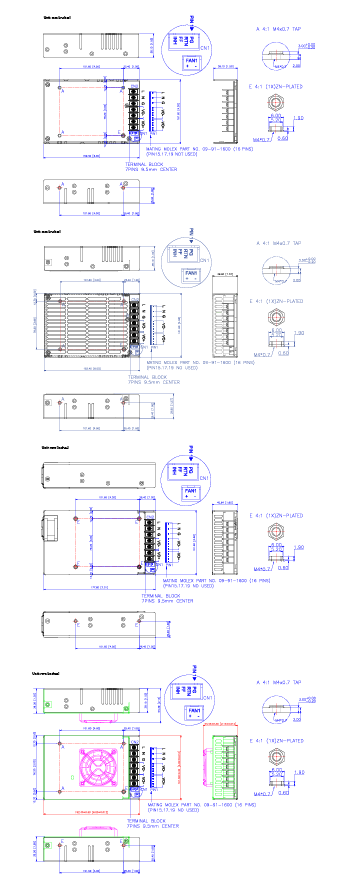

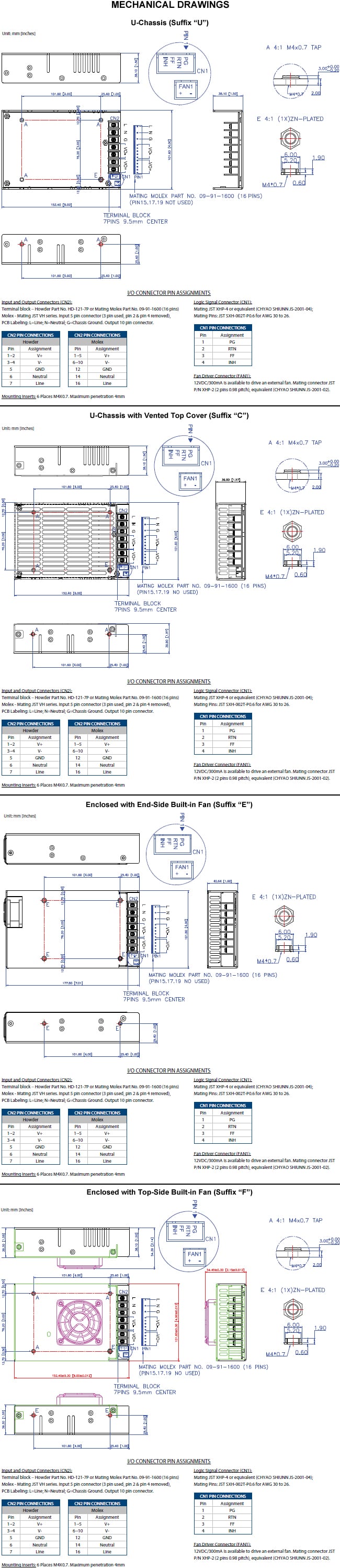

| Dimensions: | U Type: 6.00" x 4.00" x 1.50" (152.40 x 101.60 x 38.10 mm) C Type: 6.00" x 4.00" x 1.57" (152.40 x 101.60 x 39.90 mm) E Type: 7.01" x 4.00" x 1.60" (177.80 x 101.60 x 40.64 mm) F Type: 6.00" x 4.00" x 2.15" (152.40 x 101.60 x 54.45 mm) |
| Notes & safety | |
| Notes: | 1. The “x” in the model number can be “U” for U-chassis type, “C” for U-chassis with vented top cover type, “E” for enclosed with end-side built-in fan, or “F” for enclosed with top-side built-in fan. 2. All output ranges are covered by agency certifications and the preset voltage will be set as standard models if nothing different is requested. If desired preset output does not appear, please contact factory. 3. PSPRL0602NU-XX Models (U-chassis): 220W max. with convection cooling and 400W max. with 26.84CFM minimum forced airflow. PSPRL0602NC-XX Models (U-chassis with vented top cover): 220W max. with convection cooling. PSPRL0602NE-XX Models (Enclosed with end-side built-in fan): 400W max. with built-in fan airflow. PSPRL0602NF-XX Models (Enclosed with top-side built-in fan): 400W max. with built-in fan airflow. 4. Provides peak power to 700W within 500µs for all models; for longer duty duration please contact manufacturer. 5. Ripple and noise are measured from 10kHz to 20MHz bandwidth and with a 0.1µF ceramic capacitor and a 22µF electrolytic capacitor in parallel across the output. 6. 1% minimum load is required to maintain the ripple and regulation specifications. 7. Output is fully isolated. 8. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL1950, CSA C22.2 No. 950-95, EN60950, CB |
| RoHS Compliance: | Yes |
