PSPFE480

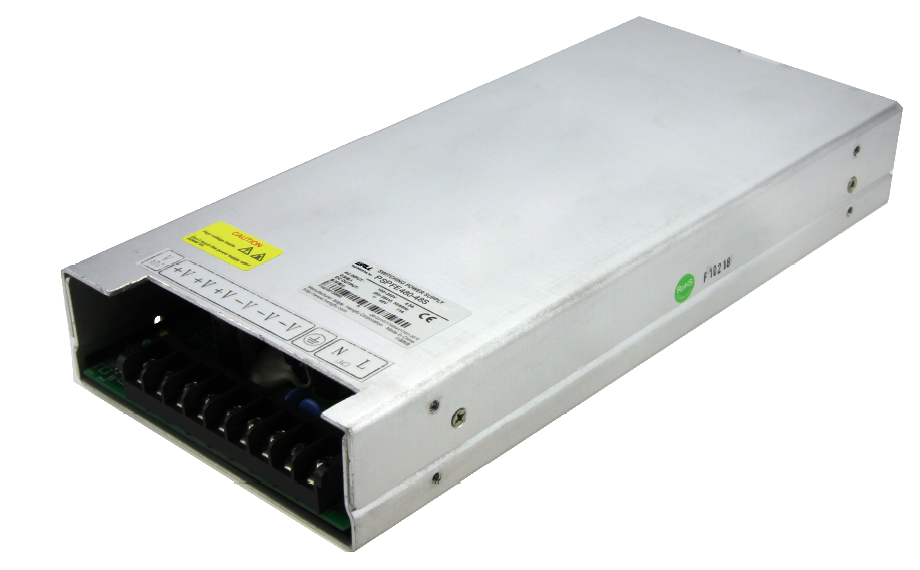

The PSPFE480 series offers up to 528 watts of output power in a compact and enclosed 10.94” x 5” x 1.69” package. This series features single output models with a full universal input range of 85~264VAC and built-in fan speed control. Features of this series include PFC, optional remote on/off and remote sense, as well as over load, over voltage, and short circuit protection. This series has GB4943, UL60950, and EN60950 safety approvals. Please contact factory for order details.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSPFE480-12S | Input Voltage: 85~264 | Output Voltage: 12 | Output Current: 43A | Output Power (W): 516 | No. Outputs: S | Case: Enclosed Case | Size: 10.94" x 5" x 1.69" | Get a Quote |
| PSPFE480-15S | Input Voltage: 85~264 | Output Voltage: 15 | Output Current: 35A | Output Power (W): 525 | No. Outputs: S | Case: Enclosed Case | Size: 10.94" x 5" x 1.69" | Get a Quote |
| PSPFE480-24S | Input Voltage: 85~264 | Output Voltage: 24 | Output Current: 22A | Output Power (W): 528 | No. Outputs: S | Case: Enclosed Case | Size: 10.94" x 5" x 1.69" | Get a Quote |
| PSPFE480-48S | Input Voltage: 85~264 | Output Voltage: 48 | Output Current: 11A | Output Power (W): 528 | No. Outputs: S | Case: Enclosed Case | Size: 10.94" x 5" x 1.69" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 85~264 |
| Remote ON/OFF: | Optional |
| Input Frequency: | 47 to 63Hz |
| Output | |
| Output Voltage: | 12, 15, 24, 48 |
| Output Current: | 11A, 22A, 35A, 43A |
| Output Power (Watts): | 516, 525, 528 |
| Short Circuit Protection: | Current Limiting, Automatic Recovery |
| Over Voltage Protection: | 115-150% |
| General | |
| Efficiency: | Up to 89% |
| Environmental | |
| Operating Temperature: | -20 to +70ºC |
| Storage Temperature: | -20 to +85ºC |
| Physical | |
| Weight: | 3.75lbs (1.62kg) |

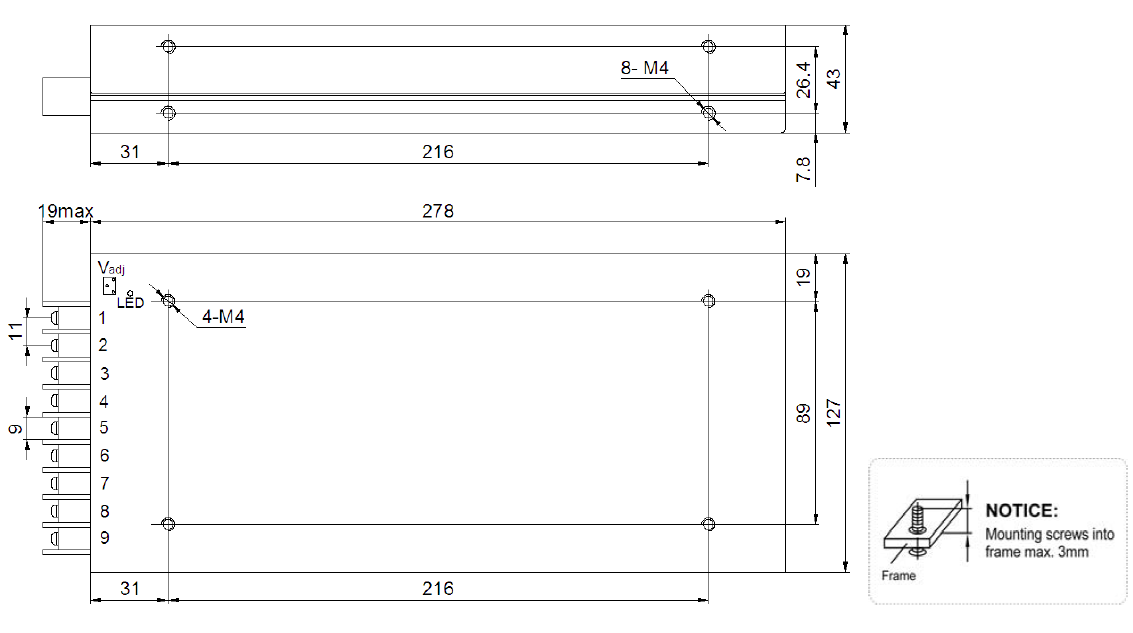

| Dimensions: | 10.94in x 5in x 1.69in (278mm x 127mm x 43mm) |
| Notes & safety | |
| Notes: | 1. Ripple & Noise are measured at 20MHz bandwidth by using a 12” twisted pair-wire terminated with a 0.1uF & 47uF parallel capacitor. 2. This power supply is regarded as a component that will be installed into final equipment. The final equipment must be re-confirmed that it still meets EMC directives. 3. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | GB4943, UL60950, EN60950 |
