PSPDF-150
The PSPDF-150 series offers 150 watts in a single output universal input AC/DC switching power supply. All models are over voltage, over load, and short circuit protected. Output voltages range from 5VDC to 48VDC. This series also has built-in active PFC function and offers the designer a low cost and highly reliable solution.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSPDF-150-36 | Input Voltage: 85~264 | Output Voltage: 36 | Output Current: 4.1 A | Output Power (W): 147.6 | No. Outputs: S | Case: Enclosed Case | Size: 7.64" x 3.9" x 1.97" | Get a Quote |
| PSPDF-150-12 | Input Voltage: 85~264 | Output Voltage: 12 | Output Current: 12.5 A | Output Power (W): 150 | No. Outputs: S | Case: Enclosed Case | Size: 7.64" x 3.9" x 1.97" | Get a Quote |
| PSPDF-150-15 | Input Voltage: 85~264 | Output Voltage: 15 | Output Current: 10A | Output Power (W): 150 | No. Outputs: S | Case: Enclosed Case | Size: 7.64" x 3.9" x 1.97" | Get a Quote |
| PSPDF-150-5 | Input Voltage: 85~264 | Output Voltage: 5 | Output Current: 30 A | Output Power (W): 150 | No. Outputs: S | Case: Enclosed Case | Size: 7.64" x 3.9" x 1.97" | Get a Quote |
| PSPDF-150-24 | Input Voltage: 85~264 | Output Voltage: 24 | Output Current: 6.3 A | Output Power (W): 151.2 | No. Outputs: S | Case: Enclosed Case | Size: 7.64" x 3.9" x 1.97" | Get a Quote |
| PSPDF-150-48 | Input Voltage: 85~264 | Output Voltage: 48 | Output Current: 3.2 A | Output Power (W): 153.6 | No. Outputs: S | Case: Enclosed Case | Size: 7.64" x 3.9" x 1.97" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 85~264 |
| PFC: | Yes |
| Input Frequency: | 47-63 Hz |
| Output | |
| Output Voltage: | 5, 12, 15, 24, 36, 48 |
| Voltage Accuracy: | 5V output model: ±2.0% 12 ~ 48V output models: ±1.0% |
| Output Current: | 3.2A, 4.1A, 6.3A, 10A, 12.5A, 30A |
| Output Power (Watts): | 147.6, 150, 151.2, 153.6 |
| Output Trim/Adjustability: | See Data Sheet |
| Short Circuit Protection: | Long Term Mode, Automatic Recovery |
| Over Voltage Protection: | see datasheet |
| General | |
| Efficiency: | Up to 87% |
| Isolation: | 3000VAC |
| Environmental | |

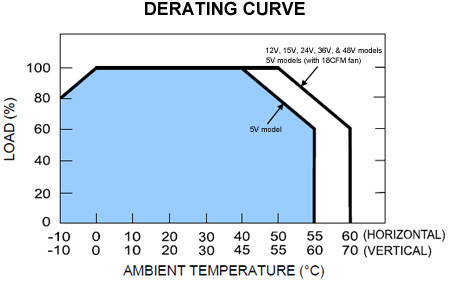

| Operating Temperature: | -10 to 60°C |
| Storage Temperature: | -20 to 85°C |
| Physical | |
| Weight: | 1.7 lb. |

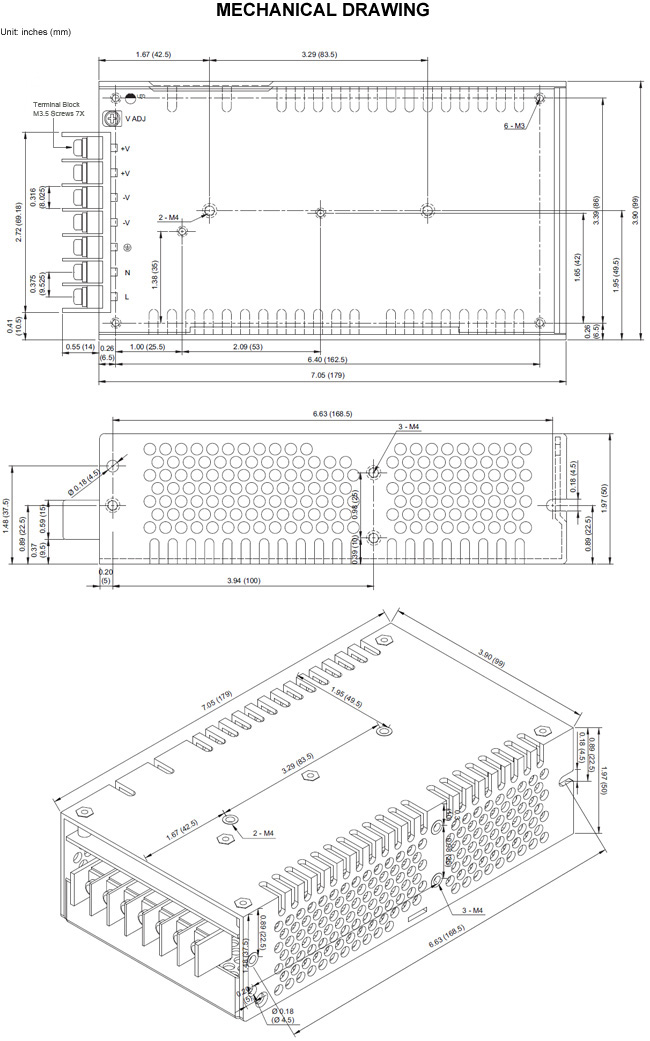

| Dimensions: | 7.64" x 3.9" x 1.97" (194 x 99 x 50 mm) |
| Notes & safety | |
| Notes: | 1. Ripple & noise is measured at 20MHz bandwidth by using a 12" twisted pair-wire terminated with 0.1μF and 47μF capacitors in parallel. 2. The SPS is considered a component which will be installed into final equipment. The final equipment must be re-confirmed that it still meets EMC directives. 3. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL60950-1, EN60950-1: 2006 |
| RoHS Compliance: | Yes |
