PSMSC
The PSMSC series of AC DC medical power supplies provides 40 watts of output power in a 3.5” x 2.5” x 1.06” encapsulated PCB mountable package. This series consists of single, dual, and triple output models with a universal input range of 90-264VAC (100-375VDC). Some features include low ripple and noise, -25°C to +70°C operating temperature range, and short circuit, over current, over voltage, and over temperature protection. The PSMSC series also has two types of screw terminal mechanical options and an extended operating temperature option available. All models are RoHS compliant and have UL/cUL, CE, and CB safety approvals.
• RoHS Compliant
• Isolation Class II
• 40 Watts Output Power
• Low Ripple and Noise
• Single, Dual, and Triple Outputs
• Fully Encapsulated Plastic Case
• UL/cUL, CE, and CB Approval
• PCB Mountable Switching Power Supply
• -25°C to +70°C Operating Temperature Range
• Optional -40°C~+71°C Operating Temperature Range
• Universal Input Voltage Range: 90-264VAC (100-375VDC)
• Short Circuit, Over Current, Over Voltage, and Over Temperature Protection

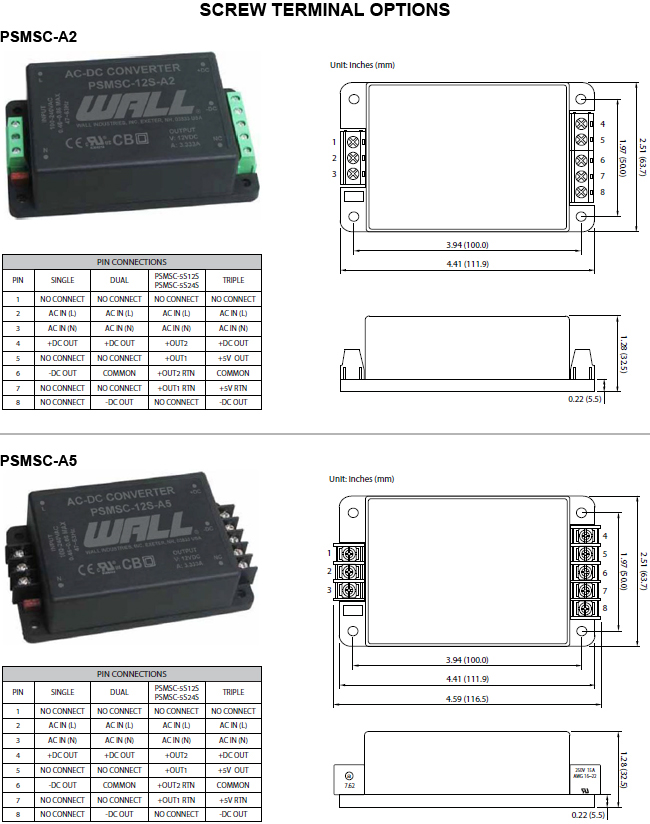

• Screw Terminal Mechanical Options Available
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSMSC-3.3S | Input Voltage: 90~264 | Output Voltage: 3.3 | Output Current: 8A | Output Power (W): 26.4 | No. Outputs: S | Case: PCB Mount | Size: 3.5" x 2.5" x 1.06" | Get a Quote |
| PSMSC-12D | Input Voltage: 90~264 | Output Voltage: 12, -12 | Output Current: 1.666A, 1.666A | Output Power (W): 40 | No. Outputs: D | Case: PCB Mount | Size: 3.5" x 2.5" x 1.06" | Get a Quote |
| PSMSC-12S | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 3.333 A | Output Power (W): 40 | No. Outputs: S | Case: PCB Mount | Size: 3.5" x 2.5" x 1.06" | Get a Quote |
| PSMSC-15D | Input Voltage: 90~264 | Output Voltage: 15, -15 | Output Current: 1.333A, 1.333A | Output Power (W): 40 | No. Outputs: D | Case: PCB Mount | Size: 3.5" x 2.5" x 1.06" | Get a Quote |
| PSMSC-15S | Input Voltage: 90~264 | Output Voltage: 15 | Output Current: 2.666 A | Output Power (W): 40 | No. Outputs: S | Case: PCB Mount | Size: 3.5" x 2.5" x 1.06" | Get a Quote |
| PSMSC-24S | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 1.667 A | Output Power (W): 40 | No. Outputs: S | Case: PCB Mount | Size: 3.5" x 2.5" x 1.06" | Get a Quote |
| PSMSC-5D | Input Voltage: 90~264 | Output Voltage: 5, -5 | Output Current: 4A, 4A | Output Power (W): 40 | No. Outputs: D | Case: PCB Mount | Size: 3.5" x 2.5" x 1.06" | Get a Quote |
| PSMSC-5S | Input Voltage: 90~264 | Output Voltage: 5 | Output Current: 8A | Output Power (W): 40 | No. Outputs: S | Case: PCB Mount | Size: 3.5" x 2.5" x 1.06" | Get a Quote |
| PSMSC-5S12D | Input Voltage: 90~264 | Output Voltage: 5, 12, -12 | Output Current: 5A, ±0.600A | Output Power (W): 40 | No. Outputs: T | Case: PCB Mount | Size: 3.5" x 2.5" x 1.06" | Get a Quote |
| PSMSC-5S12S | Input Voltage: 90~264 | Output Voltage: 5, 12 | Output Current: 5A, 1.25A | Output Power (W): 40 | No. Outputs: D | Case: PCB Mount | Size: 3.5" x 2.5" x 1.06" | Get a Quote |
| PSMSC-5S15D | Input Voltage: 90~264 | Output Voltage: 15, 15, -15 | Output Current: 5A, ±0.5A | Output Power (W): 40 | No. Outputs: T | Case: PCB Mount | Size: 3.5" x 2.5" x 1.06" | Get a Quote |
| PSMSC-5S24S | Input Voltage: 90~264 | Output Voltage: 5, 24 | Output Current: 5A, 0.625A | Output Power (W): 40 | No. Outputs: D | Case: PCB Mount | Size: 3.5" x 2.5" x 1.06" | Get a Quote |
| PSMSC-9S | Input Voltage: 90~264 | Output Voltage: 9 | Output Current: 4.444 A | Output Power (W): 40 | No. Outputs: S | Case: PCB Mount | Size: 3.5" x 2.5" x 1.06" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47-63 Hz |
| Output | |
| Output Voltage: | 3.3, 5, -5, 9, 12, -12, 15, -15, 24 |
| Voltage Accuracy: | See Data Sheet |
| Output Current: | 8A, 5A, 1.25A, 0.625A, 4.444A, 3.333A, 2.666A, 1.667A, ±4A, ±0.6A, ±1.666A, ±1.333A, ±0.5A |
| Output Power (Watts): | 26.4, 40 |
| Short Circuit Protection: | hiccup mode, indefinite (auto-recovery) |
| Over Voltage Protection: | Zener Diode Clamp |
| Thermal Protection: | 100°C |
| General | |
| Efficiency: | Up to 83% |
| Isolation: | 4000VAC |
| Environmental | |

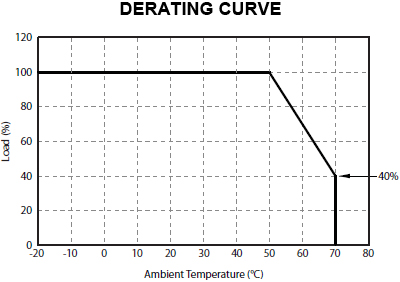

| Operating Temperature: | -25 to 70°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | 9.88 oz. |

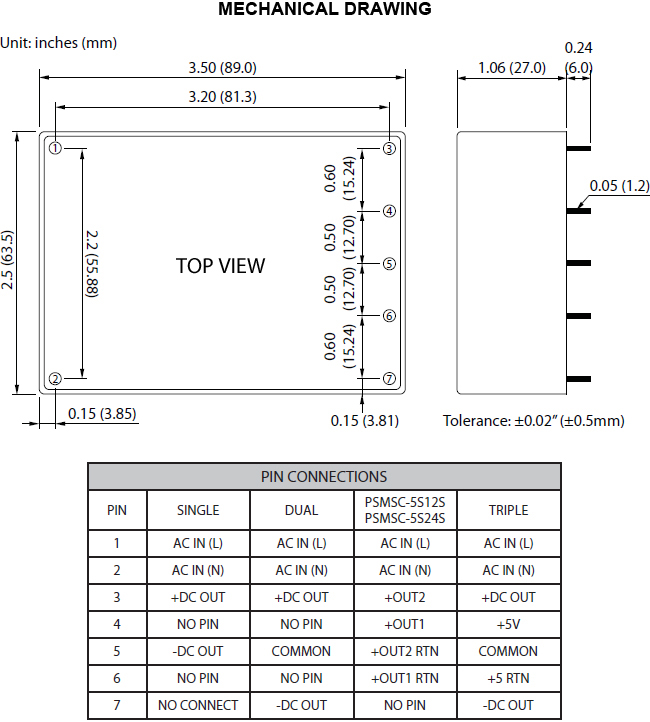

| Dimensions: | 3.5" x 2.5" x 1.06" (89 x 63.5 x 27 mm) |
| Case Material: | plastic resin with fiberglass |
| Notes & safety | |
| Notes: | 1. All models require a minimum loading on the output to maintain specified regulations. Operation under no-load conditions will not damage these devices; however, they may not meet all listed specifications. 2. For -40°C to +71°C extended operating temperature range please add the suffix –E1 to the model number (Ex: PSMSC-12S-E1). 3. Screw terminal mechanical options available (see page 4). Please call factory for ordering details. 4. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/cUL, CE, CB, ANSI/AAMI ES 60601-1: 2005, 1st Edition, CAN/CSA-C22.2 No. 60601-1:08, 2nd Edition, MOPP |
| RoHS Compliance: | Yes |
