PSMQF500

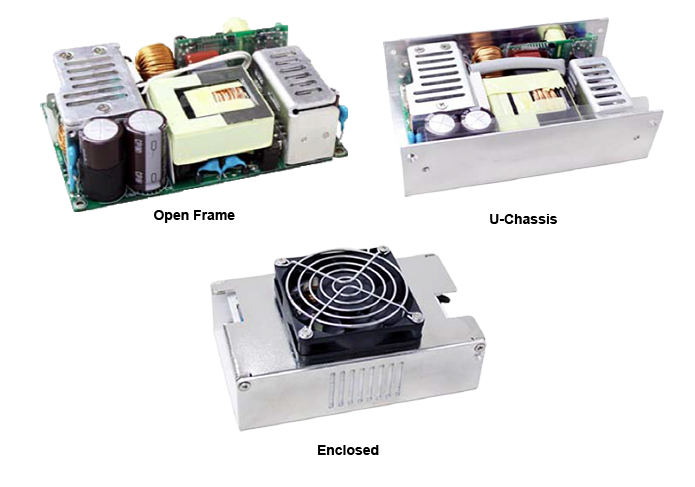

The PSMQF500 series of medical and ITE AC/DC switching power supplies offers 500 watts of output power in a compact open frame, u-chassis, or enclosed with top fan package. This series consists of single output models with a wide input voltage range of 90~264VAC (127~370VDC) and high efficiency. Features of this series include remote ON/OFF, PFC function, as well as over power, over voltage, over temperature, and short circuit protection. This series also has UL/IEC/EN 60601 3.1 edition and UL/IEC/EN 60950 AM2 safety approvals with approvals pending on the 15V models. Parallel operation is available for this series, please contact factory for details.

• Input Voltage Range of 90~264VAC (127~370VDC) • Open Frame, U-Chassis, or Enclosed Case with Top Fan Option • Remote ON/OFF Function • PFC Function • High Efficiency • Paralleling Operation Available (Contact Factory) • Open Frame & U-Chassis Feature Built-In 12V/0.3A Auxiliary Output • Over Power, Over Voltage, Over Temperature, and Short Circuit Protection • UL/IEC/EN 60601 3.1 Edition & UL/IEC/EN 60950 AM2 (Approvals pending for 15V Models)
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
PSMQF500-12SF Input Voltage: 90~264 Output Voltage: 12 Output Current: 41.5A Output Power (W): 500 No. Outputs: S Case: Enclosed with Top Fan Get a Quote
PSMQF500-24SF Input Voltage: 90~264 Output Voltage: 24 Output Current: 20.8A Output Power (W): 500 No. Outputs: S Case: Enclosed with Top Fan Get a Quote
PSMQF500-48SF Input Voltage: 90~264 Output Voltage: 48 Output Current: 10.41A Output Power (W): 500 No. Outputs: S Case: Enclosed with Top Fan Get a Quote
PSMQF500-15SF Input Voltage: 90~264 Output Voltage: 15 Output Current: 33.3A Output Power (W): 500 No. Outputs: S Case: Enclosed with Top Fan Get a Quote
PSMQF500-12SO Input Voltage: 90~264 Output Voltage: 12 Output Current: 41.5A Output Power (W): 500 No. Outputs: S Case: Open Frame Get a Quote
PSMQF500-15SO Input Voltage: 90~264 Output Voltage: 15 Output Current: 33.3A Output Power (W): 500 No. Outputs: S Case: Open Frame Get a Quote
PSMQF500-24SO Input Voltage: 90~264 Output Voltage: 24 Output Current: 20.8A Output Power (W): 500 No. Outputs: S Case: Open Frame Get a Quote
PSMQF500-48SO Input Voltage: 90~264 Output Voltage: 48 Output Current: 10.41A Output Power (W): 500 No. Outputs: S Case: Open Frame Get a Quote
PSMQF500-12SU Input Voltage: 90~264 Output Voltage: 12 Output Current: 41.5A Output Power (W): 500 No. Outputs: S Case: U-Chassis Get a Quote
PSMQF500-15SU Input Voltage: 90~264 Output Voltage: 15 Output Current: 33.3A Output Power (W): 500 No. Outputs: S Case: U-Chassis Get a Quote
PSMQF500-24SU Input Voltage: 90~264 Output Voltage: 24 Output Current: 20.8A Output Power (W): 500 No. Outputs: S Case: U-Chassis Get a Quote
PSMQF500-48SU Input Voltage: 90~264 Output Voltage: 48 Output Current: 10.41A Output Power (W): 500 No. Outputs: S Case: U-Chassis Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 90~264
PFC: 0.94
Input Frequency: 47 to 63Hz
Output
Output Voltage: 12, 15, 24, 48
Voltage Accuracy: ±2%
Output Current: 10.41A, 20.8A, 33.3A, 41.5A
Output Power (Watts): 500
Short Circuit Protection: Protection Level 1 (Nominal): Continuous, Automatic Recovery
Protection Level 2 (Instantaneous High Current): Latch
Over Voltage Protection: Automatic Recovery
Thermal Protection: Automatic Recovery
General
Efficiency: Up to 93%
Isolation: Input to Output: 4000VAC or 5656VDC
Input to PE: 2000VAC
Output to PE: 1500VDC
Environmental
Operating Temperature: -30 to +70ºC
Storage Temperature: -35 to +85ºC
Physical
Weight: Open Frame: 16.93oz (480g)
U-Chassis: 20.46oz (580g)
Enclosed with Top Fan: (24.34oz (690g)
Dimensions: Open Frame: 5.03in x 3in x 1.38in (127.8mm x 76.2mm x 35mm)
U-Chassis: 5.5in x 3.25in x 1.66in (139.7mm x 82.55mm x 42.1mm)
Enclosed with Top Fan: 5.5in x 3.25in x 2.48in (139.7mm x 82.55mm x 62.9mm)
Notes & safety
Notes: 1. This product is not designed for use in critical life support systems, equipment used in hazardous environments, nuclear control systems, or other such applications which necessitate specific safety and regulatory standards other than the ones listed in this datasheet.
2. Main Vout >3% Load, 12V (Aux)/0.3A., 12V (Aux) need 0.1A Minimum Load, Auxiliary voltage output ground 10.2~13.3V
3. It is strongly recommended to conduct this test with DC voltage. If customer wishes to test AC voltage, disconnect all Y-Capacitors within supply.
*Due to advances in technology, specifications subject to change without notice.

Safety Approvals: UL/IEC/EN 60601 3.1 Edition, UL/IEC/EN 60950 AM2
