PSMHBU32

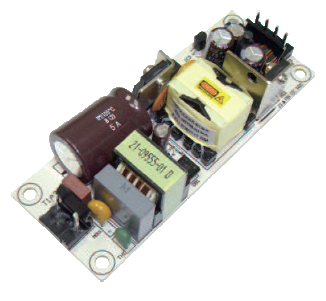

The PSMHBU32 series of AC/DC medical open frame power supplies offers up to 30 watts of output power in a 4.02” x 1.50” x 0.83” package. This series consists of single output models with a wide operating voltage range of 80~275VAC and high ESD immunity. Each model in this series is RoHS2 compliant, has over load and short circuit protection, and supports risk management process. This series has IEC60601-1 edition 3.1, ES60601-1:2005 (R2012), CSAC22.2 No. 60601-1:14, and EN60601-1: 2006/A1:2013 safety approvals Please contact factory for order details.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSMHBU32-102 | Input Voltage: 80~275 | Output Voltage: 5~6 | Output Current: 4A | Output Power (W): 20 | No. Outputs: S | Case: Open Frame | Size: 4.02" x 1.5" x 0.83" | Get a Quote |
| PSMHBU32-103 | Input Voltage: 80~275 | Output Voltage: 6~8 | Output Current: 3.83A | Output Power (W): 23 | No. Outputs: S | Case: Open Frame | Size: 4.02" x 1.5" x 0.83" | Get a Quote |
| PSMHBU32-104 | Input Voltage: 80~275 | Output Voltage: 8~11 | Output Current: 3.37A | Output Power (W): 27 | No. Outputs: S | Case: Open Frame | Size: 4.02" x 1.5" x 0.83" | Get a Quote |
| PSMHBU32-105 | Input Voltage: 80~275 | Output Voltage: 11~13 | Output Current: 2.72A | Output Power (W): 30 | No. Outputs: S | Case: Open Frame | Size: 4.02" x 1.5" x 0.83" | Get a Quote |
| PSMHBU32-106 | Input Voltage: 80~275 | Output Voltage: 13~16 | Output Current: 2.31A | Output Power (W): 30 | No. Outputs: S | Case: Open Frame | Size: 4.02" x 1.5" x 0.83" | Get a Quote |
| PSMHBU32-107 | Input Voltage: 80~275 | Output Voltage: 16~21 | Output Current: 1.88A | Output Power (W): 30 | No. Outputs: S | Case: Open Frame | Size: 4.02" x 1.5" x 0.83" | Get a Quote |
| PSMHBU32-108 | Input Voltage: 80~275 | Output Voltage: 21~27 | Output Current: 1.43A | Output Power (W): 30 | No. Outputs: S | Case: Open Frame | Size: 4.02" x 1.5" x 0.83" | Get a Quote |
| PSMHBU32-109 | Input Voltage: 80~275 | Output Voltage: 27-33 | Output Current: 1.12A | Output Power (W): 30 | No. Outputs: S | Case: Open Frame | Size: 4.02" x 1.5" x 0.83" | Get a Quote |
| PSMHBU32-110 | Input Voltage: 80~275 | Output Voltage: 33~40 | Output Current: 0.91A | Output Power (W): 30 | No. Outputs: S | Case: Open Frame | Size: 4.02" x 1.5" x 0.83" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 80~275 |
| Input Frequency: | 47 to 63Hz |
| Output | |
| Output Voltage: | 5~6, 6~8, 8~11, 11~13, 13~16, 16~21, 21~27, 27~33, 33~40 |
| Output Current: | 0.91A, 1.12A, 1.43A, 1.88A, 2.31A, 2.72A, 3.37A, 3.83A, 4A |
| Output Power (Watts): | 20, 23, 27, 30 |
| Short Circuit Protection: | Automatic Recovery |
| General | |
| Efficiency: | Up to 86% |
| Environmental | |
| Operating Temperature: | -10 to 70ºC |
| Storage Temperature: | -40 to 85ºC |
| Physical | |
| Weight: | 3oz (85g) |

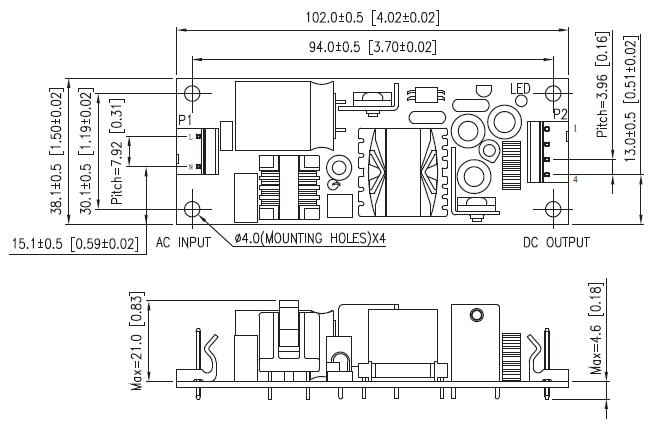

| Dimensions: | 4.02in x 1.50in x 0.83in (102mm x 38.1mm x 21mm) |
| Notes & safety | |
| Notes: | 1. Output can provide up to peak load when the power supply starts up. Continually staying in more than rated load is not allowed. 2. Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.47uF capacitor at rated load and nominal line. 3. Hold up time is measured from the end of the last charging pulse to the time which the main output drops down to low limit of main output at rated load and nominal line. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | IEC60601-1 Edition 3.1, ES60601-1:2005 (R2012), CSAC22.2 No.60601-1:14, EN60601-1:2006/A1:2013 |
| RoHS Compliance: | Yes |
