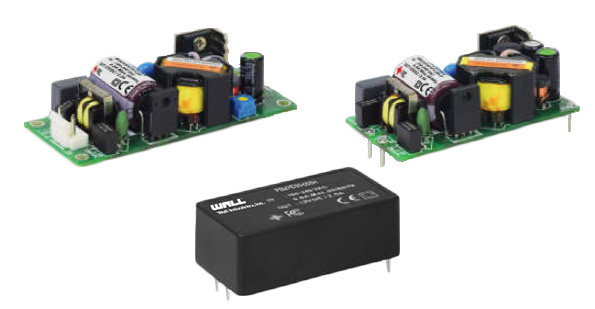

PSMHA30
The PSMHA30 series of medical AC/DC power supplies offers up to 30 watts of output power in a compact package. This series consists of single output models with adjustable output voltage and a universal input voltage range of 85~264VAC. Each model in this series features low standby power and low leakage current, high efficiency, and 4000VAC reinforced insulation. Several options are available for this series including protection type, conformal coating, and connector. This series so has over voltage, over load, and short circuit protection, is RoHS and REACH compliant, and is designed to meet EN/IEC/ANSI/AAMI ES60601-1 and IEC/EN/UL 62368-1 safety standards.
• Universal Input Voltage Range of 85~264VAC
• Adjustable Output Voltage
• RoHS Compliant
• REACH Compliant
• 5 Years Warranty
• Several Connector Options Available
• High Efficiency
• Over Voltage, Over Load, and Short Circuit Protection
• Low Standby Power
• Low Leakage Current
• 4000VAC Reinforced Insulation
• Protection Class I or II
• 2xMOPP
• Designed to Meet EN/IEC/ANSI/AAMI ES60601-1 & IEC/EN/UL 62368-1 Safety Standards
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSMHA30-33S | Input Voltage: 85~264 | Output Voltage: 3.3 | Output Current: 6A | Output Power (W): 20 | No. Outputs: S | Case: Open Frame | Size: 3.34" x 1.36" x 0.77" | Get a Quote |
| PSMHA30-33S-D | Input Voltage: 85~264 | Output Voltage: 3.3 | Output Current: 6A | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2.74" x 1.36" x 0.95" | Get a Quote |
| PSMHA30-5S | Input Voltage: 85~264 | Output Voltage: 5 | Output Current: 6A | Output Power (W): 30 | No. Outputs: S | Case: Open Frame | Size: 3.34" x 1.36" x 0.77" | Get a Quote |
| PSMHA30-75S | Input Voltage: 85~264 | Output Voltage: 7.5 | Output Current: 4A | Output Power (W): 30 | No. Outputs: S | Case: Open Frame | Size: 3.34" x 1.36" x 0.77" | Get a Quote |
| PSMHA30-9S | Input Voltage: 85~264 | Output Voltage: 9 | Output Current: 3.34A | Output Power (W): 30 | No. Outputs: S | Case: Open Frame | Size: 3.34" x 1.36" x 0.77" | Get a Quote |
| PSMHA30-12S | Input Voltage: 85~264 | Output Voltage: 12 | Output Current: 2.5A | Output Power (W): 30 | No. Outputs: S | Case: Open Frame | Size: 3.34" x 1.36" x 0.77" | Get a Quote |
| PSMHA30-121S | Input Voltage: 85~264 | Output Voltage: 12 | Output Current: 2.5A | Output Power (W): 30 | No. Outputs: S | Case: Open Frame | Size: 3.34" x 1.36" x 0.77" | Get a Quote |
| PSMHA30-15S | Input Voltage: 85~264 | Output Voltage: 15 | Output Current: 2A | Output Power (W): 30 | No. Outputs: S | Case: Open Frame | Size: 3.34" x 1.36" x 0.77" | Get a Quote |
| PSMHA30-151S | Input Voltage: 85~264 | Output Voltage: 15 | Output Current: 2A | Output Power (W): 30 | No. Outputs: S | Case: Open Frame | Size: 3.34" x 1.36" x 0.77" | Get a Quote |
| PSMHA30-18S | Input Voltage: 85~264 | Output Voltage: 18 | Output Current: 1.67A | Output Power (W): 30 | No. Outputs: S | Case: Open Frame | Size: 3.34" x 1.36" x 0.77" | Get a Quote |
| PSMHA30-24S | Input Voltage: 85~264 | Output Voltage: 24 | Output Current: 1.25A | Output Power (W): 30 | No. Outputs: S | Case: Open Frame | Size: 3.34" x 1.36" x 0.77" | Get a Quote |
| PSMHA30-28S | Input Voltage: 85~264 | Output Voltage: 28 | Output Current: 1.08A | Output Power (W): 30 | No. Outputs: S | Case: Open Frame | Size: 3.34" x 1.36" x 0.77" | Get a Quote |
| PSMHA30-36S | Input Voltage: 85~264 | Output Voltage: 36 | Output Current: 0.84A | Output Power (W): 30 | No. Outputs: S | Case: Open Frame | Size: 3.34" x 1.36" x 0.77" | Get a Quote |
| PSMHA30-48S | Input Voltage: 85~264 | Output Voltage: 48 | Output Current: 0.63A | Output Power (W): 30 | No. Outputs: S | Case: Open Frame | Size: 3.34" x 1.36" x 0.77" | Get a Quote |
| PSMHA30-53S | Input Voltage: 85~264 | Output Voltage: 53 | Output Current: 0.58A | Output Power (W): 30 | No. Outputs: S | Case: Open Frame | Size: 3.34" x 1.36" x 0.77" | Get a Quote |
| PSMHA30-5S-D | Input Voltage: 85~264 | Output Voltage: 5 | Output Current: 6A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2.74" x 1.36" x 0.95" | Get a Quote |
| PSMHA30-75S-D | Input Voltage: 85~264 | Output Voltage: 7.5 | Output Current: 4A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2.74" x 1.36" x 0.95" | Get a Quote |
| PSMHA30-9S-D | Input Voltage: 85~264 | Output Voltage: 9 | Output Current: 3.34A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2.74" x 1.36" x 0.95" | Get a Quote |
| PSMHA30-12S-D | Input Voltage: 85~264 | Output Voltage: 12 | Output Current: 2.5A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2.74" x 1.36" x 0.95" | Get a Quote |
| PSMHA30-121S-D | Input Voltage: 85~264 | Output Voltage: 12 | Output Current: 2.5A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2.74" x 1.36" x 0.95" | Get a Quote |
| PSMHA30-15S-D | Input Voltage: 85~264 | Output Voltage: 15 | Output Current: 2A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2.74" x 1.36" x 0.95" | Get a Quote |
| PSMHA30-151S-D | Input Voltage: 85~264 | Output Voltage: 15 | Output Current: 2A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2.74" x 1.36" x 0.95" | Get a Quote |
| PSMHA30-18S-D | Input Voltage: 85~264 | Output Voltage: 18 | Output Current: 1.67A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2.74" x 1.36" x 0.95" | Get a Quote |
| PSMHA30-24S-D | Input Voltage: 85~264 | Output Voltage: 24 | Output Current: 1.25A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2.74" x 1.36" x 0.95" | Get a Quote |
| PSMHA30-28S-D | Input Voltage: 85~264 | Output Voltage: 28 | Output Current: 1.08A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2.74" x 1.36" x 0.95" | Get a Quote |
| PSMHA30-36S-D | Input Voltage: 85~264 | Output Voltage: 36 | Output Current: 0.84A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2.74" x 1.36" x 0.95" | Get a Quote |
| PSMHA30-48S-D | Input Voltage: 85~264 | Output Voltage: 48 | Output Current: 0.63A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2.74" x 1.36" x 0.95" | Get a Quote |
| PSMHA30-53S-D | Input Voltage: 85~264 | Output Voltage: 53 | Output Current: 0.58A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2.74" x 1.36" x 0.95" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 100/240 |
| Input Voltage Range: | 85~264 |
| Input Frequency: | 47 to 63Hz |
| Output | |
| Output Voltage: | 3.3, 5, 7.5, 9, 12, 15, 18, 24, 28, 36, 48, 53 |
| Voltage Accuracy: | ±1% |
| Output Current: | 0.58A, 0.63A, 0.84A, 1.08A, 1.25A, 1.67A, 2A, 2.5A, 3.34A, 4A, 6A |
| Output Power (Watts): | 20, 30 |
| Output Trim/Adjustability: | ±10% |
| Short Circuit Protection: | Continuous, Automatic Recovery |
| Over Voltage Protection: | 125-140% |
| General | |
| Efficiency: | Up to 91.5% |
| Isolation: | 1 minute (2MOPP insulation), Input to Output: 4000VAC |
| Environmental | |
| Operating Temperature: | -40 to +85ºC |
| Storage Temperature: | -40 to +85ºC |
| Physical | |
| Weight: | Connector Type: 2.13oz (60.5g) Pin Type: 2.05oz (58g) Enclosed Case: 3.47oz (106g) |
| Dimensions: | Connector Type: 3.34in x 1.36in x 0.77in (84.8mm x 34.6mm x 19.6mm) Pin Type: 2.74in x 1.36in x 0.95in (69.7mm x 34.6mm x 24.1mm) Enclosed Case: 2.89in x 1.50in x 1in (73.3mm x 38.1mm x 25.4mm) |
| Notes & safety | |
| Notes: | 1. Several package and connector options are available for this series. See data sheet for details. 2. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | EN/IEC/ANSI/AAMI ES60601-1 & IEC/EN/UL 62368-1 |
| RoHS Compliance: | Yes |
