PSMG600

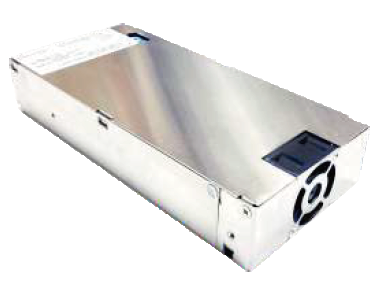

The PSMG600 series of AC/DC power supplies offers 600 watts of output power in an 8.5” x 3.94” x 1.57” enclosed case. This series consists of single output models with a wide operating voltage range of 90~264VAC. Each model features active power factor correction, high ESD immunity, and protection against over voltage, over load, over temperature, and short circuit conditions. This series also has IEC60601-1 Edition 3.1, ES60601-1:2005 (R2012), CAN/CSAC22.2 No. 60601-1:14, EN60601-1:2015/A1:2013, IEC62368-1 Edition 2.0, UL 62368-1, CAN/CSA-C22.2 No. 62368-1-14, EN62368-1:2014 safety approvals.

• Wide Operating Voltage 90~264VAC • Input to Output: 2MOPP • High ESD Immunity • Active Power Factor Correction • Over Voltage, Over Load, Over Temperature, and Short Circuit Protection • Optional 5V Standby Output & RS485 Communication • IEC60601-1 Edition 3.1, ES60601-1:2005 (R2012), CAN/CSAC22.2 No. 60601-1:14, EN60601-1:2015/A1:2013, IEC62368-1 Edition 2.0, UL 62368-1, CAN/CSA-C22.2 No. 62368-1-14, EN62368-1:2014 Safety Approvals
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case Size
PSMG600-24SP Input Voltage: 90~264 Output Voltage: 24 (Main), 5 (Standby) Output Current: 20.48A~24.58A (Main), 2A (Standby) Output Power (W): 590 No. Outputs: S Case: Enclosed Case Size: 8.5" x 3.94" x 1.57" Get a Quote
PSMG600-48SP Input Voltage: 90~264 Output Voltage: 48 (Main), 5 (Standby) Output Current: 10.24~12.29A (Main), 2A (Standby) Output Power (W): 590 No. Outputs: S Case: Enclosed Case Size: 8.5" x 3.94" x 1.57" Get a Quote
PSMG600-24SB Input Voltage: 90~264 Output Voltage: 24 (Main), 5 (Standby) Output Current: 20.48~24.58A (Main), 2A (Standby) Output Power (W): 590 No. Outputs: S Case: Enclosed Case Size: 8.5" x 3.94" x 1.57" Get a Quote
PSMG600-48SB Input Voltage: 90~264 Output Voltage: 48 (Main), 5 (Standby) Output Current: 10.24~12.29A (Main), 2A (Standby) Output Power (W): 590 No. Outputs: S Case: Enclosed Case Size: 8.5" x 3.94" x 1.57" Get a Quote
PSMG600-24S Input Voltage: 90~264 Output Voltage: 24 Output Current: 25A Output Power (W): 600 No. Outputs: S Case: Enclosed Case Size: 8.5" x 3.94" x 1.57" Get a Quote
PSMG600-48S Input Voltage: 90~264 Output Voltage: 48 Output Current: 12.5A Output Power (W): 600 No. Outputs: S Case: Enclosed Case Size: 8.5" x 3.94" x 1.57" Get a Quote
Specification Value
Input
Input Voltage (Nominal): 100/240
Input Voltage Range: 90~264
PFC: 0.92 - 1
Input Frequency: 47 - 63Hz
Output
Output Voltage: 24, 48, 5
Output Current: 12.50A, 25.00A, 2A, 20.48A~24.58A, 10.24A~12.29A, 20.48A~24.58A, 10.24A~12.29A
Output Power (Watts): 590, 600
Short Circuit Protection: Yes
Over Voltage Protection: 112-132%
General
Efficiency: Up to 91%
Environmental
Operating Temperature: -40 to 70°C
Storage Temperature: -40 to 85°C
Physical
Weight: 2.54lbs (1150g)
Dimensions: 8.5in x 3.94in x 1.57in (225.5mm x 100mm x 40mm)
Notes & safety
Notes: 1. Blank Model Number = Main Output
P Suffix = Main + Standby
B Suffix = Main + Standby + RS485
2. This product is Listed to applicable standards and requirements by UL.
3. Output can provide up to peak load when the power supply starts up. Continually staying in more than rated load is not allowed.
4. At factory, in 60% rated load condition, each output is checked to be within voltage accuracy.
5. Line regulation is defined by changing ±10% of input voltage from nominal line at rated load.
6. Load regulation is defined by changing ±40% of measured output load from 60% rated load.
7. The ripple is measured from peak to peak with a bandwidth limit of 20MHz (measured at the output connector with a 0.1uF ceramic capacitor and a 47uF electrolytic capacitor.
8. Hold up time is measured from the end of the last charging pulse to the time which the main output drops down to low limit of main output at rated load and nominal line.
9. Efficiency is measured at rated load and nominal line.
*Due to advances in technology, specifications subject to change without notice.
Safety Approvals: IEC60601-1 Edition 3.1, ES60601-1:2005 (R2012), CAN/CSAC22.2 No. 60601-1:14, EN60601-1:2015/A1:2013, IEC62368-1 Edition 2.0, UL 62368-1, CAN/CSA-C22.2 No. 62368-1-14, EN62368-1:2014
RoHS Compliance: Yes
