PSMFC15

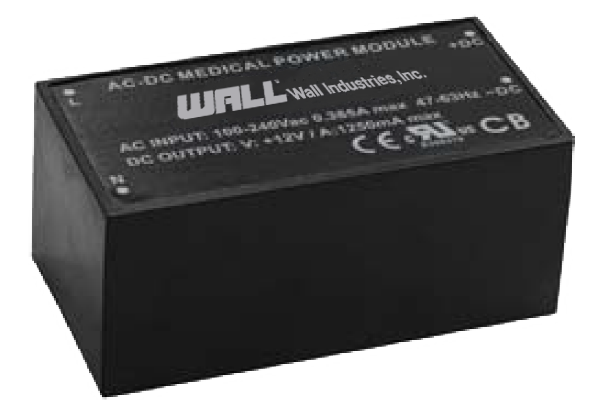

The PSMFC15 series of AC/DC medical power modules offers up to 15 watts of output power in a compact 2.07” x 1.08” x 0.93” package. This series consists of regulated single output models with a universal input range of 90-264VAC or 120-370VDC. Each model in this series has a fully encapsulated plastic case, over power, over voltage, and short circuit protection, and is also PCB mountable. This series has CE, CB, UL, and cUL approvals.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSMFC15-5 | Input Voltage: 90~264 | Output Voltage: 5 | Output Current: 3000mA | Output Power (W): 15 | No. Outputs: S | Case: PCB Mount | Size: 2.07" x 1.08" x 0.93" | Get a Quote |
| PSMFC15-9 | Input Voltage: 90~264 | Output Voltage: 9 | Output Current: 1666mA | Output Power (W): 15 | No. Outputs: S | Case: PCB Mount | Size: 2.07" x 1.08" x 0.93" | Get a Quote |
| PSMFC15-12 | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 1250mA | Output Power (W): 15 | No. Outputs: S | Case: PCB Mount | Size: 2.07" x 1.08" x 0.93" | Get a Quote |
| PSMFC15-15 | Input Voltage: 90~264 | Output Voltage: 15 | Output Current: 1000mA | Output Power (W): 15 | No. Outputs: S | Case: PCB Mount | Size: 2.07" x 1.08" x 0.93" | Get a Quote |
| PSMFC15-24 | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 625mA | Output Power (W): 15 | No. Outputs: S | Case: PCB Mount | Size: 2.07" x 1.08" x 0.93" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47 to 440Hz |
| Output | |
| Output Voltage: | 5. 9. 12, 15, 24 |
| Voltage Accuracy: | ±2 |
| Output Current: | 625mA, 1000mA, 1250mA, 1666mA, 3000mA |
| Output Power (Watts): | 15 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | Zener Diode Clamp |
| General | |
| Efficiency: | 85% |
| Isolation: | 4000VAC |
| Environmental | |
| Operating Temperature: | -40 to 85ºC |
| Storage Temperature: | -40 to 90ºC |
| Physical | |
| Weight: | 2.12oz (60g) |
| Dimensions: | 2.07in x 1.08in x 0.93in (52.5mm x 27.5mm x 23.5mm) |
| Case Material: | Plastic Resin |
| Notes & safety | |
| Notes: | 1. This product is not designed for use in critical life support systems, equipment used in hazardous environment, nuclear control systems or other such applications which necessitate specific safety and regulatory standards other than the ones listed in this datasheet. 2. Ripple & Noise are measured at 20MHz of bandwidth with 0.1uF & 47uF parallel capacitor. 3. Natural convection is about 20LFM but is not equal to still air (0 LFM). 4. Safety approvals cover frequency 47-63Hz. 5. It is recommended to add Varistor 14S471K at L/N input side in parallel. 6. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | CE, CB, UL, cUL |
