PSMBU31
The PSMBU31 series of class I medical AC/DC switching power supplies provides 30 Watts of continuous output power in a 4.00” x 1.99” x 1.16” open frame package. This series consists of single output models with a wide input voltage range of 80~275VAC. Some features include high efficiency up to 85%, internal EMI filter, 2MOPP insulation, and over load and over voltage protection. This series also has IEC60601-1 Editions 3.1, ES60601-1: 2005 (R2012), CSAC22.2 No 60601-1:14, EN60601-1: 2006/A1:2013 approvals. All models are RoHS compliant and have been 100% burn-in tested.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSMBU31-102 | Input Voltage: 80~275 | Output Voltage: 5 | Output Current: 6A | Output Power (W): 30 | No. Outputs: S | Case: Open Frame | Size: 4" x 1.99" x 1.16" | Get a Quote |
| PSMBU31-103 | Input Voltage: 80~275 | Output Voltage: 7 | Output Current: 4.28A | Output Power (W): 30 | No. Outputs: S | Case: Open Frame | Size: 4" x 1.99" x 1.16" | Get a Quote |
| PSMBU31-104 | Input Voltage: 80~275 | Output Voltage: 9 | Output Current: 3.33A | Output Power (W): 30 | No. Outputs: S | Case: Open Frame | Size: 4" x 1.99" x 1.16" | Get a Quote |
| PSMBU31-105 | Input Voltage: 80~275 | Output Voltage: 12 | Output Current: 2.5A | Output Power (W): 30 | No. Outputs: S | Case: Open Frame | Size: 4" x 1.99" x 1.16" | Get a Quote |
| PSMBU31-106 | Input Voltage: 80~275 | Output Voltage: 15 | Output Current: 2A | Output Power (W): 30 | No. Outputs: S | Case: Open Frame | Size: 4" x 1.99" x 1.16" | Get a Quote |
| PSMBU31-107 | Input Voltage: 80~275 | Output Voltage: 18 | Output Current: 1.66A | Output Power (W): 30 | No. Outputs: S | Case: Open Frame | Size: 4" x 1.99" x 1.16" | Get a Quote |
| PSMBU31-108 | Input Voltage: 80~275 | Output Voltage: 24 | Output Current: 1.25A | Output Power (W): 30 | No. Outputs: S | Case: Open Frame | Size: 4" x 1.99" x 1.16" | Get a Quote |
| PSMBU31-109 | Input Voltage: 80~275 | Output Voltage: 30 | Output Current: 1A | Output Power (W): 30 | No. Outputs: S | Case: Open Frame | Size: 4" x 1.99" x 1.16" | Get a Quote |
| PSMBU31-110 | Input Voltage: 80~275 | Output Voltage: 36 | Output Current: 830mA | Output Power (W): 30 | No. Outputs: S | Case: Open Frame | Size: 4" x 1.99" x 1.16" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 80~275 |
| Input Frequency: | 47-63Hz |
| Output | |
| Output Voltage: | 5, 7, 9, 12, 15, 18, 24, 30, 36 |
| Output Current: | 6A, 4.28A, 3.33A, 2.5A, 2A, 1.66A, 1.25A, 1A, 830mA |
| Output Power (Watts): | 30 |
| Over Voltage Protection: | 112-132% |
| General | |
| Efficiency: | 76.4-85% |
| Isolation: | 6578VDC |
| Environmental | |

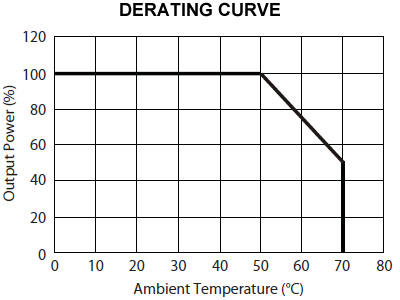

| Operating Temperature: | -10 to 70°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | 7.05oz (200g) |

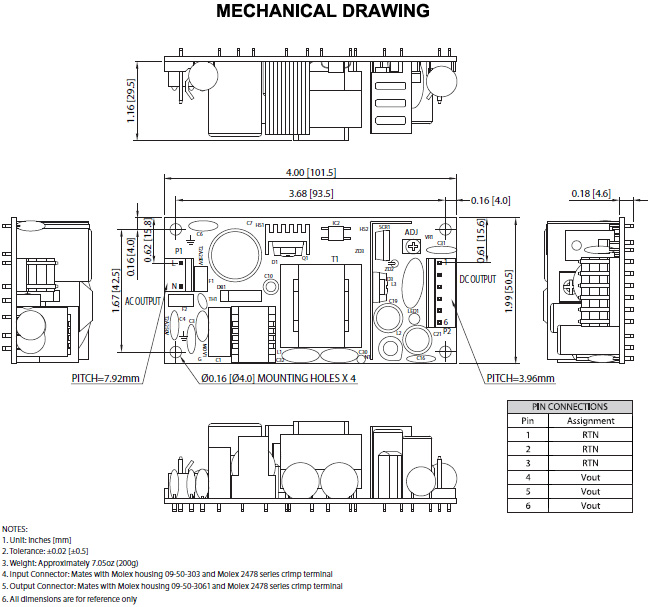

| Dimensions: | 4.00" x 1.99" x 1.16" (101.5 x 50.5 x 29.5 mm) |
| Notes & safety | |
| Notes: | 1. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | IEC60601-1 Editions 3.1, ES60601-1: 2005 (R2012), CSAC22.2 No 60601-1:14, EN60601-1: 2006/A1:2013 |
| RoHS Compliance: | Yes |
