PSMBU153
The PSMBU153 series of Class I medical AC/DC switching power supplies provides 150 Watts of continuous output power in a compact 5” x 3” x 1.44” open frame package. This series consists of 12VDC and 24VDC single output models with a wide input voltage range of 90~260VAC. These power supplies have active power factor correction and over current and over voltage protection. All models meet FCC Part-18 Class B and CISPR-11 EN55011 Class B Emission Limits. This series also has ANSI/AAMI ES 60601-1: 2005 (UL/cUL 3rd edition) and EN 60601-1: 2006 (TUV/T-mark 3rd edition) safety approvals and also meets new CE requirements. All models are RoHS compliant and have been 100% burn-in tested.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSMBU153-105 | Input Voltage: 90~260 | Output Voltage: 12 | Output Current: 12.5A | Output Power (W): 150 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.44" | Get a Quote |
| PSMBU153-108 | Input Voltage: 90~260 | Output Voltage: 24 | Output Current: 6.25A | Output Power (W): 150 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.44" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~260 |
| PFC: | 0.95-1 |
| Input Frequency: | 47-63Hz |
| Output | |
| Output Voltage: | 12, 24 |
| Output Current: | 12.5A, 6.25A |
| Output Power (Watts): | 150 |
| Over Voltage Protection: | 112-132% |
| General | |
| Efficiency: | 84-89% |
| Isolation: | 6990VDC |
| Environmental | |

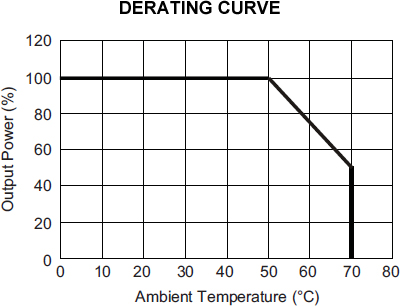

| Operating Temperature: | 0 to 70°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | 14.8oz (420g) |

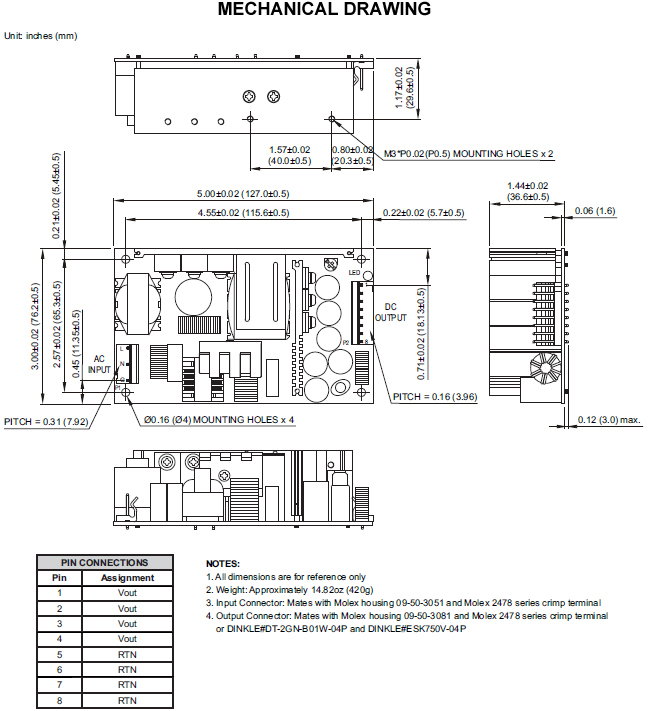

| Dimensions: | 5" x 3" x 1.44" (127 x 76.2 x 36.6 mm) |
| Notes & safety | |
| Notes: | 1. Input connector mates with Molex housing 09-50-3051 and Molex 2478 series crimp terminal. 2. Output Connector mates with Molex housing 09-50-3081 and Molex 2478 series crimp terminal or DINKLE#DT-2GN-B01W-04P and DINKLE#ESK750V-04P 3. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | ANSI/AAMI ES 60601-1: 2005 (UL/cUL 3rd edition), EN 60601-1:2006 (TUV/T-mark 3rd edition) |
| RoHS Compliance: | Yes |
| TUV Efficiency Level: | EN 60601-1: 2006 (TUV/T-mark 3rd edition) |
