PSMBU152

The PSMBU152 series of class I medical AC/DC switching power supplies provides 150 Watts of continuous output power in a 5.00” x 3.00” x 1.46” open frame package. This series consists of 12VDC and 24VDC single output models with a wide input voltage range of 90~260VAC. Some features include high efficiency up to 89%, active power factor correction, 2MOPP insulation, and short circuit, over current and over load protection. All models meet FCC Part-18, CISPR-11, and EN55011 Class B class B emission limits. This series also has IEC60601-1 Edition 3.1, ES60601-1:2005(R2012), CSAC22.2 NO. 60601-1:14, and EN60601-1:2006/A1:2013 safety approvals. All models are RoHS compliant and have been 100% burn-in tested.

• Class I • RoHS Compliant • Active Power Factor Correction • Flammability Rating of UL94V-1 • 12VDC & 24VDC Single Outputs • 150 Watts Output Power • Input to Output: 2MOPP • Up to 86% High Efficiency • Wide Input Voltage Range: 90~260VAC, 47~63Hz • Short Circuit, Over Voltage, & Over Load Protection • Meets FCC Part-18, CISPR-11, and EN55011 Class B Emission Limits • IEC60601-1 Edition 3.1, ES60601-1:2005(R2012), CSAC22.2 NO. 60601-1:14, and EN60601-1:2006/A1:2013 Safety Approvals • 100% Burn-in Tested
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
PSMBU152-105 Input Voltage: 90~260 Output Voltage: 12 Output Current: 12.5A Output Power (W): 150 No. Outputs: S Case: Open Frame Get a Quote
PSMBU152-108 Input Voltage: 90~260 Output Voltage: 24 Output Current: 6.25A Output Power (W): 150 No. Outputs: S Case: Open Frame Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 90~260
PFC: 0.95-1
Input Frequency: 47-63Hz
Output
Output Voltage: 12, 24
Output Current: 12.5A, 6.25A
Output Power (Watts): 150
Over Voltage Protection: 112-132%
General
Efficiency: 86% Max.
Isolation: 4000VAC
Environmental

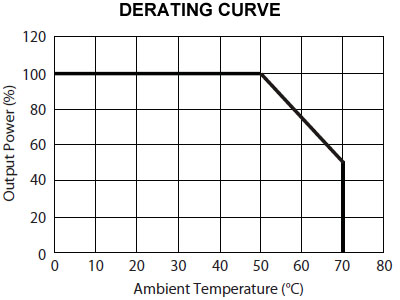

Operating Temperature: -10 to 70°C
Storage Temperature: -40 to 85°C
Physical
Weight: 14.8oz (420g)

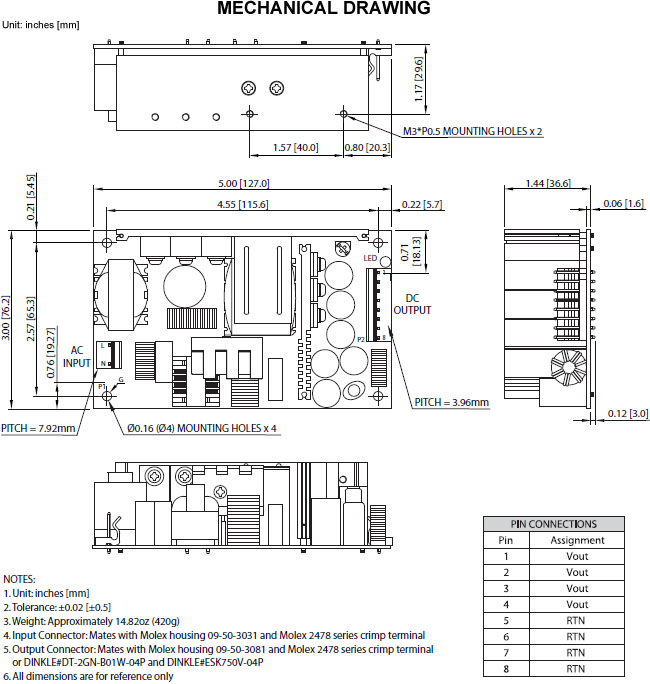

Dimensions: 5.00" x 3.00" x 1.46" (127.0 x 76.2 x 37.1 mm)
Notes & safety
Notes: 1. Output can provide up to peak load when power supply starts up. Staying in more than rated load continually is not allowed.
2. At factory in 60% rated load condition, each output is checked to be within voltage accuracy.
3. Line regulation is defined by changing ±10% of input voltage from nominal line at rated load.
4. Load regulation is defined by changing ±40% of measured output load from 60% rated load.
5. Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.47uF capacitor at rated load and nominal line.
6. Hold up time is measured from the end of the last charging pulse to the time which the main output drops down to low limit of main output at rated load and nominal line.
Due to advances in technology, specifications subject to change without notice.
Safety Approvals: • IEC60601-1 Edition 3.1, ES60601-1:2005(R2012), CSAC22.2 NO. 60601-1:14, EN60601-1:2006/A1:2013
RoHS Compliance: Yes
TUV Efficiency Level: EN 60601-1: 2006 (TUV/T-mark 3rd edition)
