PSMAD100
The PSMAD100 series of AC/DC medical power supplies provides 100 watts of output power in a compact 2 x 3 inch footprint. These supplies feature a universal 85-264VAC (120~370 VDC) input, enabling them to be used anywhere in the world. The off load power draw is less than 0.3 watts, which complies with many energy-saving initiatives. 12V~48VDC single output voltages are available for this series, all of which have a ±10% adjustment range. These supplies also feature a low leakage current of less than 75μA at 264VAC and are designed to withstand 4000VAC, input to output. The PSMAD100 series has an operating temperature range of -25°C to +85°C, active power factor correction, and a high efficiency up to 92%. These supplies are also protected against short circuit, over voltage, and over current conditions. The PSMAD100 series has IEC/EN/ANSI/AAMI ES60601-1 UL: E360199 and IEC/EN/UL60950-1 CB: UL(Demko) safety approvals, is CE marked, designed to meet Efficiency Level VI, and meets the conducted and radiated EMI requirements of EN55011, EN55032, EN60601-1-2 and FCC Part 18/15. Open frame, U-chassis, enclosed case, and DIN rail mechanical options are available. Class I and Class II protection types are also available.
• Protection Type Class I and Class II
• Active Power Factor Correction
• 2 x 3 Inch Footprint
• Low Leakage Current Under 75µA
• High Efficiency up to 92%
• Adjustable Output Voltage
• Built-In EMI Filter
• 5000m Operating Altitude
• 100 Watts Maximum Output Power
• 4000VAC Reinforced Insulation
• 2xMOPP
• 85~264VAC (120~370VDC) Input Voltage Range
• -25ºC to 85ºC Operating Temperature Range
• Over Voltage, Over Load, and Short Circuit Protection
• Low Standby Power Consumption under 0.3W
• Compliant to RoHS and REACH, CE Marked
• Designed to Meet Efficiency Level VI
• IEC/EN/ANSI/AAMI ES60601-1 UL: E360199 and IEC/EN/UL60950-1 CB: UL(Demko) Safety Approvals

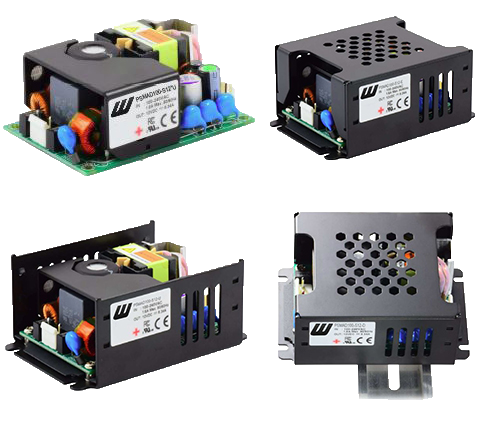

• Open Frame, U-Chassis, Enclosed Case, and Din Rail Mechanical Options Available
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |

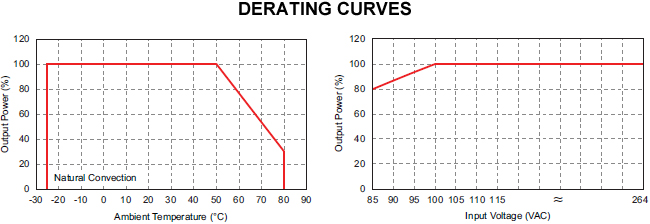

Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSMAD100-12S-O | Input Voltage: 85~264 | Output Voltage: 12 | Output Current: 8.34 A | Output Power (W): 100 | No. Outputs: S | Case: Open Frame | Size: 3" x 2" x 1.16" | Get a Quote |
| PSMAD100-15S-O | Input Voltage: 85~264 | Output Voltage: 15 | Output Current: 6.67 A | Output Power (W): 100 | No. Outputs: S | Case: Open Frame | Size: 3" x 2" x 1.16" | Get a Quote |
| PSMAD100-24S-O | Input Voltage: 85~264 | Output Voltage: 24 | Output Current: 4.17 A | Output Power (W): 100 | No. Outputs: S | Case: Open Frame | Size: 3" x 2" x 1.16" | Get a Quote |
| PSMAD100-28S-O | Input Voltage: 85~264 | Output Voltage: 28 | Output Current: 3.58 A | Output Power (W): 100 | No. Outputs: S | Case: Open Frame | Size: 3" x 2" x 1.16" | Get a Quote |
| PSMAD100-36S-O | Input Voltage: 85~264 | Output Voltage: 36 | Output Current: 2.78 A | Output Power (W): 100 | No. Outputs: S | Case: Open Frame | Size: 3" x 2" x 1.16" | Get a Quote |
| PSMAD100-48S-O | Input Voltage: 85~264 | Output Voltage: 48 | Output Current: 2.09 A | Output Power (W): 100 | No. Outputs: S | Case: Open Frame | Size: 3" x 2" x 1.16" | Get a Quote |
| PSMAD100-12S-U | Input Voltage: 85~264 | Output Voltage: 12 | Output Current: 8.34 A | Output Power (W): 100 | No. Outputs: S | Case: U-Chassis | Size: 3.6" x 2.44" x 1.54" | Get a Quote |
| PSMAD100-15S-U | Input Voltage: 85~264 | Output Voltage: 15 | Output Current: 6.67 A | Output Power (W): 100 | No. Outputs: S | Case: U-Chassis | Size: 3.6" x 2.44" x 1.54" | Get a Quote |
| PSMAD100-24S-U | Input Voltage: 85~264 | Output Voltage: 24 | Output Current: 4.17 A | Output Power (W): 100 | No. Outputs: S | Case: U-Chassis | Size: 3.6" x 2.44" x 1.54" | Get a Quote |
| PSMAD100-28S-U | Input Voltage: 85~264 | Output Voltage: 28 | Output Current: 3.58 A | Output Power (W): 100 | No. Outputs: S | Case: U-Chassis | Size: 3.6" x 2.44" x 1.54" | Get a Quote |
| PSMAD100-36S-U | Input Voltage: 85~264 | Output Voltage: 36 | Output Current: 2.78 A | Output Power (W): 100 | No. Outputs: S | Case: U-Chassis | Size: 3.6" x 2.44" x 1.54" | Get a Quote |
| PSMAD100-48S-U | Input Voltage: 85~264 | Output Voltage: 48 | Output Current: 2.09 A | Output Power (W): 100 | No. Outputs: S | Case: U-Chassis | Size: 3.6" x 2.44" x 1.54" | Get a Quote |
| PSMAD100-12S-C | Input Voltage: 85~264 | Output Voltage: 12 | Output Current: 8.34 A | Output Power (W): 100 | No. Outputs: S | Case: Enclosed Case | Size: 3.6" x 2.44" x 1.54" | Get a Quote |
| PSMAD100-15S-C | Input Voltage: 85~264 | Output Voltage: 15 | Output Current: 6.67 A | Output Power (W): 100 | No. Outputs: S | Case: Enclosed Case | Size: 3.6" x 2.44" x 1.54" | Get a Quote |
| PSMAD100-24S-C | Input Voltage: 85~264 | Output Voltage: 24 | Output Current: 4.17 A | Output Power (W): 100 | No. Outputs: S | Case: Enclosed Case | Size: 3.6" x 2.44" x 1.54" | Get a Quote |
| PSMAD100-28S-C | Input Voltage: 85~264 | Output Voltage: 28 | Output Current: 3.58 A | Output Power (W): 100 | No. Outputs: S | Case: Enclosed Case | Size: 3.6" x 2.44" x 1.54" | Get a Quote |
| PSMAD100-36S-C | Input Voltage: 85~264 | Output Voltage: 36 | Output Current: 2.78 A | Output Power (W): 100 | No. Outputs: S | Case: Enclosed Case | Size: 3.6" x 2.44" x 1.54" | Get a Quote |
| PSMAD100-48S-C | Input Voltage: 85~264 | Output Voltage: 48 | Output Current: 2.09 A | Output Power (W): 100 | No. Outputs: S | Case: Enclosed Case | Size: 3.6" x 2.44" x 1.54" | Get a Quote |
| PSMAD100-12S-DN | Input Voltage: 85~264 | Output Voltage: 12 | Output Current: 8.34 A | Output Power (W): 100 | No. Outputs: S | Case: DIN Rail | Size: ~3.6" x 2.45" x 1.54" | Get a Quote |
| PSMAD100-15S-DN | Input Voltage: 85~264 | Output Voltage: 15 | Output Current: 6.67 A | Output Power (W): 100 | No. Outputs: S | Case: DIN Rail | Size: ~3.6" x 2.45" x 1.54" | Get a Quote |
| PSMAD100-24S-DN | Input Voltage: 85~264 | Output Voltage: 24 | Output Current: 4.17 A | Output Power (W): 100 | No. Outputs: S | Case: DIN Rail | Size: ~3.6" x 2.45" x 1.54" | Get a Quote |
| PSMAD100-28S-DN | Input Voltage: 85~264 | Output Voltage: 28 | Output Current: 3.58 A | Output Power (W): 100 | No. Outputs: S | Case: DIN Rail | Size: ~3.6" x 2.45" x 1.54" | Get a Quote |
| PSMAD100-36S-DN | Input Voltage: 85~264 | Output Voltage: 36 | Output Current: 2.78 A | Output Power (W): 100 | No. Outputs: S | Case: DIN Rail | Size: ~3.6" x 2.45" x 1.54" | Get a Quote |
| PSMAD100-48S-DN | Input Voltage: 85~264 | Output Voltage: 48 | Output Current: 2.09 A | Output Power (W): 100 | No. Outputs: S | Case: DIN Rail | Size: ~3.6" x 2.45" x 1.54" | Get a Quote |
| PSMAD100-18S-O | Input Voltage: 85~264 | Output Voltage: 18 | Output Current: 5.56A | Output Power (W): 100 | No. Outputs: S | Case: Open Frame | Size: 3" x 2" x 1.16" | Get a Quote |
| PSMAD100-18S-U | Input Voltage: 85~264 | Output Voltage: 18 | Output Current: 5.56A | Output Power (W): 100 | No. Outputs: S | Case: U-Chassis | Size: 3.6" x 2.44" x 1.54" | Get a Quote |
| PSMAD100-18S-C | Input Voltage: 85~264 | Output Voltage: 18 | Output Current: 5.56A | Output Power (W): 100 | No. Outputs: S | Case: Enclosed Case | Size: 3.6" x 2.44" x 1.54" | Get a Quote |
| PSMAD100-18S-DN | Input Voltage: 85~264 | Output Voltage: 18 | Output Current: 5.56A | Output Power (W): 100 | No. Outputs: S | Case: DIN Rail | Size: ~3.6" x 2.45" x 1.54" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 85~264 |
| PFC: | 0.95 |
| Input Frequency: | 47 - 63Hz |
| Output | |
| Output Voltage: | 12, 15, 18, 24, 28, 36, 48 |
| Voltage Accuracy: | ±1.0% |
| Output Current: | 8.34A, 6.67A, 5.56A, 4.17A, 3.58A, 2.78A, 2.09A |
| Output Power (Watts): | 100 |
| Output Trim/Adjustability: | ±10% |
| Short Circuit Protection: | Continuous, Automatic Recovery |
| Over Voltage Protection: | 115-135% |
| General | |
| Efficiency: | Up to 92% |
| Isolation: | Input to Output: 4000VAC (2 MOPP insulation) Input/Output to FG: 1500VAC |
| Environmental | |
| Operating Temperature: | -20 to 85°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | Open Frame Models: 5.50oz (156g) U-Chassis Models: 6.84oz (194g) Enclosed Case Models: 7.41oz (210g) DIN Rail Models: 8.18oz (232g) |

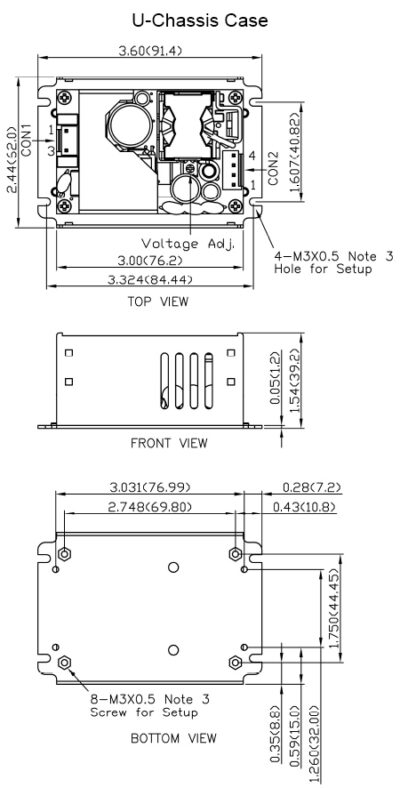

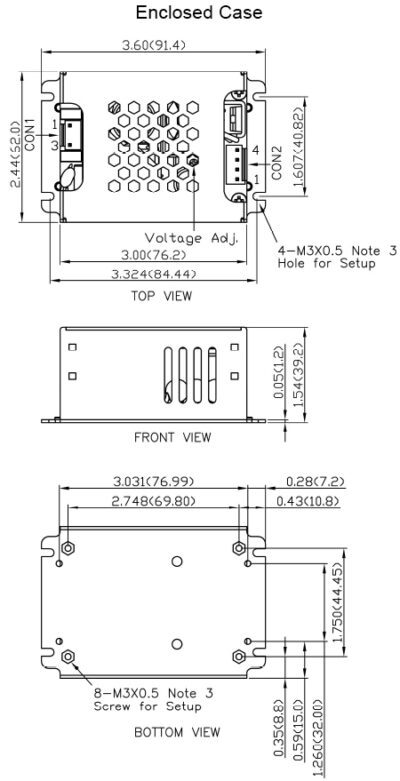

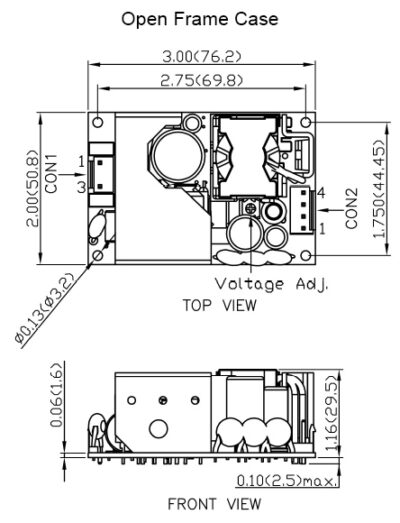

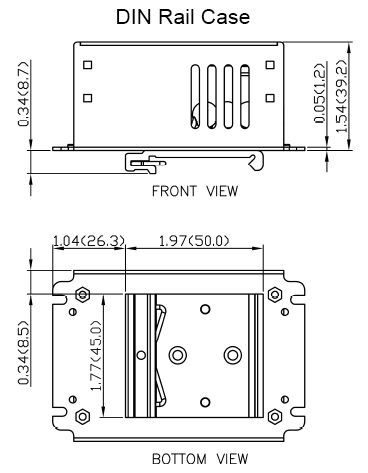

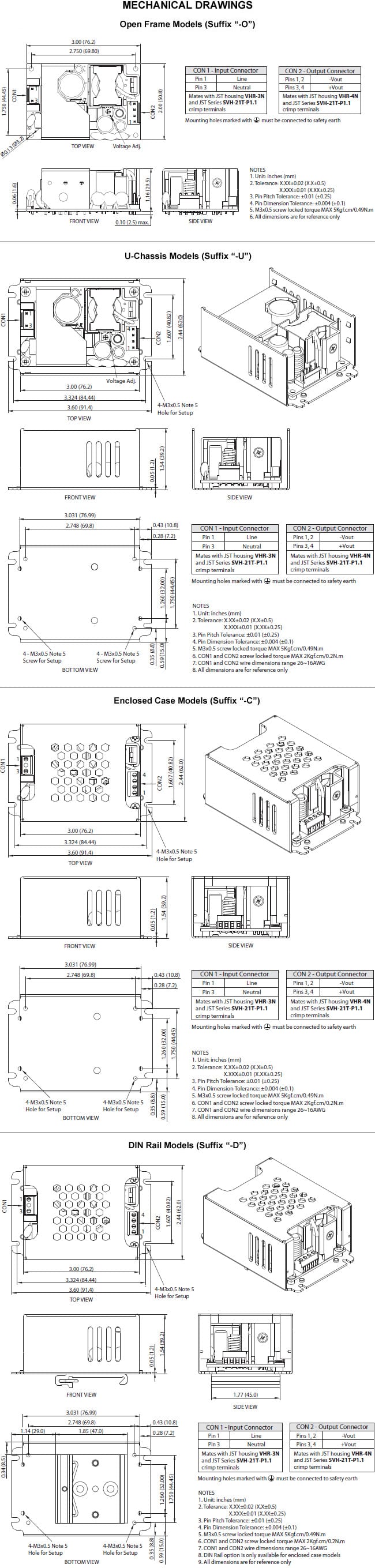

| Dimensions: | Open Frame Models: 3.00" x 2.00" x 1.16" (76.2 x 50.8 x 29.5 mm) U-Chassis and Enclosed Models: 3.60" x 2.44" x 1.54" (91.4 x 62.0 x 39.2 mm) DIN Rail Models: ~3.60" x 2.45" x 1.54" (~76.3 x 62.23 x 39.2 mm) |
| Notes & safety | |
| Notes: | (1) Protection types Class I and Class II are available for this series. Class I comes standard and for Class II add the suffix “B” to the model number. See page 7 for model number setup for model number setup. (2) Din Rail option is only available for enclosed case type models. (3) This product is listed to applicable standards and requirements by UL (4) External components may be required for Class I application Due to advances in technology, specifications are subject to change without notice. |
| Safety Approvals: | IEC/EN/ANSI/AAMI ES60601-1 UL: E360199 and IEC/EN/UL60950-1 CB: UL(Demko) |
| RoHS Compliance: | Yes |
