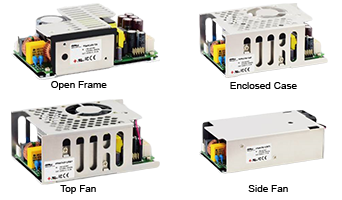

PSMAC450
The PSMAC450 series of AC/DC medical power supplies offers up to 450 watts of output power in an open frame or enclosed package. This series consists of adjustable single output models with a wide input voltage range of 85~264VAC. Features of this series include low leakage and standby current, high efficiency, power good, remote on/off, input protection, as well as over load, over voltage, and short circuit protection. This series is both RoHS and REACH compliant, has 2xMOPP, complies with protection class I, and is designed to meet IEC/EN/ANSI/AAMI ES 60601-1 & IEC/EN/UL 60905-1, 62368-1. Please contact factory for order details.
• Input Voltage Range of 85~264VAC
• Adjustable Output Voltage
• Low Leakage Current
• Low Standby Current
• Power Good
• Very High Efficiency
• RoHS Compliant
• REACH Compliant
• 5 Year Warranty
• Over Load, Over Voltage, and Short Circuit Protection
• Input Protection
• Protection Class I
• Remote ON/OFF
• 2xMOPP
• 4000VAC Reinforced Insulation
• Designed to Meet IEC/EN/ANSI/AAMI ES 60601-1 & IEC/EN/UL 60950-1
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSMAC450-12SA (Y) | Input Voltage: 85~264 | Output Voltage: 12 | Output Current: 37.5A | Output Power (W): 450 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.58" | Get a Quote |
| PSMAC450-12SE (Y) | Input Voltage: 85~264 | Output Voltage: 12 | Output Current: 37.5A | Output Power (W): 450 | No. Outputs: S | Case: Enclosed Case | Size: 5" x 3.41" x 1.97" | Get a Quote |
| PSMAC450-15SA (Y) | Input Voltage: 85~264 | Output Voltage: 15 | Output Current: 30A | Output Power (W): 450 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.58" | Get a Quote |
| PSMAC450-15SE (Y) | Input Voltage: 85~264 | Output Voltage: 15 | Output Current: 30A | Output Power (W): 450 | No. Outputs: S | Case: Enclosed Case | Size: 5" x 3.41" x 1.97" | Get a Quote |
| PSMAC450-24SA (Y) | Input Voltage: 85~264 | Output Voltage: 24 | Output Current: 18.75A | Output Power (W): 450 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.58" | Get a Quote |
| PSMAC450-24SE (Y) | Input Voltage: 85~264 | Output Voltage: 24 | Output Current: 18.75A | Output Power (W): 450 | No. Outputs: S | Case: Enclosed Case | Size: 5" x 3.41" x 1.97" | Get a Quote |
| PSMAC450-28SA (Y) | Input Voltage: 85~264 | Output Voltage: 28 | Output Current: 16.1A | Output Power (W): 450 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.58" | Get a Quote |
| PSMAC450-28SE (Y) | Input Voltage: 85~264 | Output Voltage: 28 | Output Current: 16.1A | Output Power (W): 450 | No. Outputs: S | Case: Enclosed Case | Size: 5" x 3.41" x 1.97" | Get a Quote |
| PSMAC450-48SA (Y) | Input Voltage: 85~264 | Output Voltage: 48 | Output Current: 9.4A | Output Power (W): 450 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.58" | Get a Quote |
| PSMAC450-48SE (Y) | Input Voltage: 85~264 | Output Voltage: 48 | Output Current: 9.4A | Output Power (W): 450 | No. Outputs: S | Case: Enclosed Case | Size: 5" x 3.41" x 1.97" | Get a Quote |
| PSMAC450-53SA (Y) | Input Voltage: 85~264 | Output Voltage: 53 | Output Current: 8.55A | Output Power (W): 450 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.58" | Get a Quote |
| PSMAC450-53SE (Y) | Input Voltage: 85~264 | Output Voltage: 53 | Output Current: 8.55A | Output Power (W): 450 | No. Outputs: S | Case: Enclosed Case | Size: 5" x 3.41" x 1.97" | Get a Quote |
| PSMAC450-12SEz1 | Input Voltage: 85~264 | Output Voltage: 12 | Output Current: 37.5A | Output Power (W): 450 | No. Outputs: S | Case: Enclosed with Top Fan | Size: 5" x 3.41" x 1.97" | Get a Quote |
| PSMAC450-12SEz2 | Input Voltage: 85~264 | Output Voltage: 12 | Output Current: 37.5A | Output Power (W): 450 | No. Outputs: S | Case: Enclosed with Fan | Size: 5.83" x 3.15" x 1.6" | Get a Quote |
| PSMAC450-15SEz1 | Input Voltage: 85~264 | Output Voltage: 15 | Output Current: 30A | Output Power (W): 450 | No. Outputs: S | Case: Enclosed with Top Fan | Size: 5" x 3.41" x 1.97" | Get a Quote |
| PSMAC450-15SEz2 | Input Voltage: 85~264 | Output Voltage: 15 | Output Current: 30A | Output Power (W): 450 | No. Outputs: S | Case: Enclosed with Fan | Size: 5.83" x 3.15" x 1.6" | Get a Quote |
| PSMAC450-24SEz1 | Input Voltage: 85~264 | Output Voltage: 24 | Output Current: 18.75A | Output Power (W): 450 | No. Outputs: S | Case: Enclosed with Top Fan | Size: 5" x 3.41" x 1.97" | Get a Quote |
| PSMAC450-24SEz2 | Input Voltage: 85~264 | Output Voltage: 24 | Output Current: 18.75A | Output Power (W): 450 | No. Outputs: S | Case: Enclosed with Fan | Size: 5.83" x 3.15" x 1.6" | Get a Quote |
| PSMAC450-28SEz1 | Input Voltage: 85~264 | Output Voltage: 28 | Output Current: 16.1A | Output Power (W): 450 | No. Outputs: S | Case: Enclosed with Top Fan | Size: 5" x 3.41" x 1.97" | Get a Quote |
| PSMAC450-28SEz2 | Input Voltage: 85~264 | Output Voltage: 28 | Output Current: 16.1A | Output Power (W): 450 | No. Outputs: S | Case: Enclosed with Fan | Size: 5.83" x 3.15" x 1.6" | Get a Quote |
| PSMAC450-48SEz1 | Input Voltage: 85~264 | Output Voltage: 48 | Output Current: 9.4A | Output Power (W): 450 | No. Outputs: S | Case: Enclosed with Top Fan | Size: 5" x 3.41" x 1.97" | Get a Quote |
| PSMAC450-48SEz2 | Input Voltage: 85~264 | Output Voltage: 48 | Output Current: 9.4A | Output Power (W): 450 | No. Outputs: S | Case: Enclosed with Fan | Size: 5.83" x 3.15" x 1.6" | Get a Quote |
| PSMAC450-53SEz1 | Input Voltage: 85~264 | Output Voltage: 53 | Output Current: 8.55A | Output Power (W): 450 | No. Outputs: S | Case: Enclosed with Top Fan | Size: 5" x 3.41" x 1.97" | Get a Quote |
| PSMAC450-53SEz2 | Input Voltage: 85~264 | Output Voltage: 53 | Output Current: 8.55A | Output Power (W): 450 | No. Outputs: S | Case: Enclosed with Fan | Size: 5.83" x 3.15" x 1.6" | Get a Quote |
| PSMAC450-36SA (Y) | Input Voltage: 85~264 | Output Voltage: 36 | Output Current: 12.5A | Output Power (W): 450 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.58" | Get a Quote |
| PSMAC450-36SE (Y) | Input Voltage: 85~264 | Output Voltage: 36 | Output Current: 12.5A | Output Power (W): 450 | No. Outputs: S | Case: Enclosed Case | Size: 5" x 3" x 1.58" | Get a Quote |
| PSMAC450-36SEz1 | Input Voltage: 85~264 | Output Voltage: 36 | Output Current: 12.5A | Output Power (W): 450 | No. Outputs: S | Case: Enclosed with Top Fan | Size: 5" x 3.41" x 1.97" | Get a Quote |
| PSMAC450-36SEz2 | Input Voltage: 85~264 | Output Voltage: 36 | Output Current: 12.5A | Output Power (W): 450 | No. Outputs: S | Case: Enclosed with Fan | Size: 5.83" x 3.15" x 1.6" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 100/240 |
| Input Voltage Range: | 85~264 |
| PFC: | 0.95 |
| Input Frequency: | 47~63Hz |
| Output | |
| Output Voltage: | 12, 15, 24, 28, 36, 48, 53 |
| Voltage Accuracy: | ±1.0% |
| Output Current: | 8.55A, 9.4A, 12.5A, 16.1A, 18.75A, 30A, 37.5A |
| Output Power (Watts): | 250, 280, 320, 350, 450 |
| Output Trim/Adjustability: | ±8% |
| Short Circuit Protection: | Protection Level 1 (Nominal): Continuous, Automatic Recovery Protection Level 2 (Instantaneous High Current): Latch |
| Over Voltage Protection: | % of Vout(nom); Latch Mode: 110 to 135% |
| Thermal Protection: | 110-125°C |
| General | |
| Efficiency: | Up to 94% |
| Isolation: | Input to Output: 4000VAC Input (Output) to F.G.: 2500VAC |
| Environmental | |
| Operating Temperature: | Fan Connector Mode Models: -40 to+85ºC Top & Side Fan Models: -40 to +80ºC |
| Storage Temperature: | Fan Connector Mode Models: -40 to +85ºC Top & Side Fan Models: -40 to +75ºC |
| Physical | |
| Weight: | Open Frame Models: 16.29oz (462g) Enclosed Fan Connector Mode Models: 17.77oz (504g) Top Fan Models: 18.48oz (524g) Side Fan Models: 19.47oz (552g) |

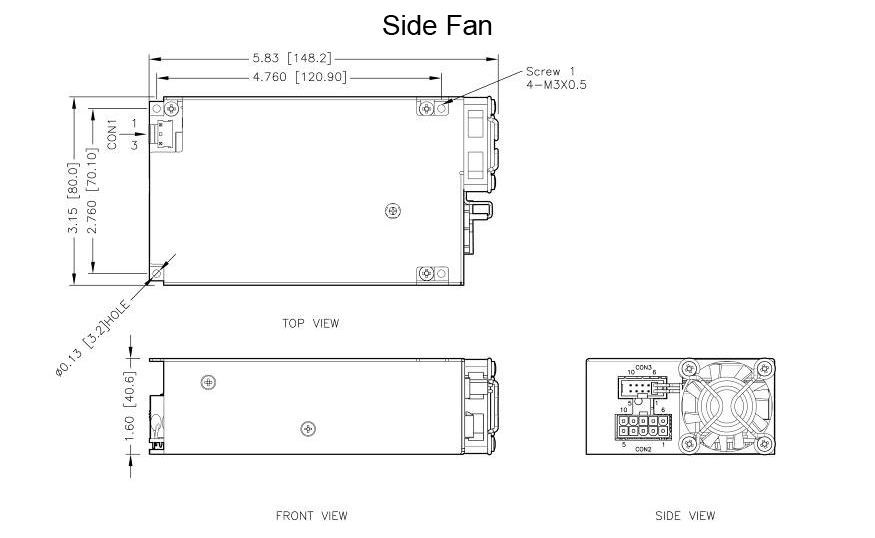

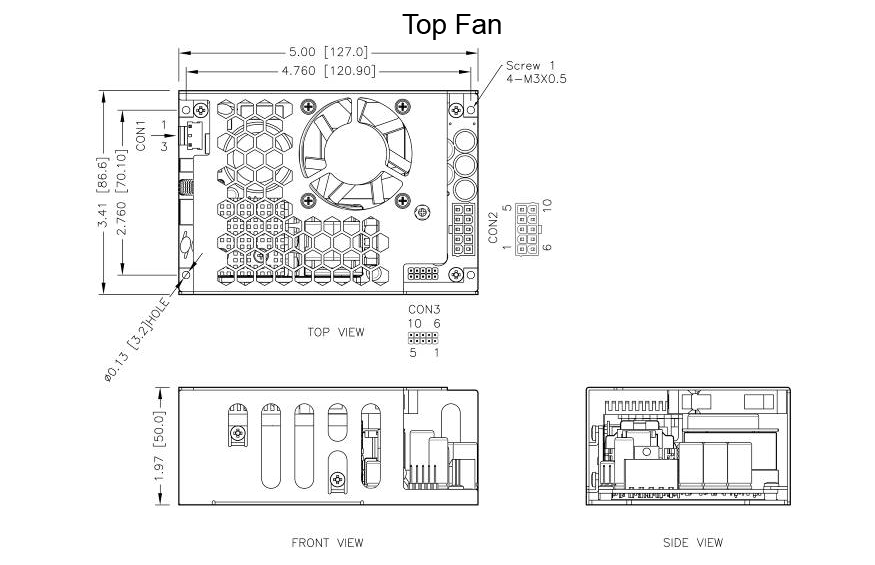

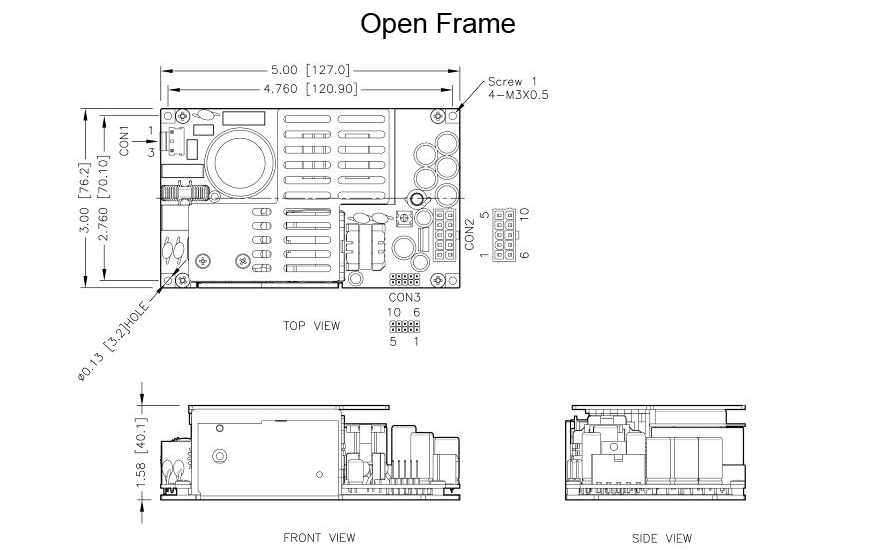

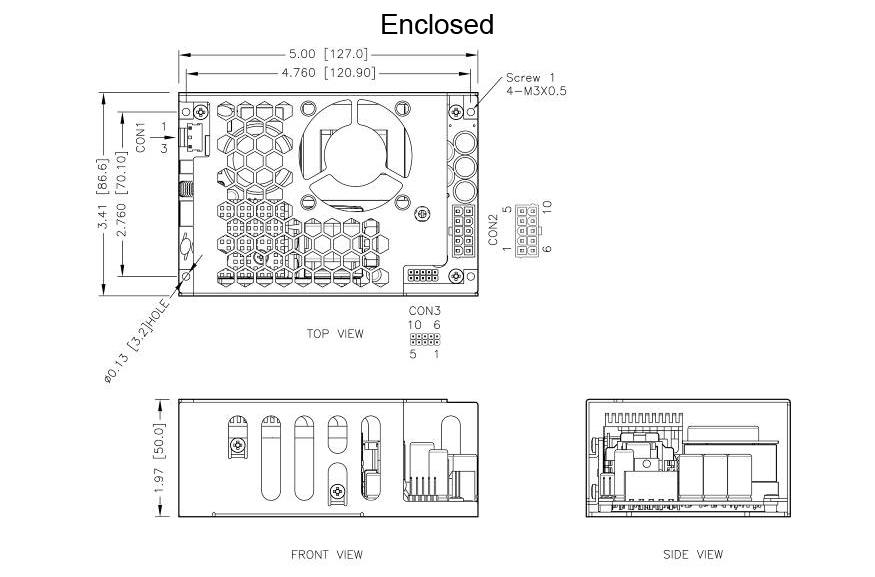

| Dimensions: | Open Frame Models: 5in x 3in x 1.58in (127mm x 76.2mm x 40.1mm) Enclosed Fan Connector Mode Models: 5in x 3.41in x 1.97in (127mm x 86.6mm x 50mm) Top Fan Models: 5in x 3.41in x 1.97in (127mm x 86.6mm x 50mm) Side Fan Models: 5.83in x 3.15in x 1.60in (148.2mm x 80mm x 40.6mm) |
| Notes & safety | |
| Notes: | 1. “x” in fan connector model numbers indicate either open frame or enclosed frame. “X” can either be “A” for open frame or “E” for enclosed case. No suffix on the model number indicates fan connector with fixed fan speed control. Add “Y” suffix to model number to indicate fan connector with variable fan speed control. Ex: PSMAC450-12SEY 2. The fan options for this series are as follows. Please note that top and side fan options are available for enclosed models only: F1: Fixed Fan Speed, Top Fan F2: Fixed Fan Speed, Side Fan Y1: Variable Fan Speed, Top Fan Y2: Variable Fan Speed, Side Fan 3. For optimum EMI performance, the power supply should be mounted to a metal plate grounded to all 4 mounting holes of the power supply. To comply with safety standard, this plate must be properly grounded to protective earth. 4. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | IEC/EN/ANSI/AAMI ES 60601-1, IEC/EN/UL 60950-1, 62368-1 |
| RoHS Compliance: | Yes |
